Analysis elements: K(No.19)~U(No.92)
Analyze up to 30 elements at the same time.
Rhenium and tungsten detection warning
Test Sample: metal
Analysis range: 0.050%~99.999%
Precision: ±0.10% (9999 gold)
Support the multi-point continuous test with high efficiency.
Connect the scale for weight readings and calculate prices.
Visible samples with lead glass

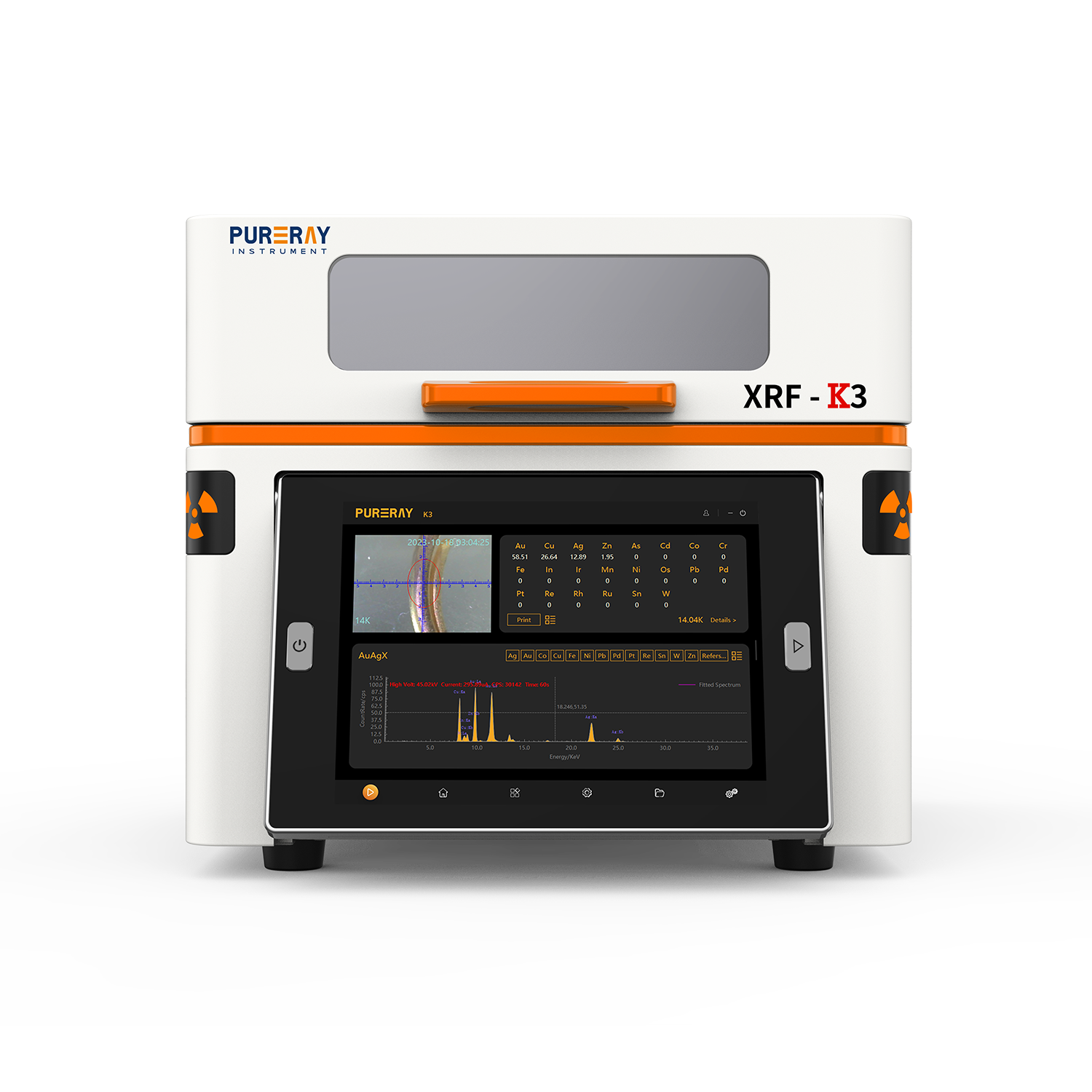

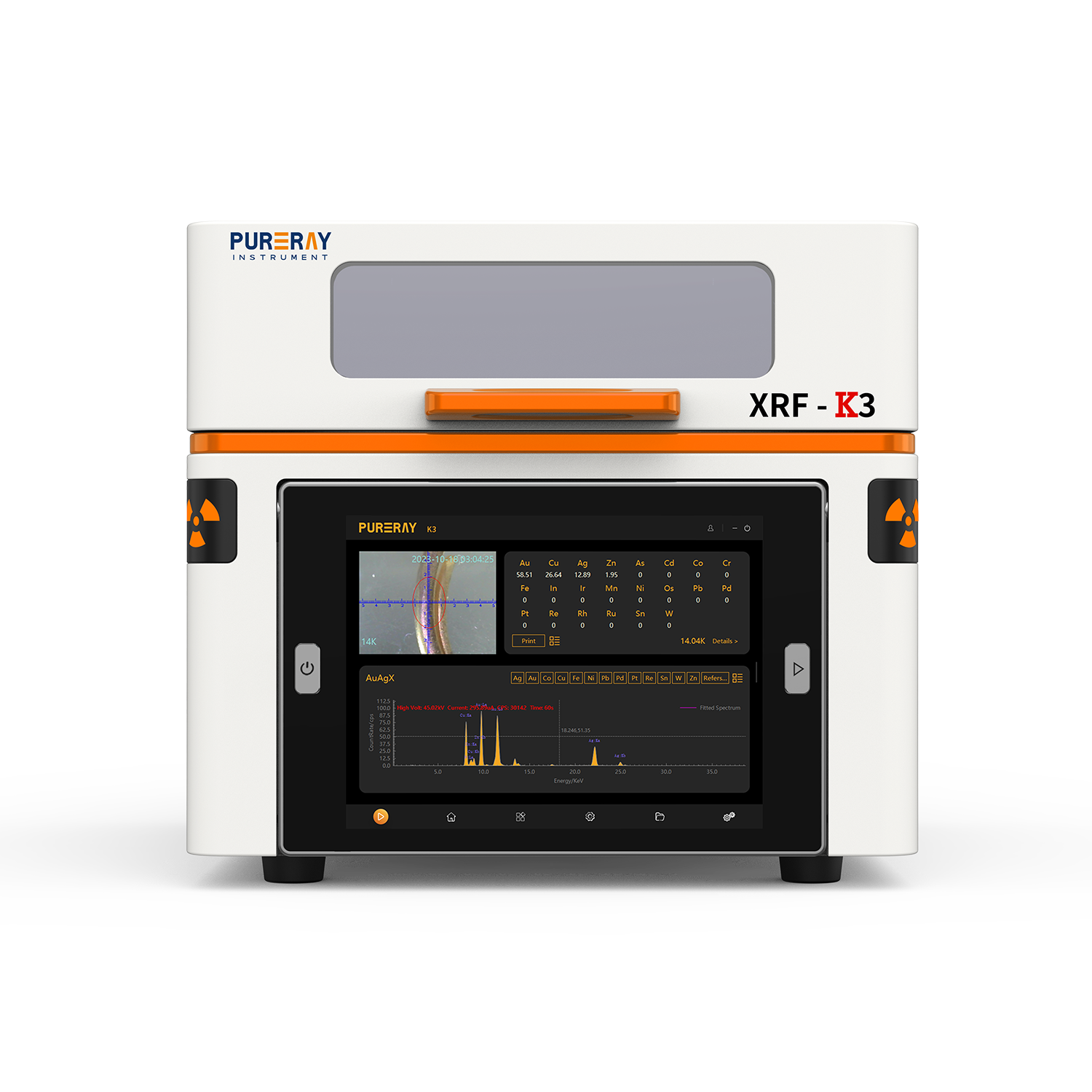

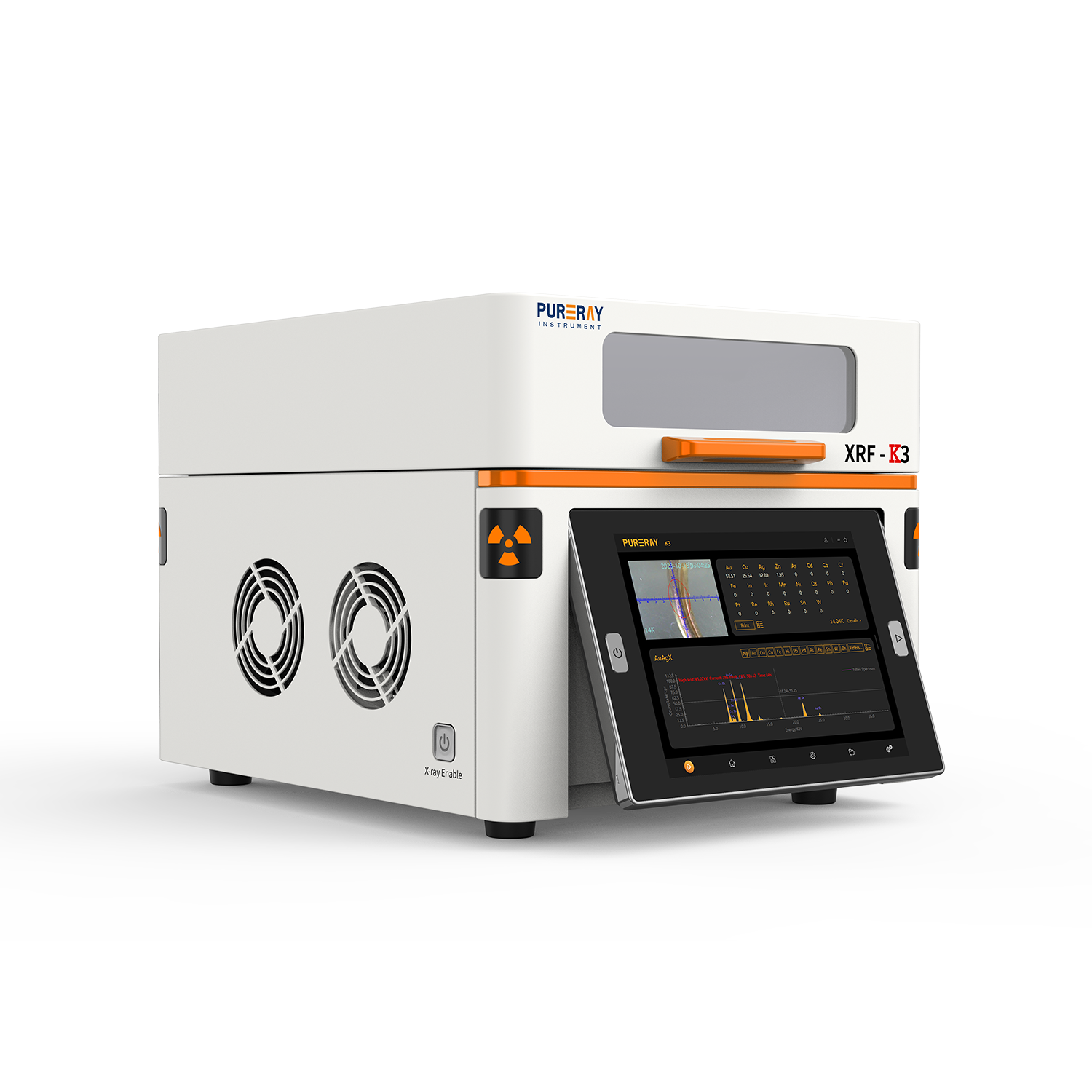

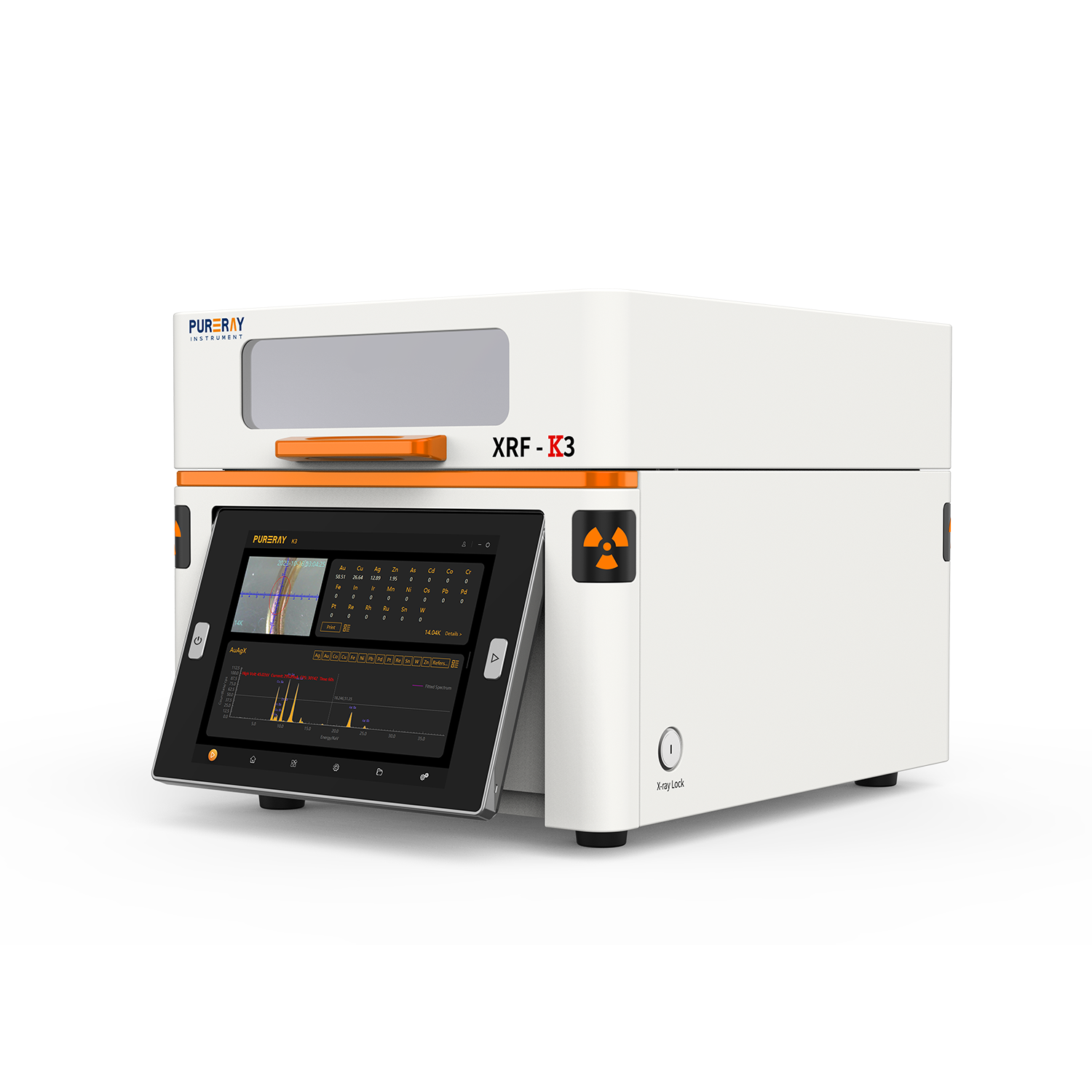

XRF-K3 precious metal analyzer is an X-ray fluorescence spectrometer made by PURERAY Instrument and which can be widely used in jewelry recycling, jewelry factories, hallmarking center, banks and other industries. The instrument adopts a Si-PIN detector, an embedded computer with a Dual-core CPU and a touchscreen monitor. It applies the 45° angle optical path and the Smart FP algorithm. This cost-effective spectrometer provides the fast analysis.
| Detector | Si-PIN | Collimator | Φ2.5mm |
|---|---|---|---|
| Detector area: 6mm2 | Input Voltage | AC110~260V, 50Hz | |
| Resolution:500±50eV | Package size | 566*531*560mm | |
| Embedded computer | Intel Celeron 2-core | Machine size | 350*442*318mm |
| HV power supply | 50KV/1mA digital HV | Test chamber size | 297*294*80mm |
| X-ray tube | 50KV/1mA | Rated power | 150W |
| Window material： aluminium | Gross weight | 44KG | |
| Target material: wolfram | Net weight | 32KG | |
| Focus: Φ0.5mm | Noise | <65dB |
