High cost-effective | Non-destructive testing
Analysis elements : K(No.19)～U(No.92)
Max up to 30 elements could be analyzed at the same time
Analysis range: 0.010%～99.999%
Test Precision: ±0.03%(9999 gold)
Test sample : Precious metal alloy
Support connect scale solution to get the value of weight
Coating warning
Rhenium and tungsten detection warning
Supporting multi-point continuous test, high test efficiency
Software interface is simple and intuitive, supports a variety of customized reports

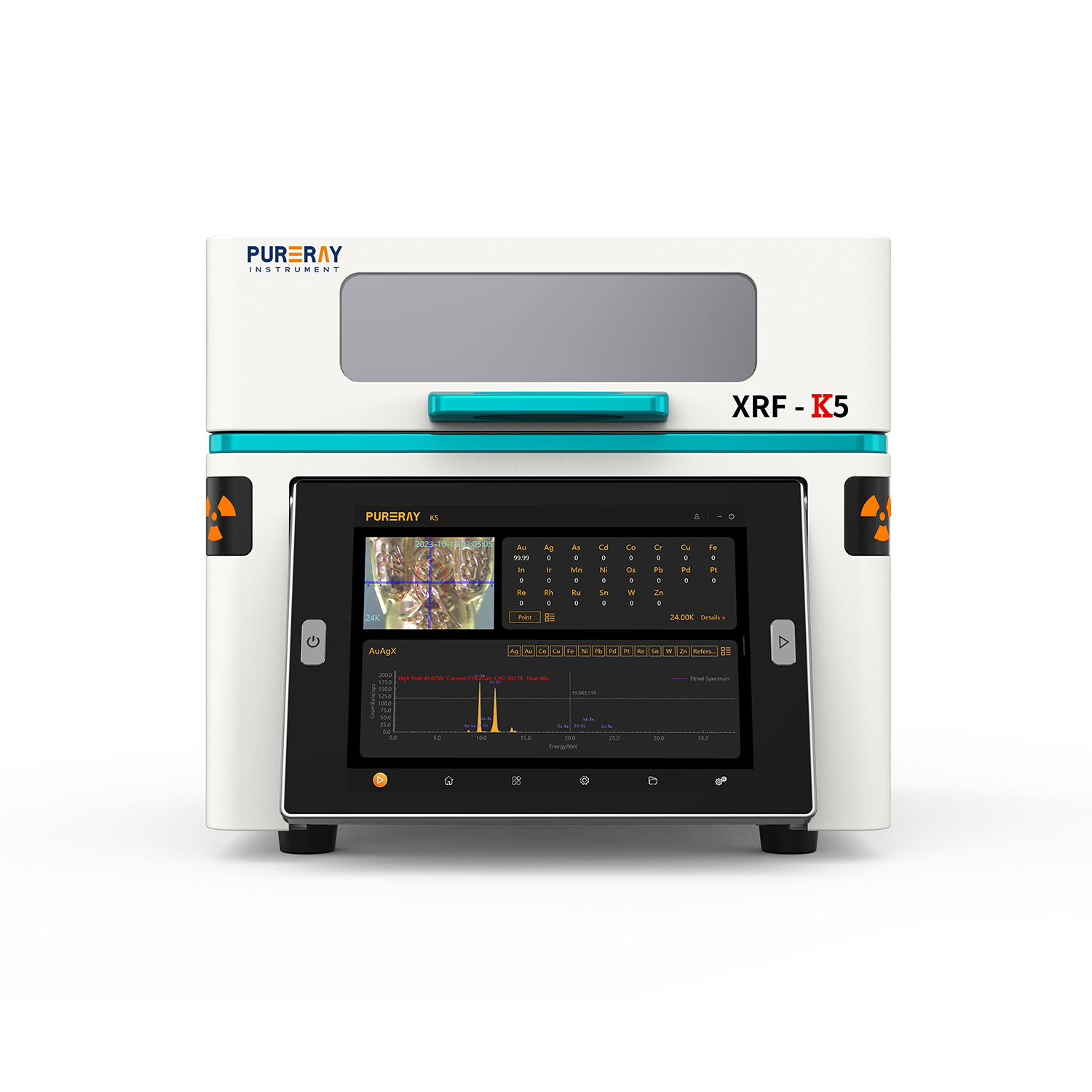

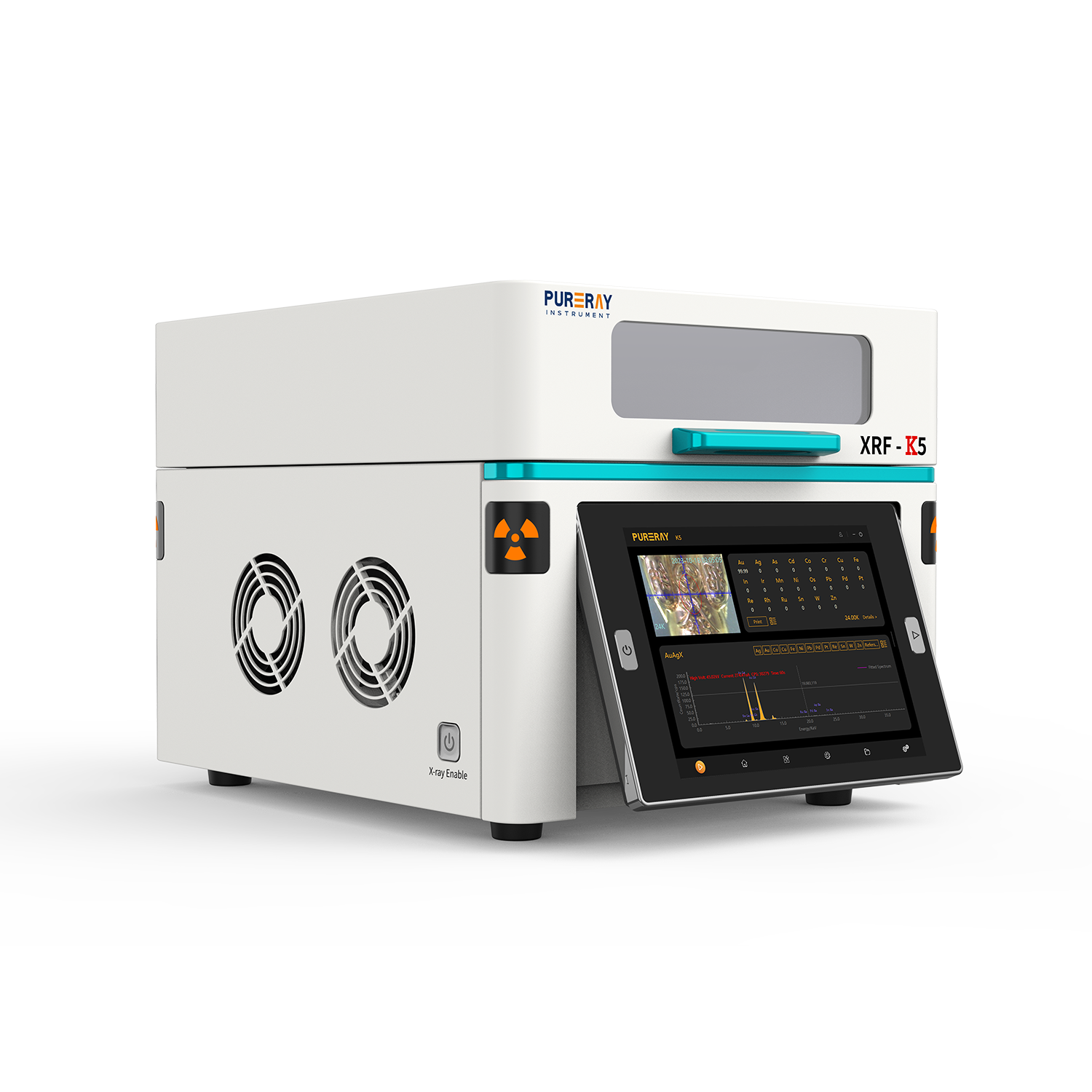

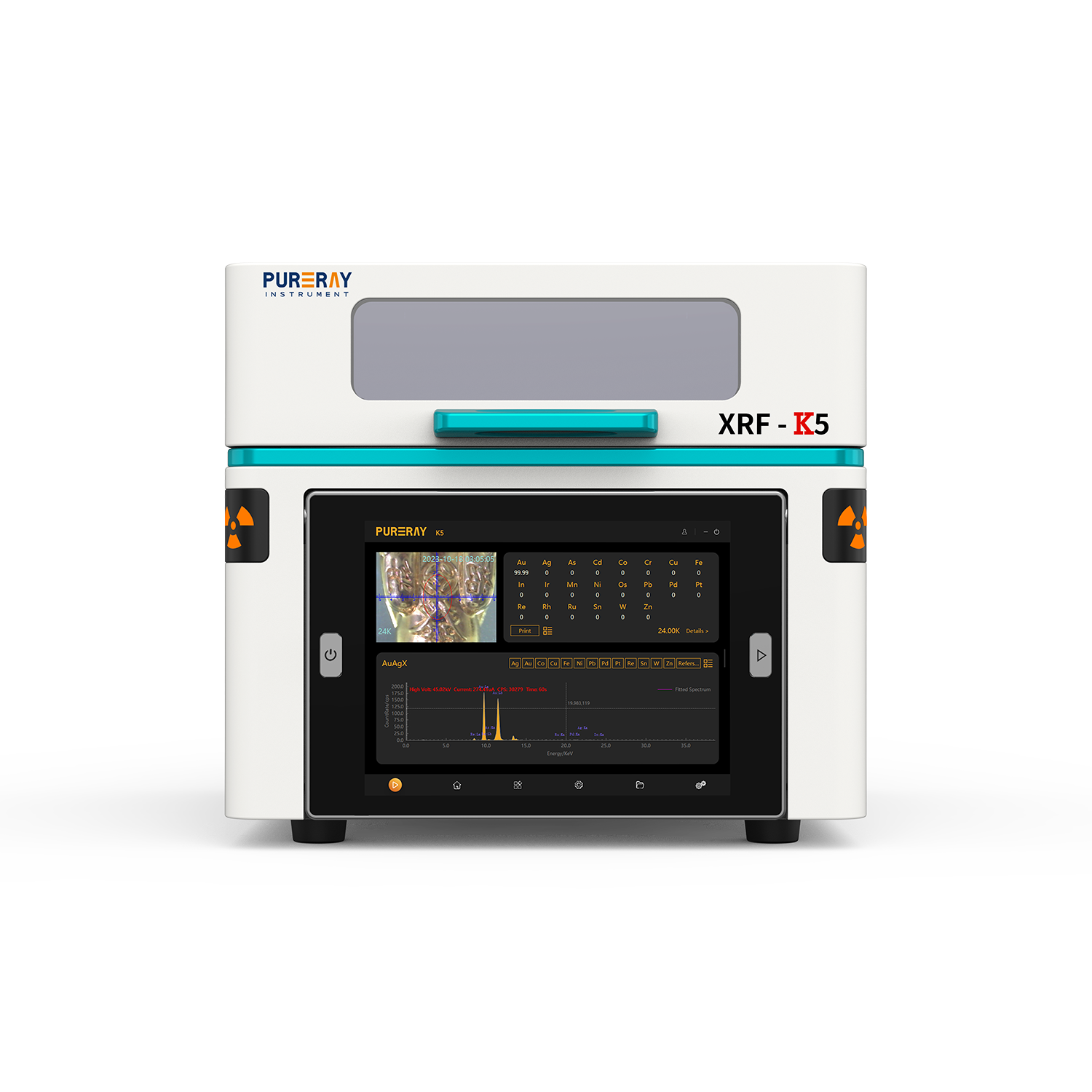

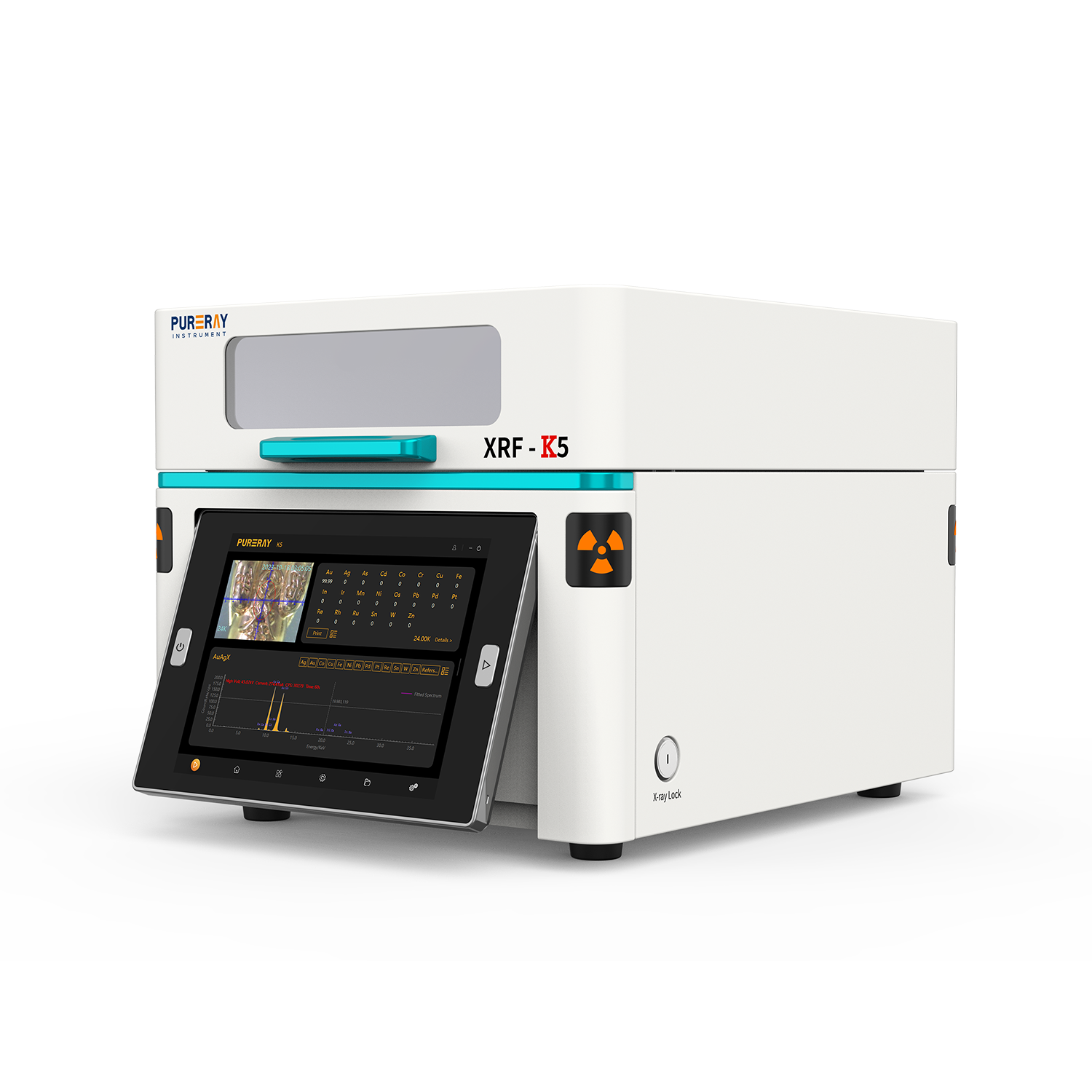

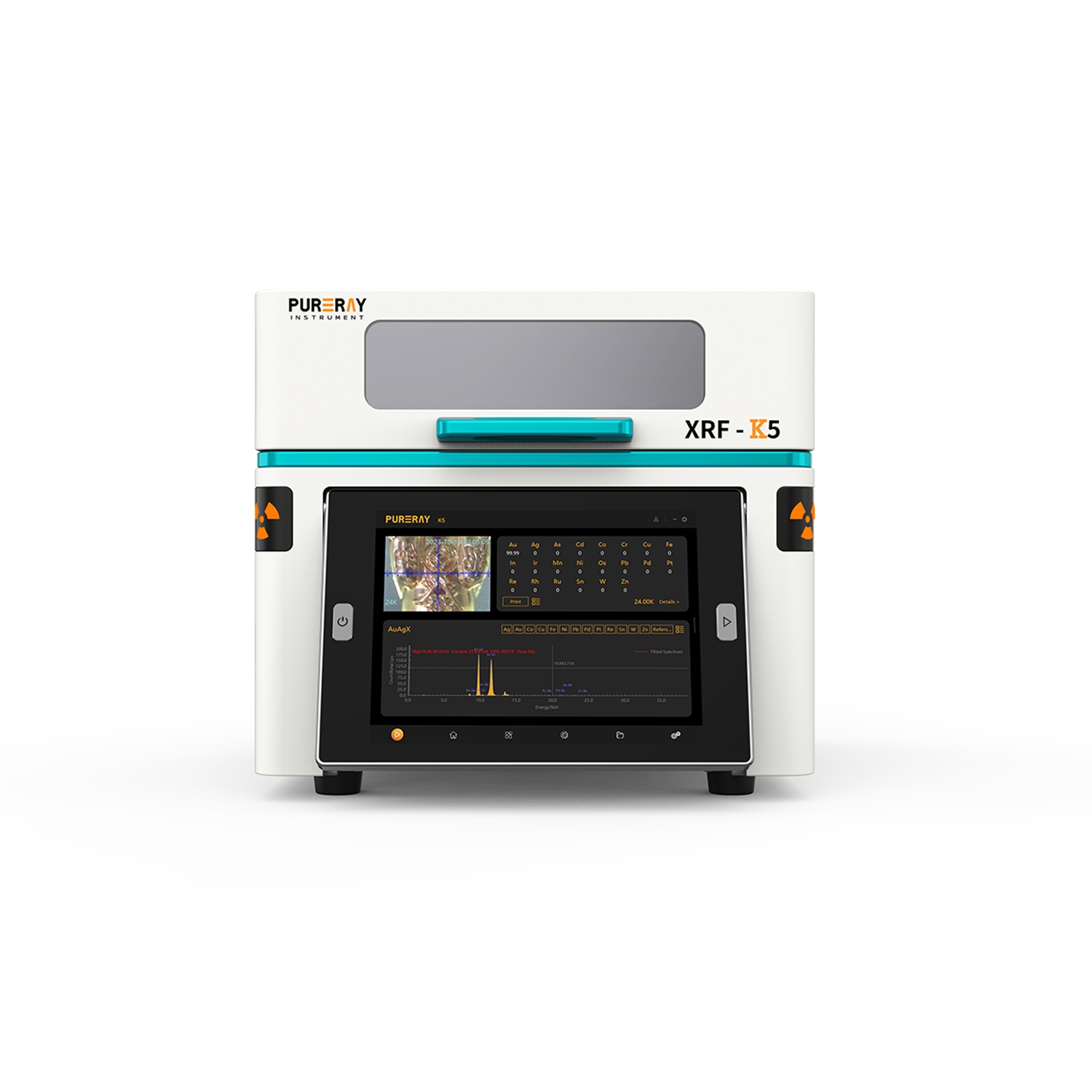

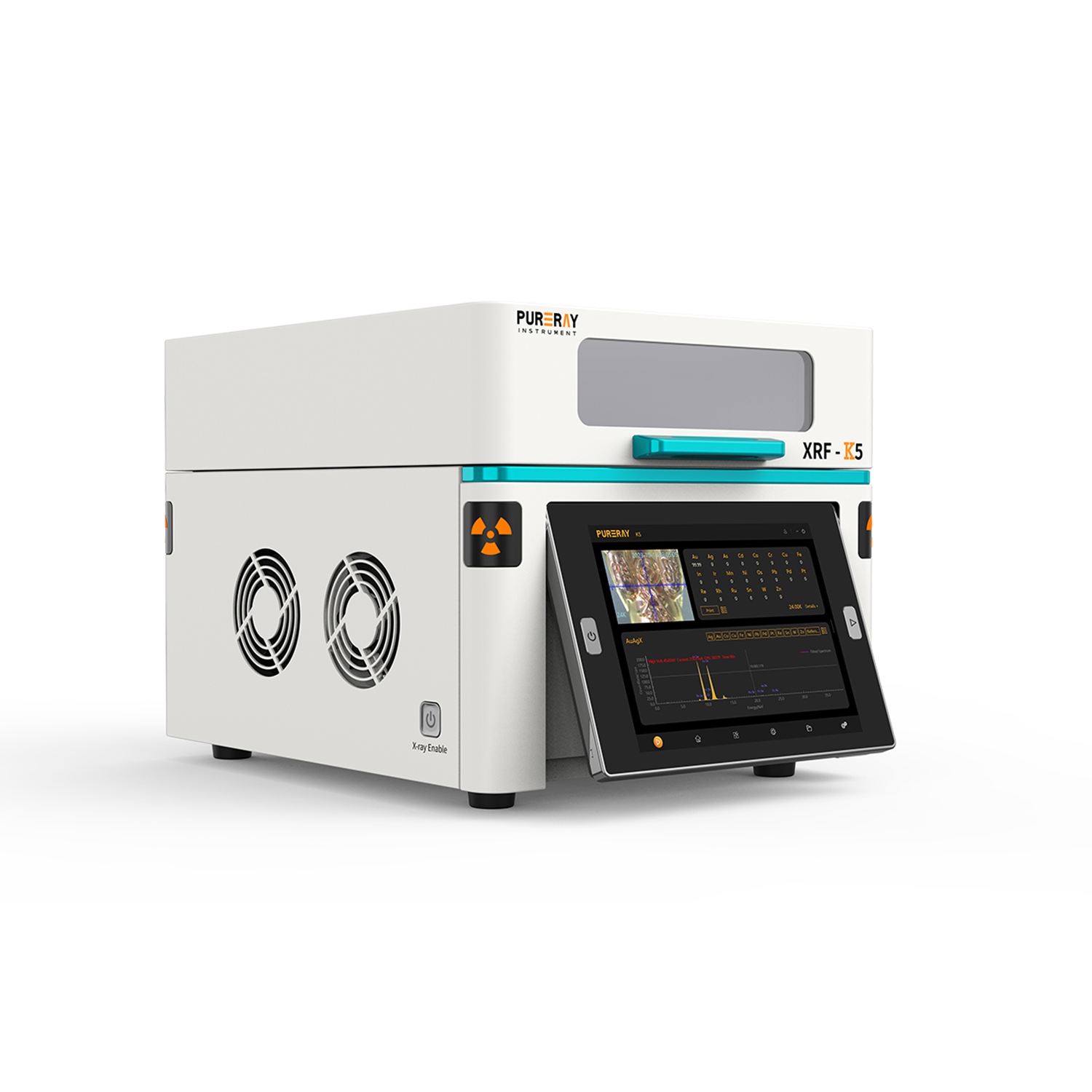

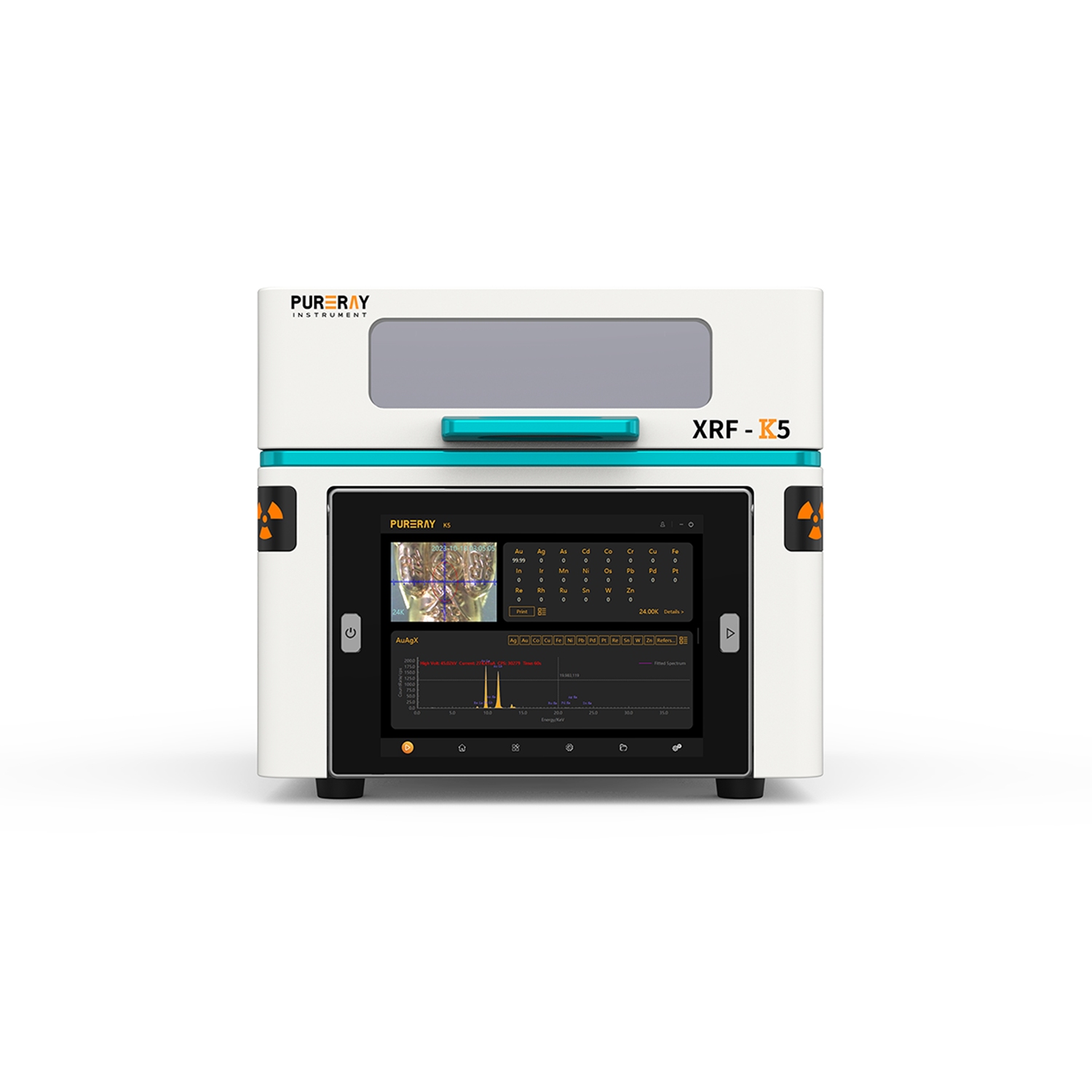

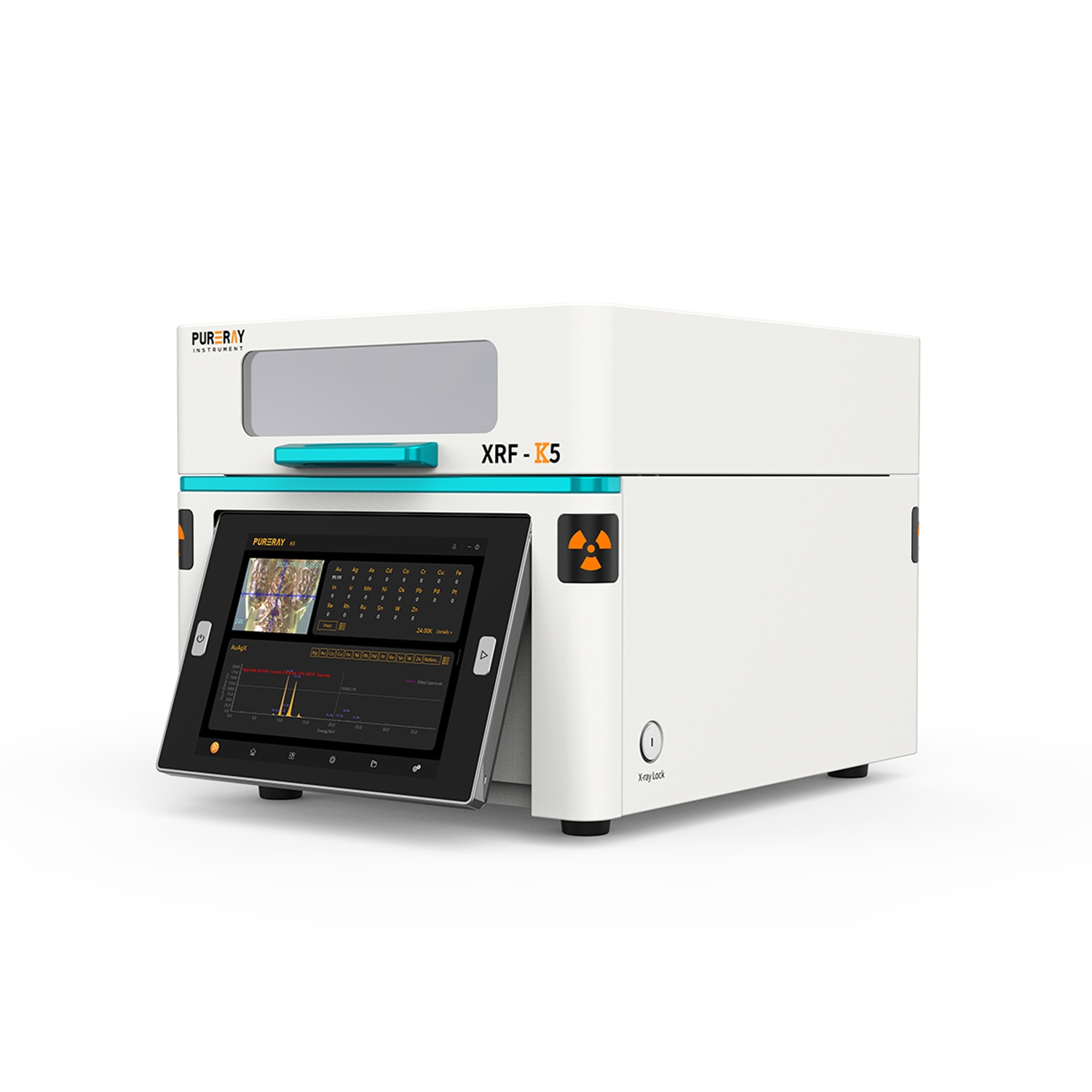

XRF-K5 precious metal analyzer is an X-ray fluorescence spectrometer made by PURERAY Instrument and which can be widely used in jewelry recycling, jewelry factories, hallmarking center, banks and other industries. The instrument adopts an USA AMPTEK Si-PIN detector, an embedded computer with a 10-core CPU and a touchscreen monitor. It applies the 45° angle optical path and the Smart FP algorithm. The cost-effective spectrometer provide the fast and accurate analysis.
| Detector | USA AMPTEK customized Si-PIN | Collimator | Φ2.5mm |
|---|---|---|---|
| Detector area: 6mm2 | Input Voltage | AC110～260V，50Hz | |
| Resolution:145±5eV | Package size | 566*531*560mm | |
| Embedded computer | Intel i3 10-core | Machine size | 350*442*318mm |
| HV power supply | 50KV/1mA digital HV | Test chamber size | 297*294*80mm |
| X-ray tube | 50KV/1mA | Rated power | 150W |
| Window material： aluminium | Gross weight | 44KG | |
| Target material: wolfram | Net weight | 32KG | |
| Focus: Φ0.5mm | Noise | <65dB |
