Quick response service | One-to-one service
Analysis range: S(No.16)~U(No.92)
Analyze up to 30 elements at the same time.
RoHS 1.0 substances detection
Halogen detection
EN71 substances detection
Test sample: RoHS/base metal/liquid
Detection limit: 2ppm (ideal situation)
Precision: RSD≤2.5%
Support the multi-point continuous test with high efficiency.
Optional equipment: automatic tablet press machine

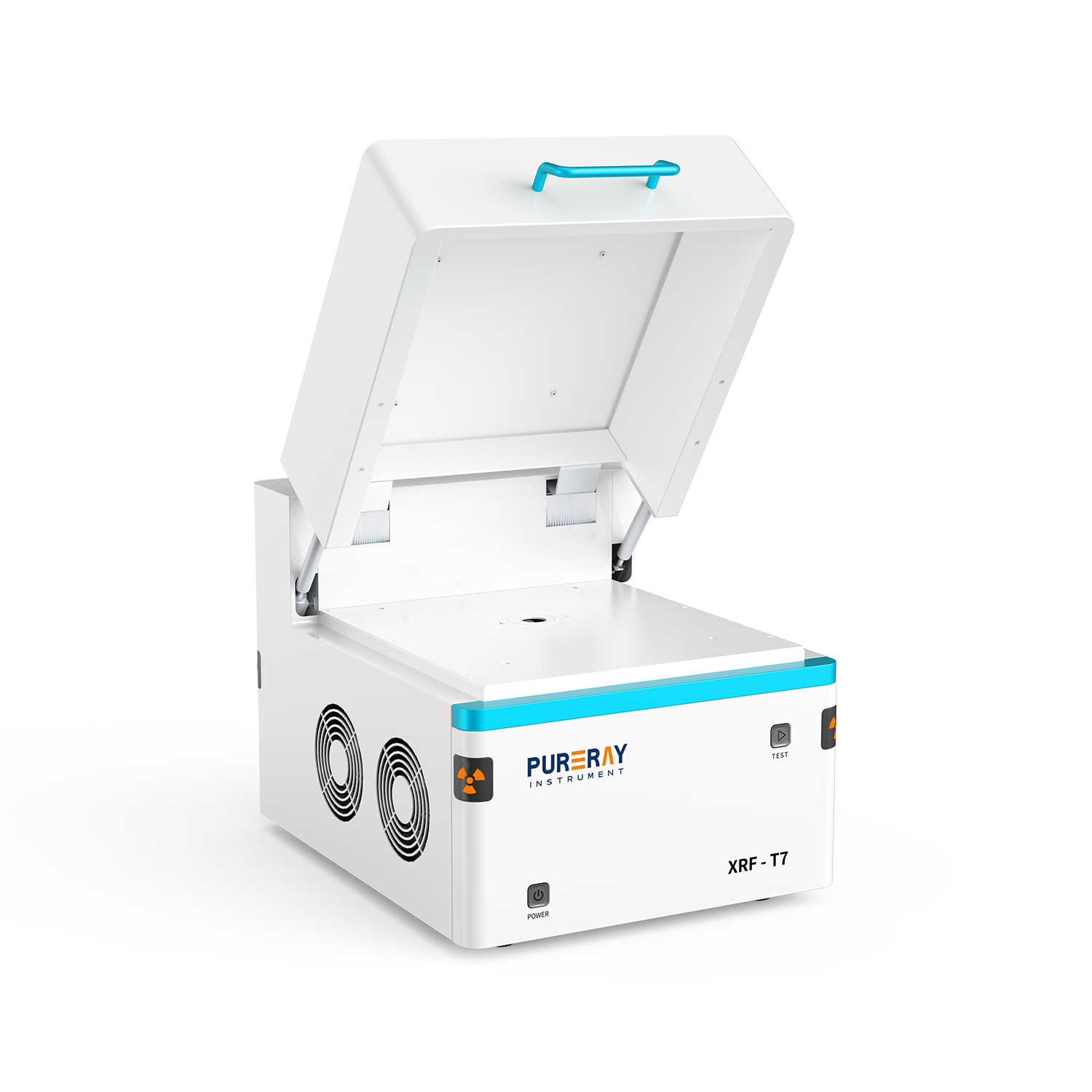

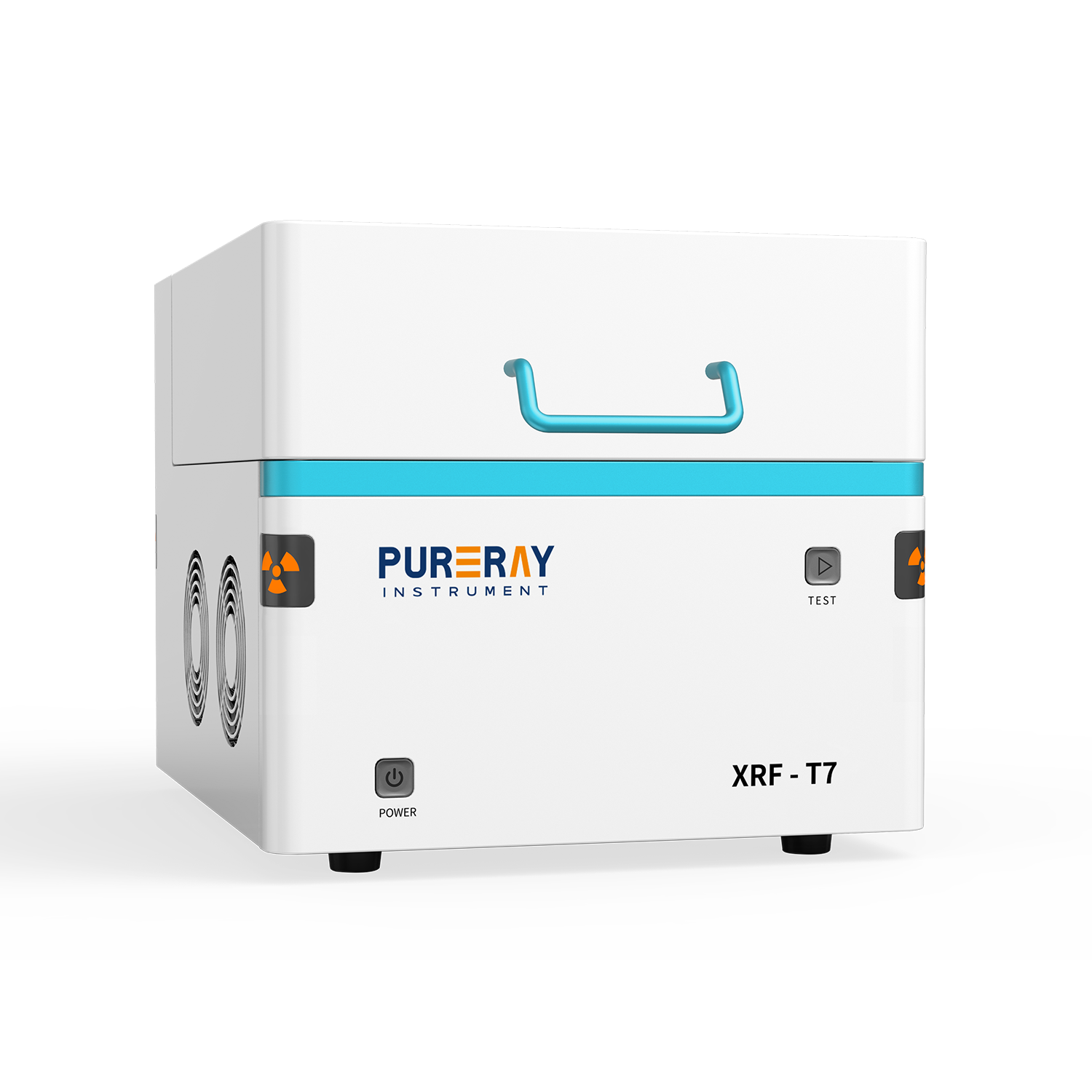

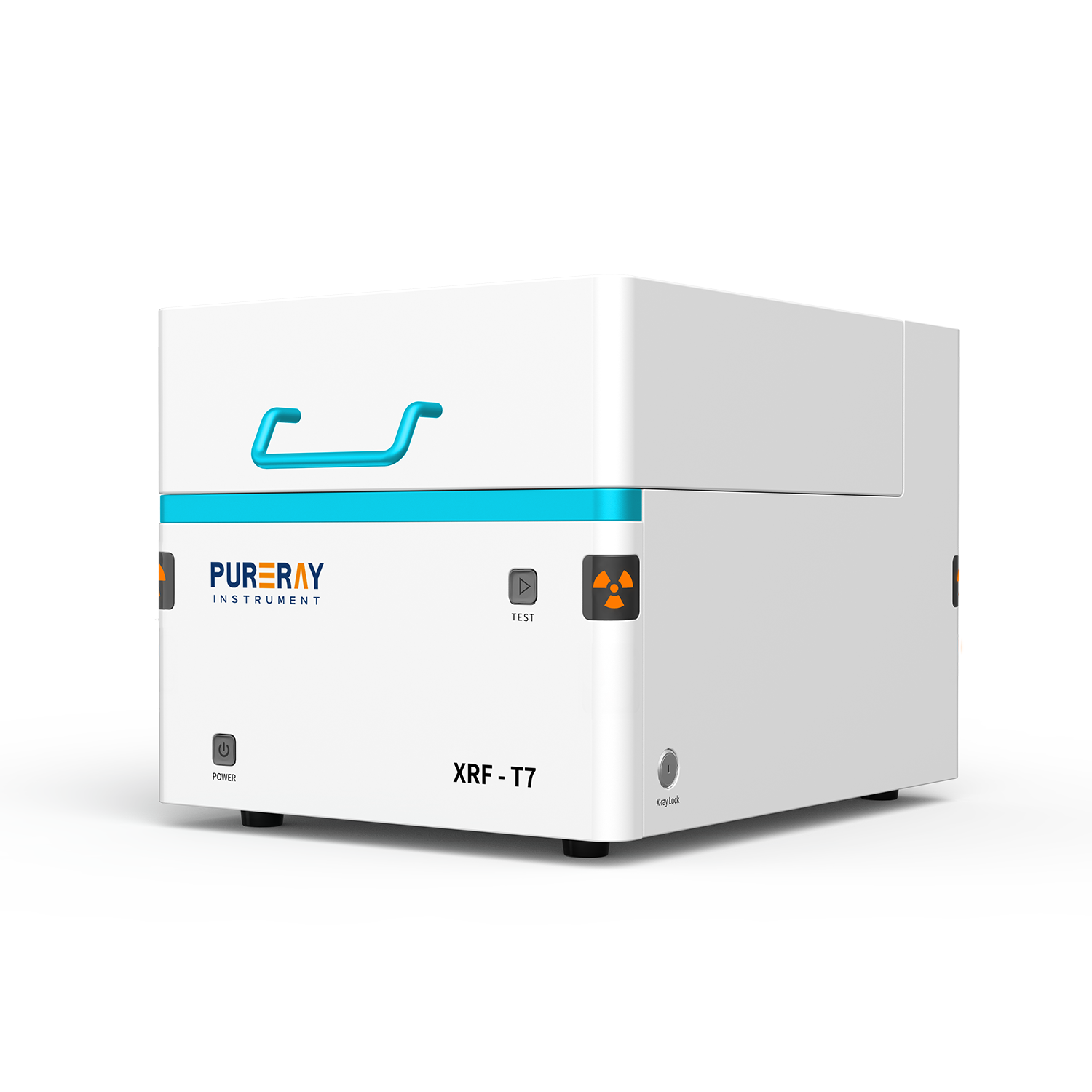

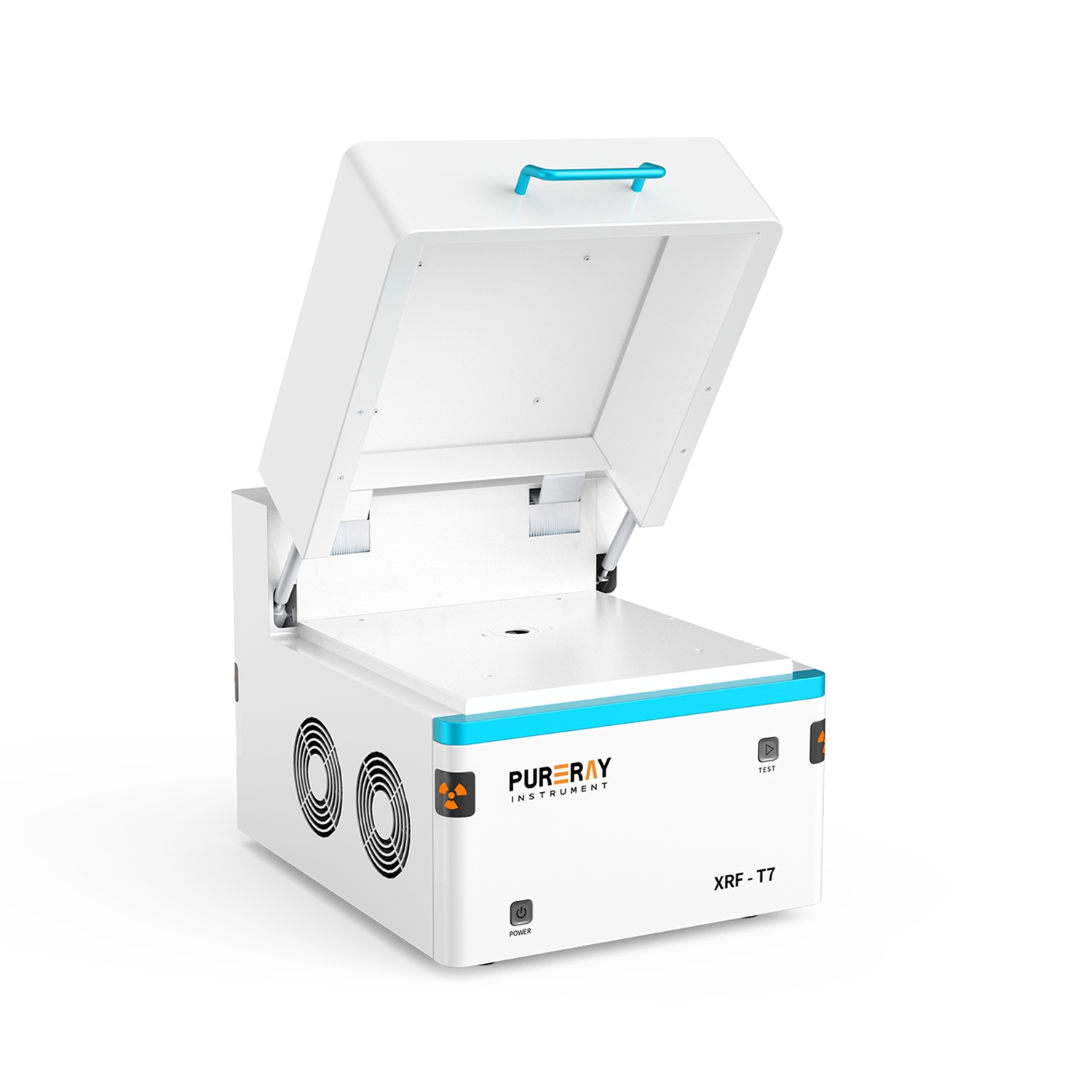

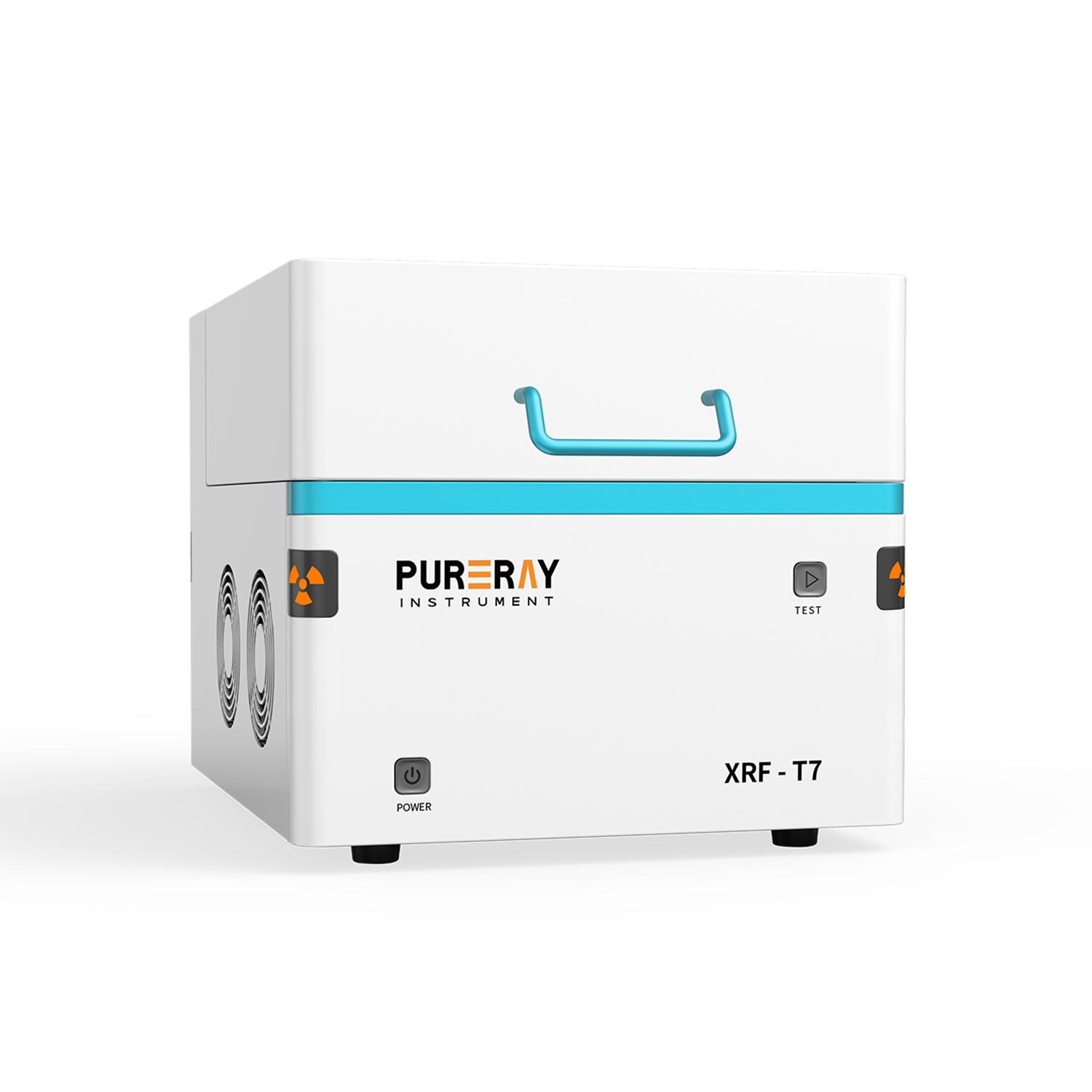

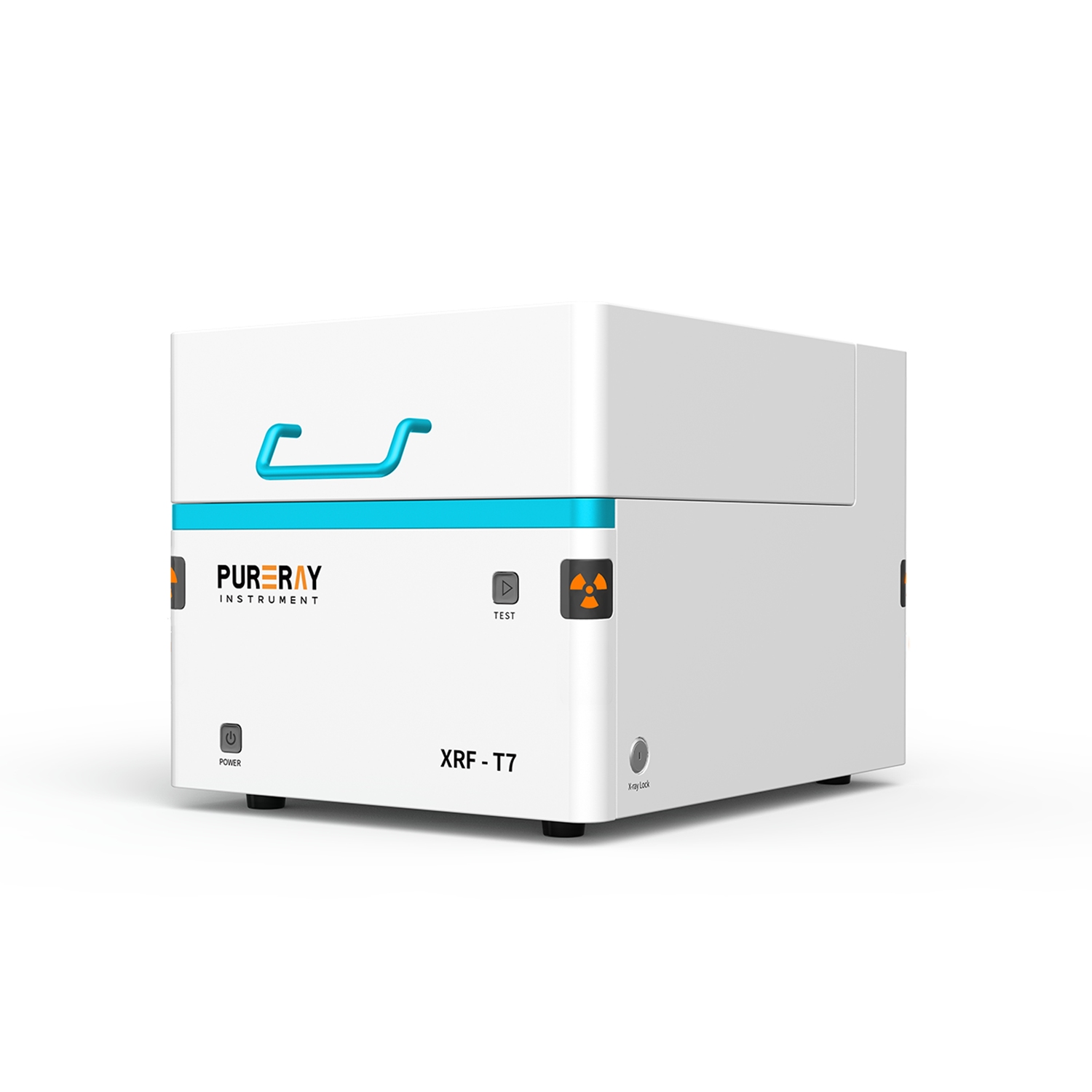

XRF-T7 is a RoHS analyzer which is designed for environmental directives such as RoHS, halogen-free and EN71. With an USA AMPTEK customized Si-PIN detector and the Smart FP algorithm, it can precisely detect hazardous substances such as lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBBs) and polybrominated diphenyl ethers (PBDEs) and analyze alloy and liquid. The cost-effective instrument offers fast and accurate testing.
| Detector | USA AMPTEK customized Si-PIN | Collimator | Φ3.0mm |
|---|---|---|---|
| Detector area: 6mm2 | Input Voltage | AC100～240V, 50Hz | |
| Resolution: 145±5eV | Package size | 615*555*480mm | |
| Embedded computer | Intel i3 10-core | Machine size | 400*546*368mm |
| HV power supply | 50KV/1mA digital HV | Test chamber size | 373*343*120mm |
| X-ray tube | 50KV/1mA | Rated power | 200W |
| Window material: beryllium | Gross weight | 58KG | |
| Target material: wolfram | Net weight | 43KG | |
| Focus: Φ1.0mm | Noise | <65dB |
