Analysis elements: K(No.19)~U(No.92)
Analyzed up to 30 elements at the same time.
Measure the thickness and composition of 4-layer coatings.
Coating warning
Rhenium and tungsten detection warning
Identify artificial and natural gemstones.
Test Sample: metal/liquid/gemstone/coating
Analysis range:
Precious metal: 0.010%~99.999%
Coating: 0.001um~80um
Liquid: 5mg/L~200g/L
Precision:
Precious metals: ±0.01% (9999 gold)
Coating thickness: RSD≤1.5%
Liquid: RSD≤1.5%
Comply with ISO23345 and ISO3497.

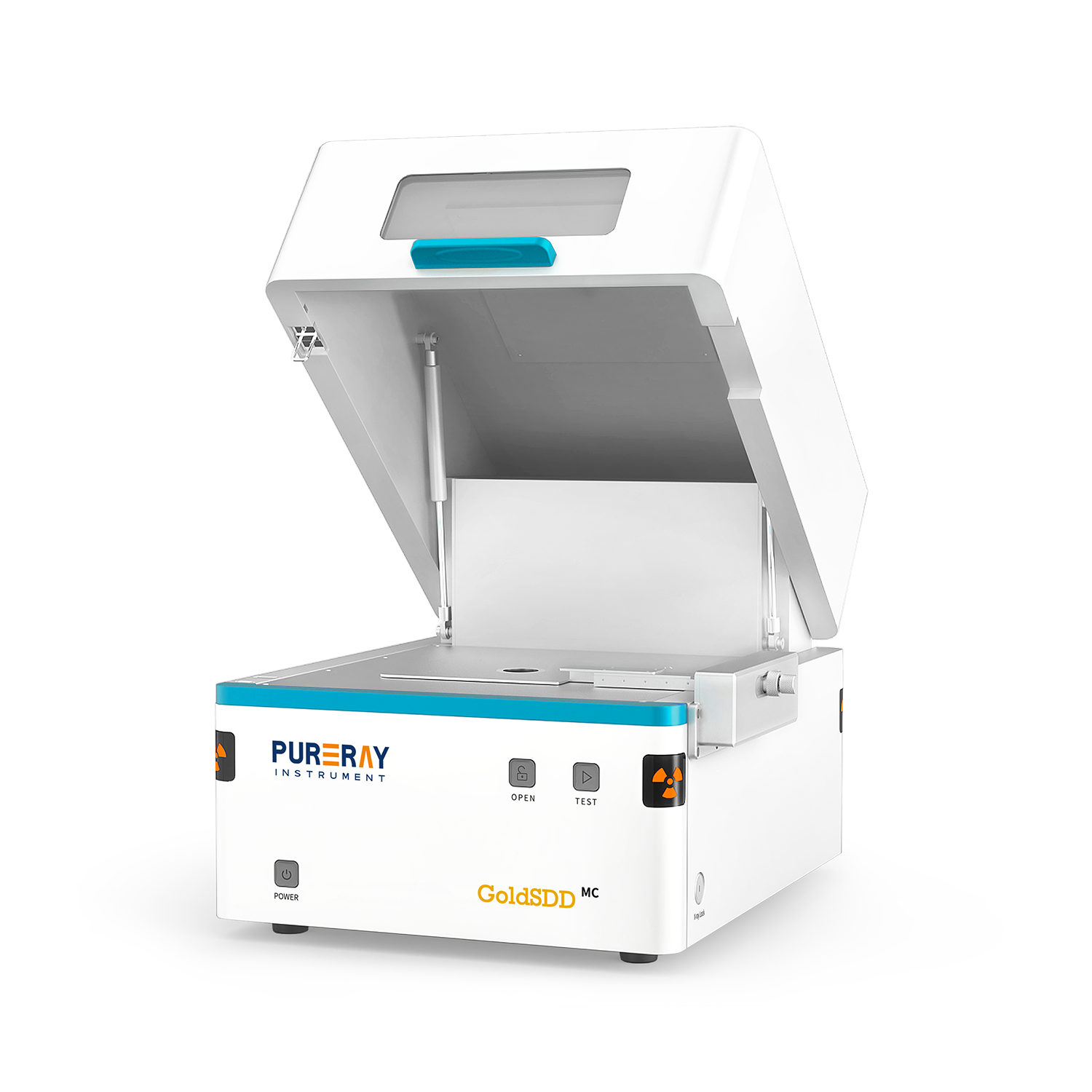

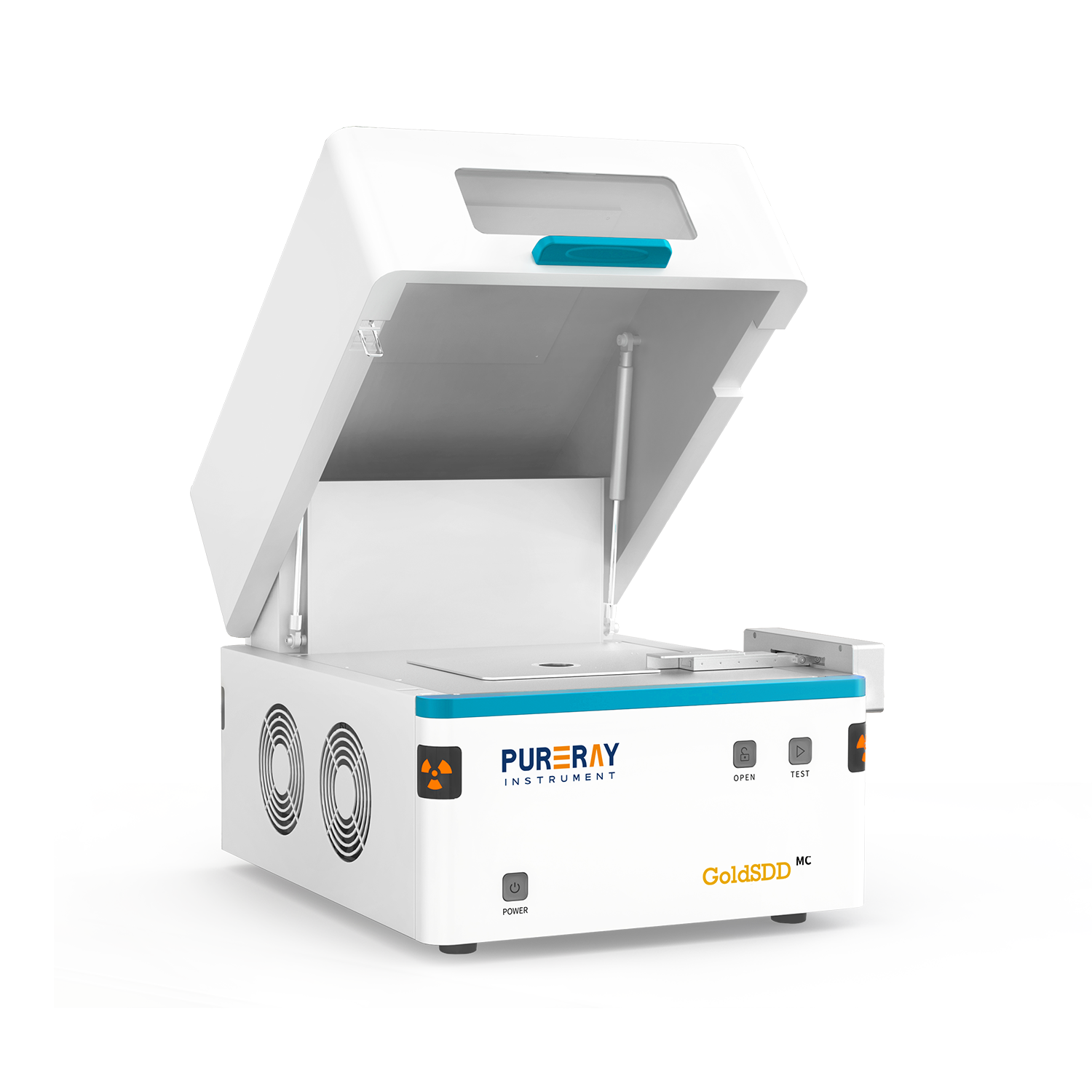

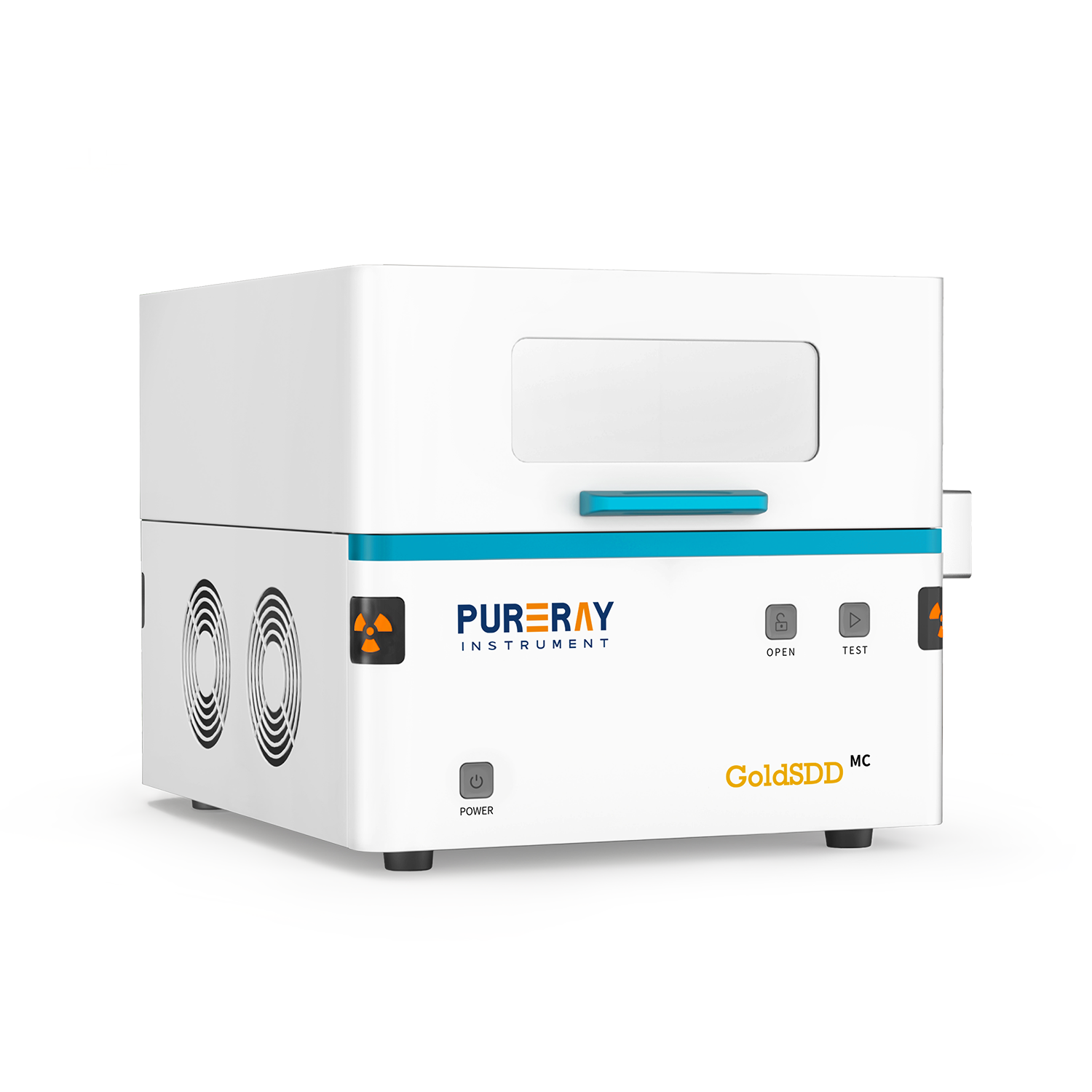

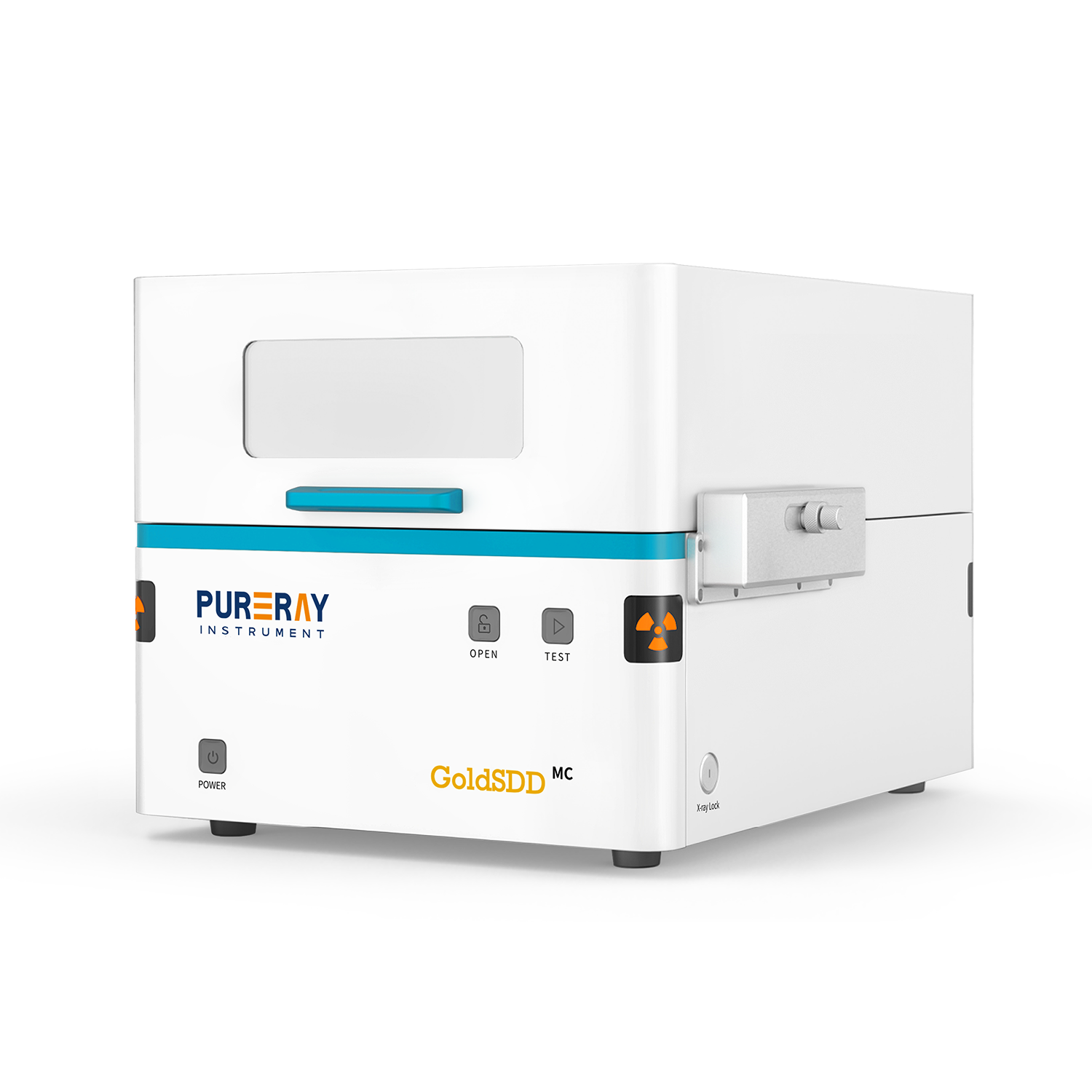

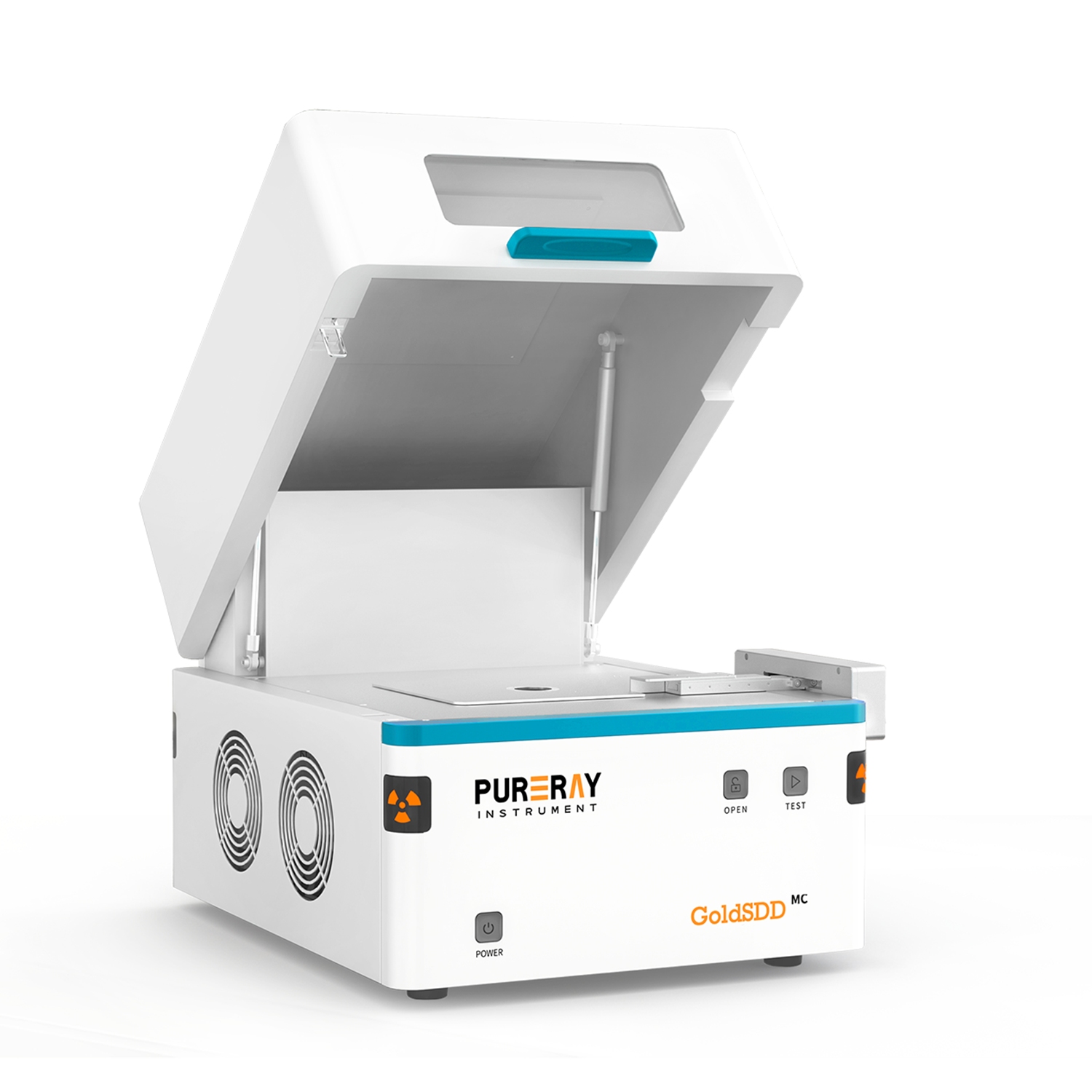

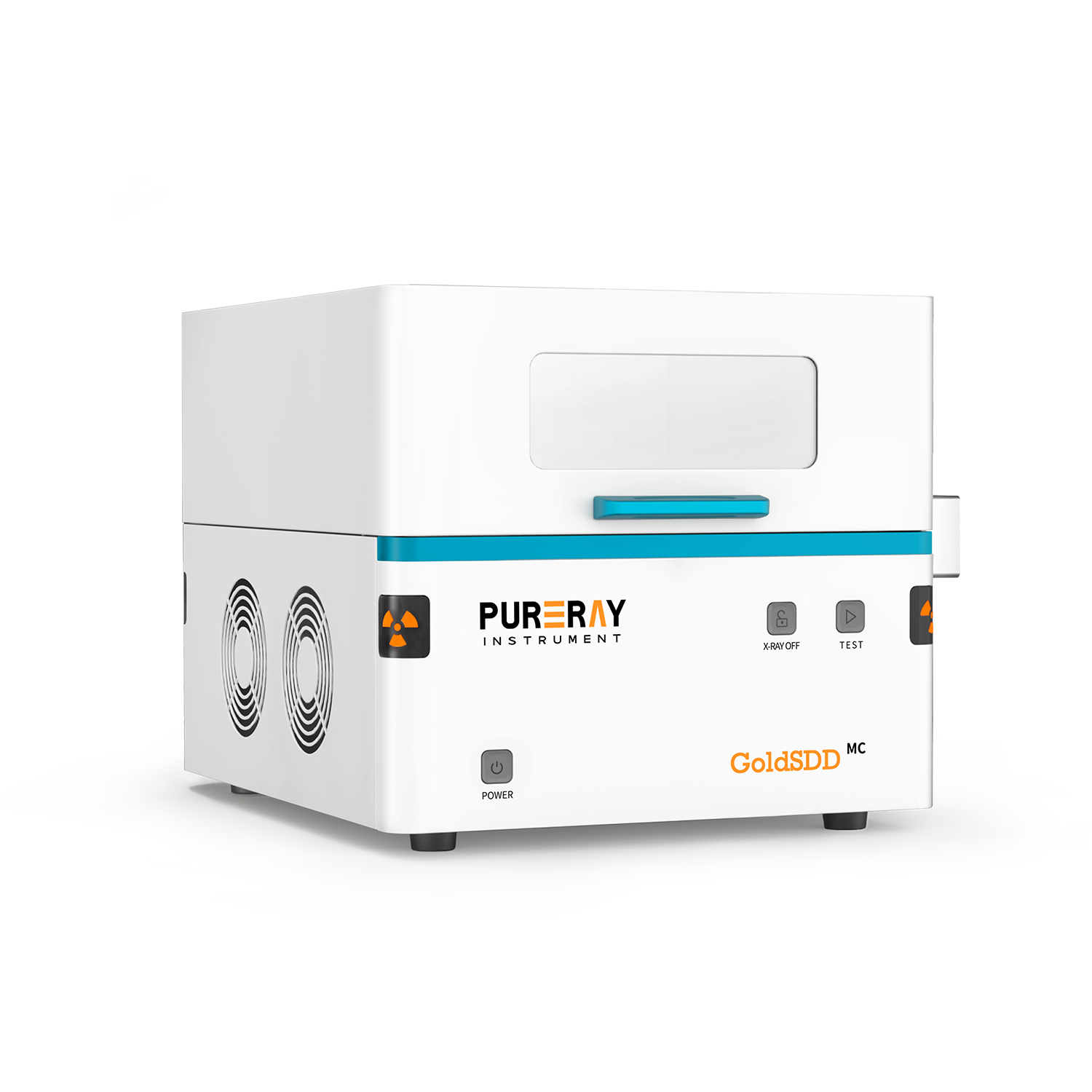

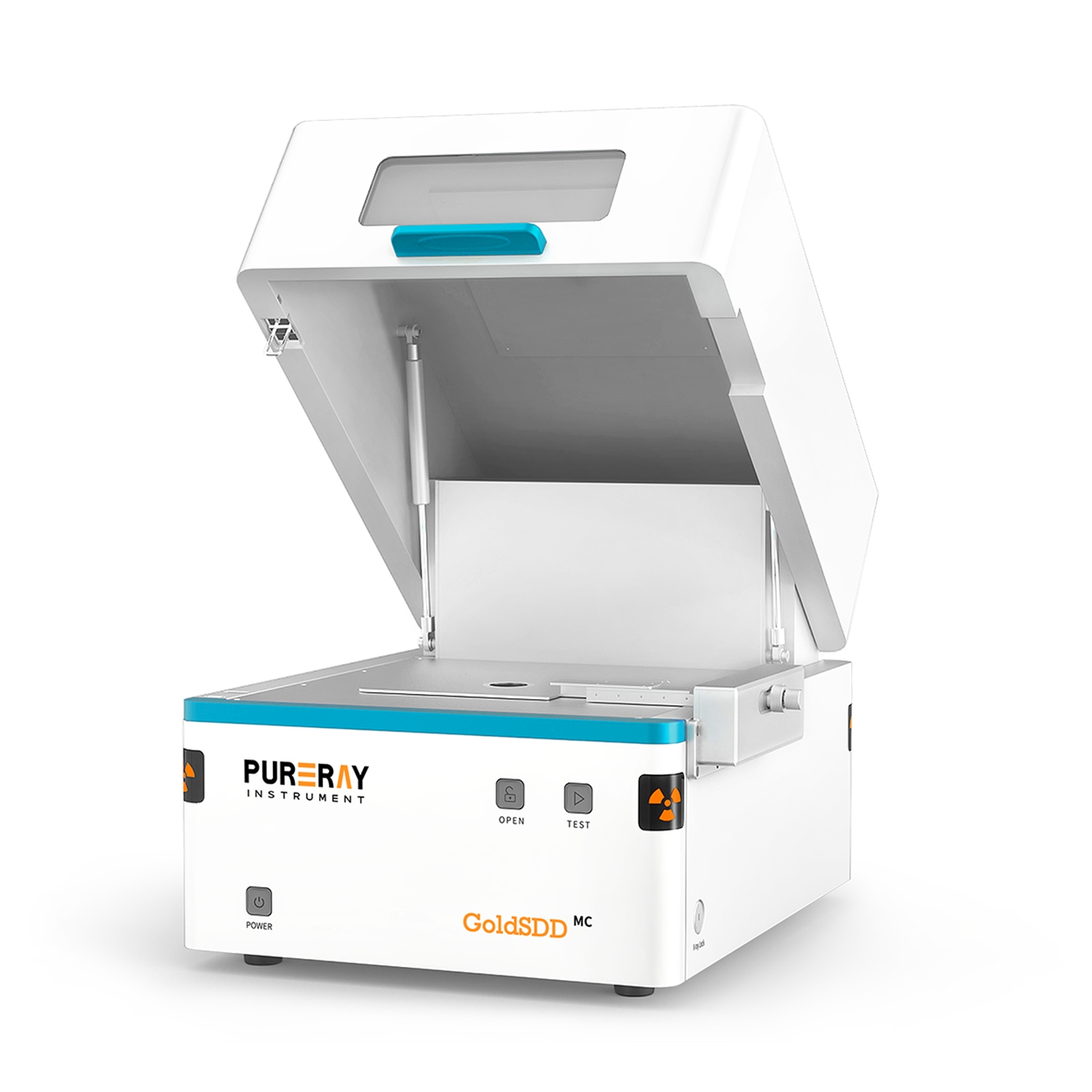

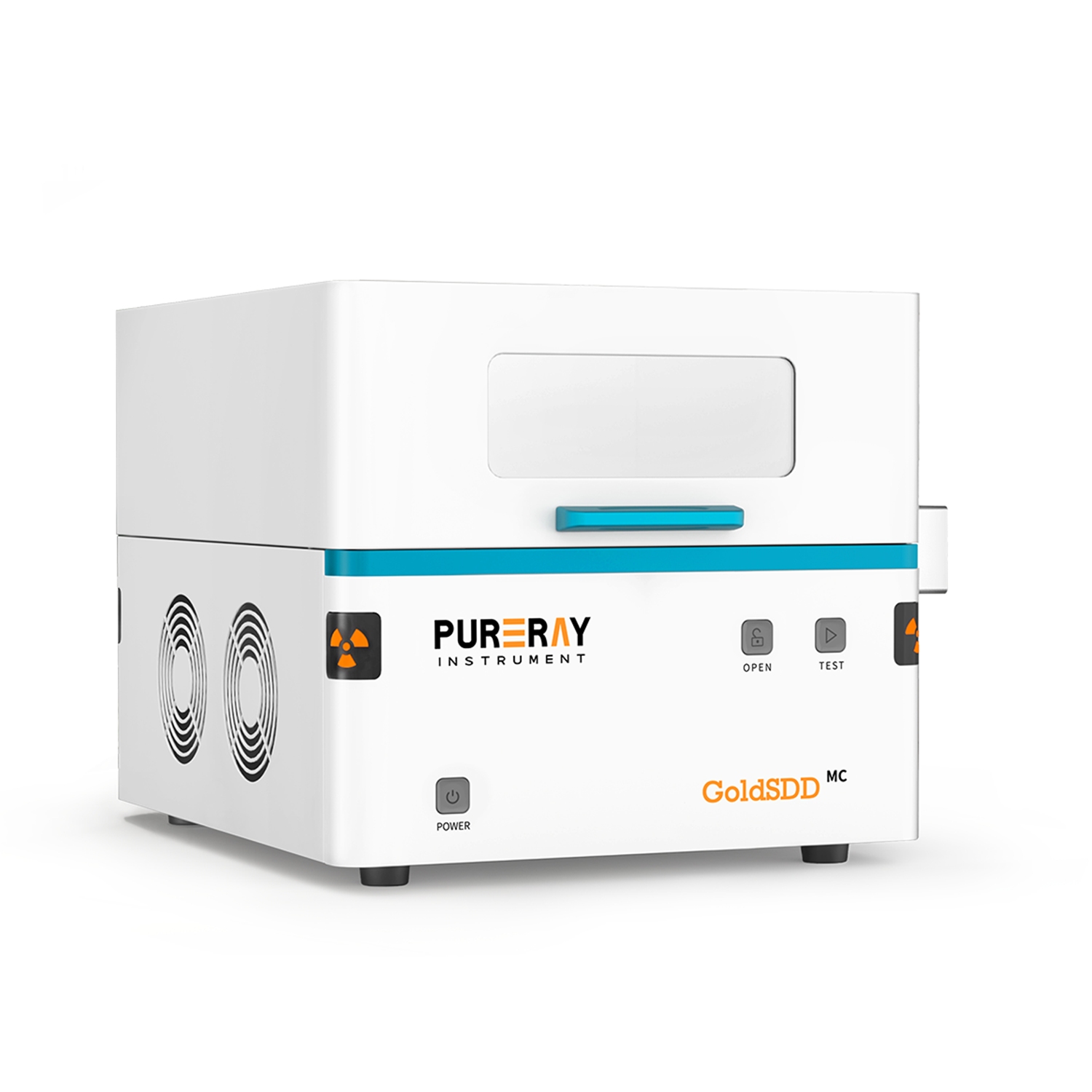

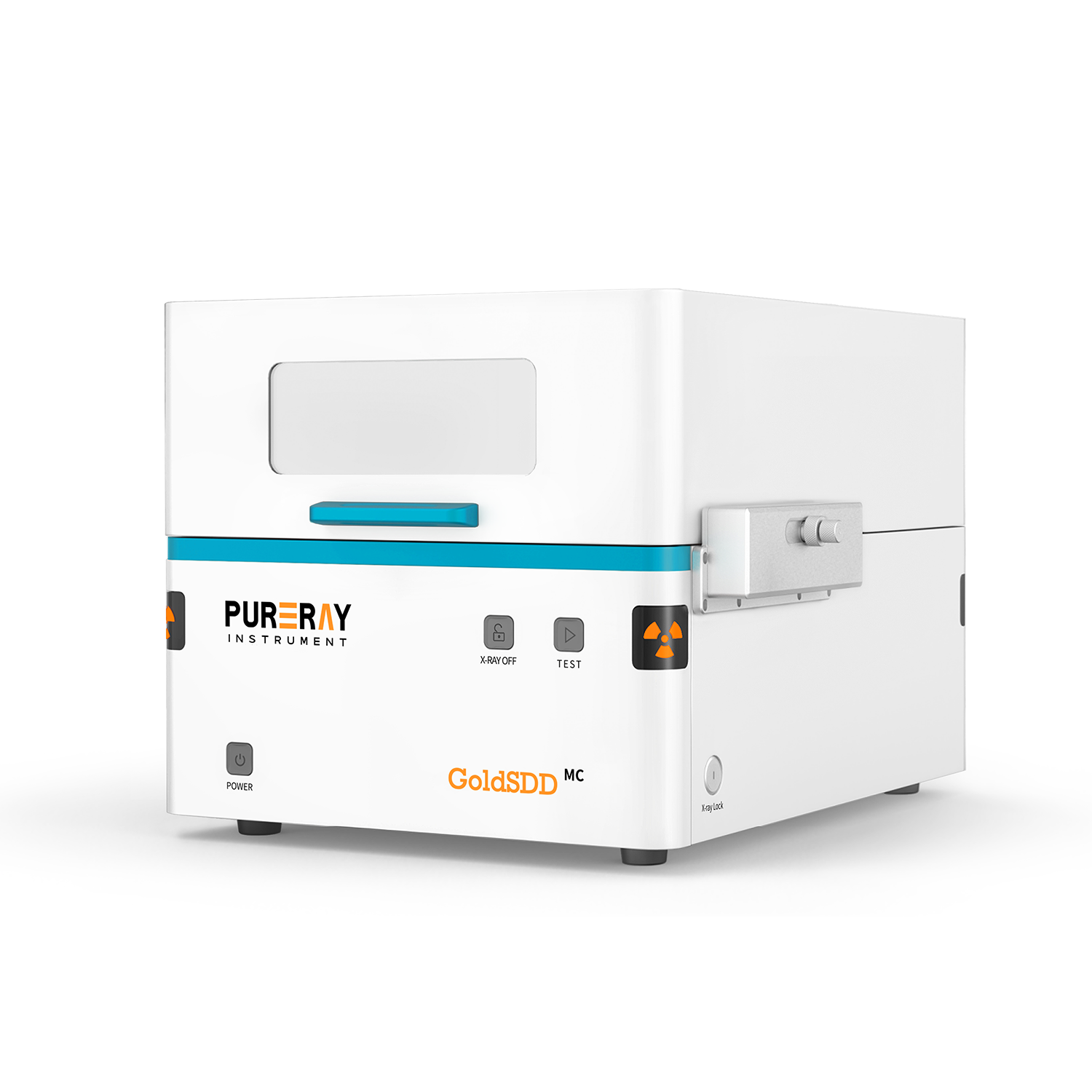

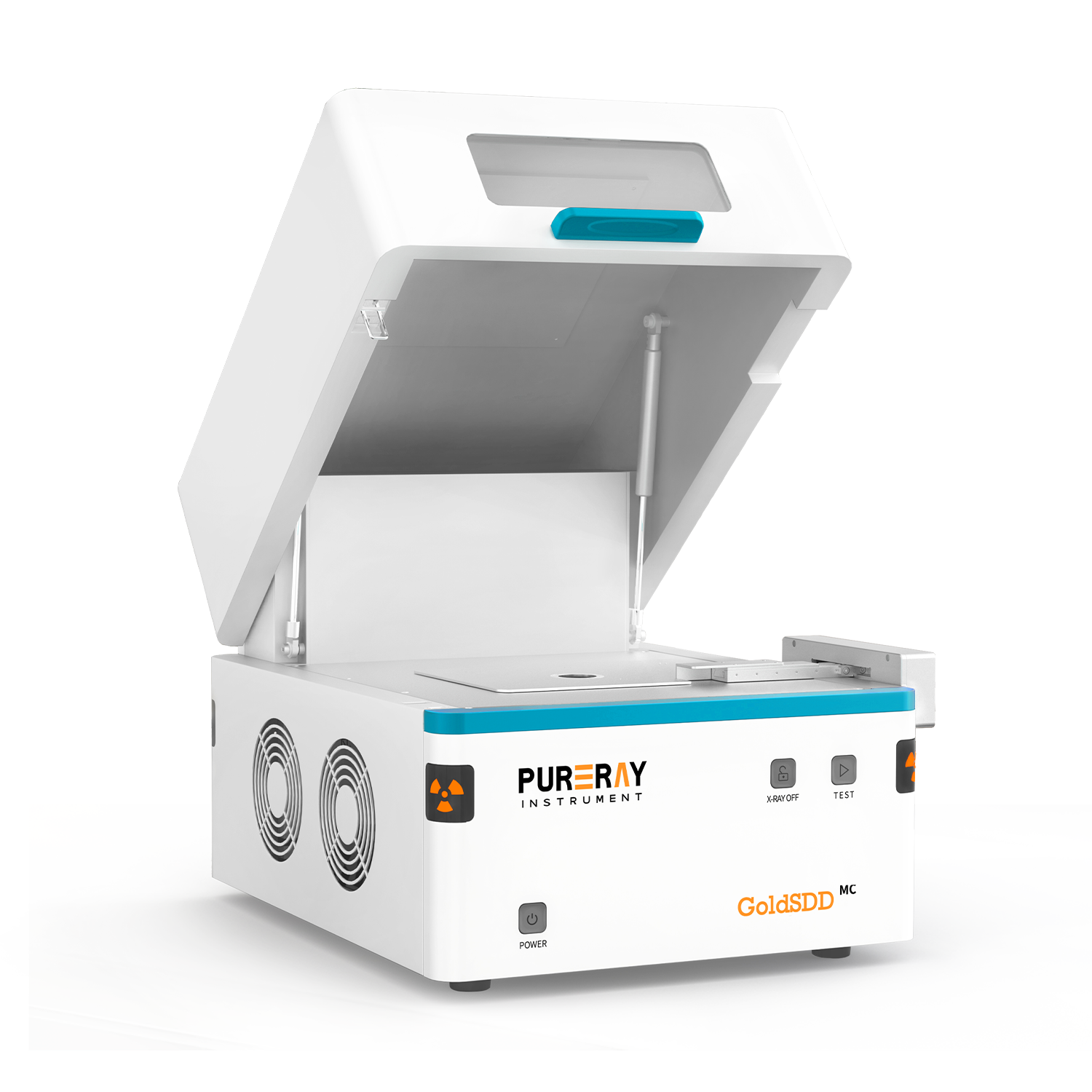

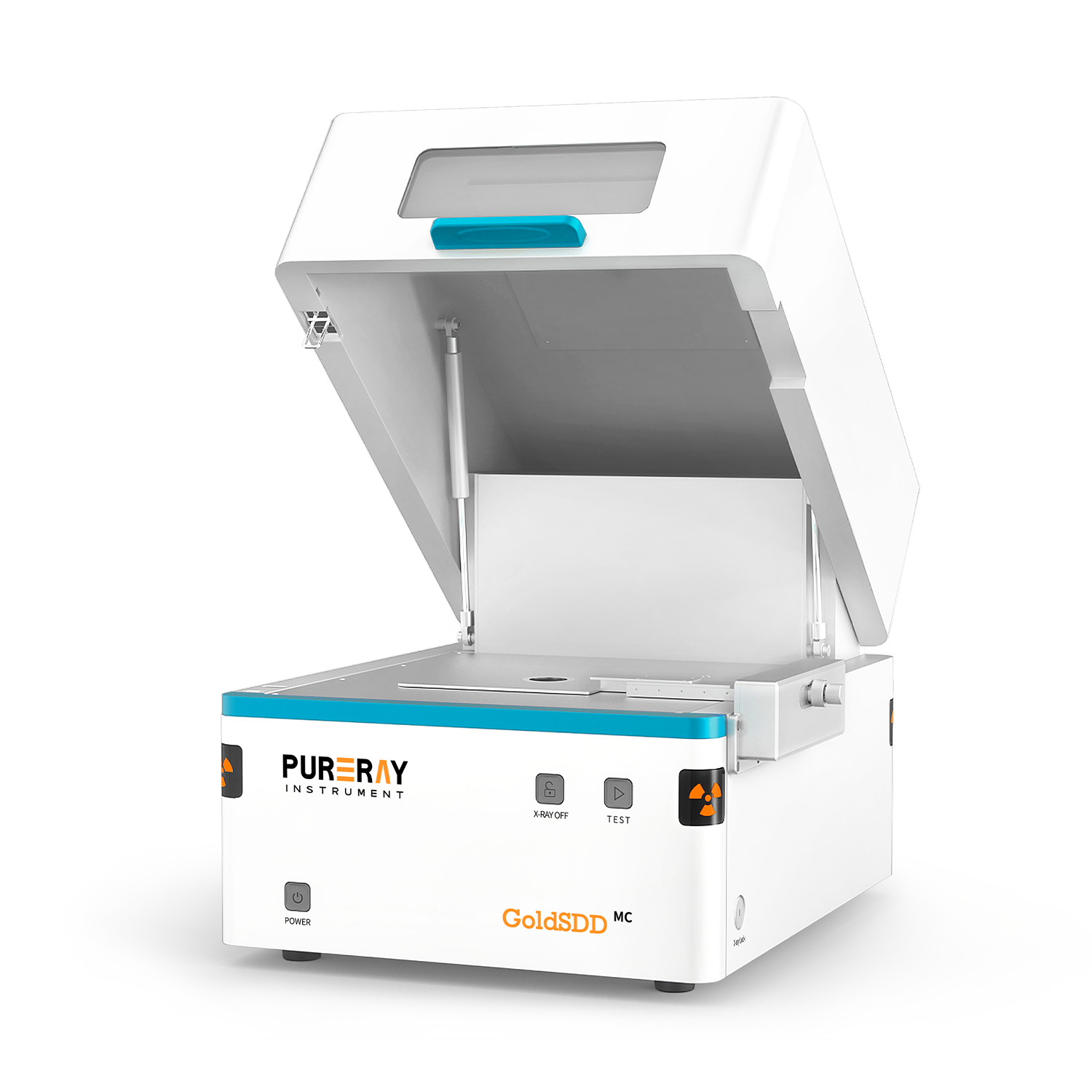

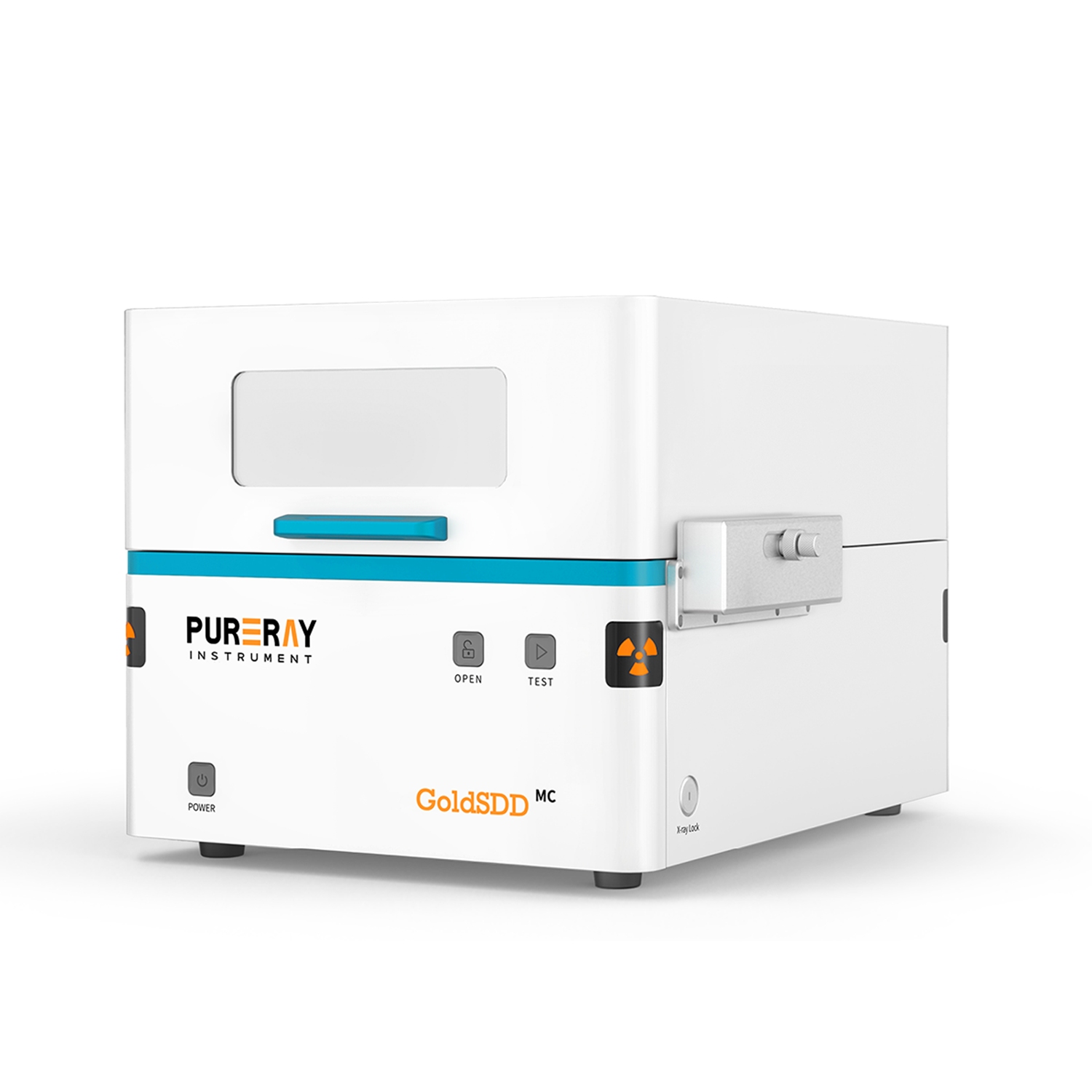

GoldSDDMC is a high-end X-ray fluorescence spectrometer launched by PURERAY Instrument with an upgraded optical path. It can be widely used in precious metal, electroplating industry, gemstone and other industries. The instrument adopts an USA AMPTEK customized Fast-SDD detector, an embedded computer with a 12-core CPU and the Smart FP algorithm. Besides, it applies the creative vertical optical path to obtain a smaller real focus. It can fast and accurately analyze precious metals, gemstones, coatings and ion concentrations. The MC model supports dual collimators to achieve stronger performance.
| Detector | USA AMPTEK customized Fast-SDD | Collimator | Φ0.5mm/Φ1.5mm |
|---|---|---|---|
| Detector area: 25mm2 | Input Voltage | AC100～240V，50Hz | |
| Resolution: 125±5eV | Package size | 625*560*480mm | |
| Embedded computer | Intel i5 12-core | Machine size | 460*522*368mm |
| HV power supply | 50KV/1mA digital HV | Test chamber size | 374*344*155mm |
| X-ray tube | 50KV/1mA | Rated power | 150W |
| Window material: alluminium | Gross weight | 57KG | |
| Target material: wolfram | Net weight | 42KG | |
| Focus: Φ0.3mm | Noise | ＜65dB |
