XRF-Z8Hot
Easy to operate | High-precision detection
Quick response service | Lifetime free upgrades
Element range: Al(No.13)～Ti(No.22)
Analysis rang: 0.01g/m2~50g/m2
Precision: ±0.01g/m2
Testing sample: PET release film/all kinds of release paper
Directly test the sample of A4 size without cutting and sampling
Support the multi-point continuous test with high efficiency
Optional part: an automatic sample changer (10 sites)

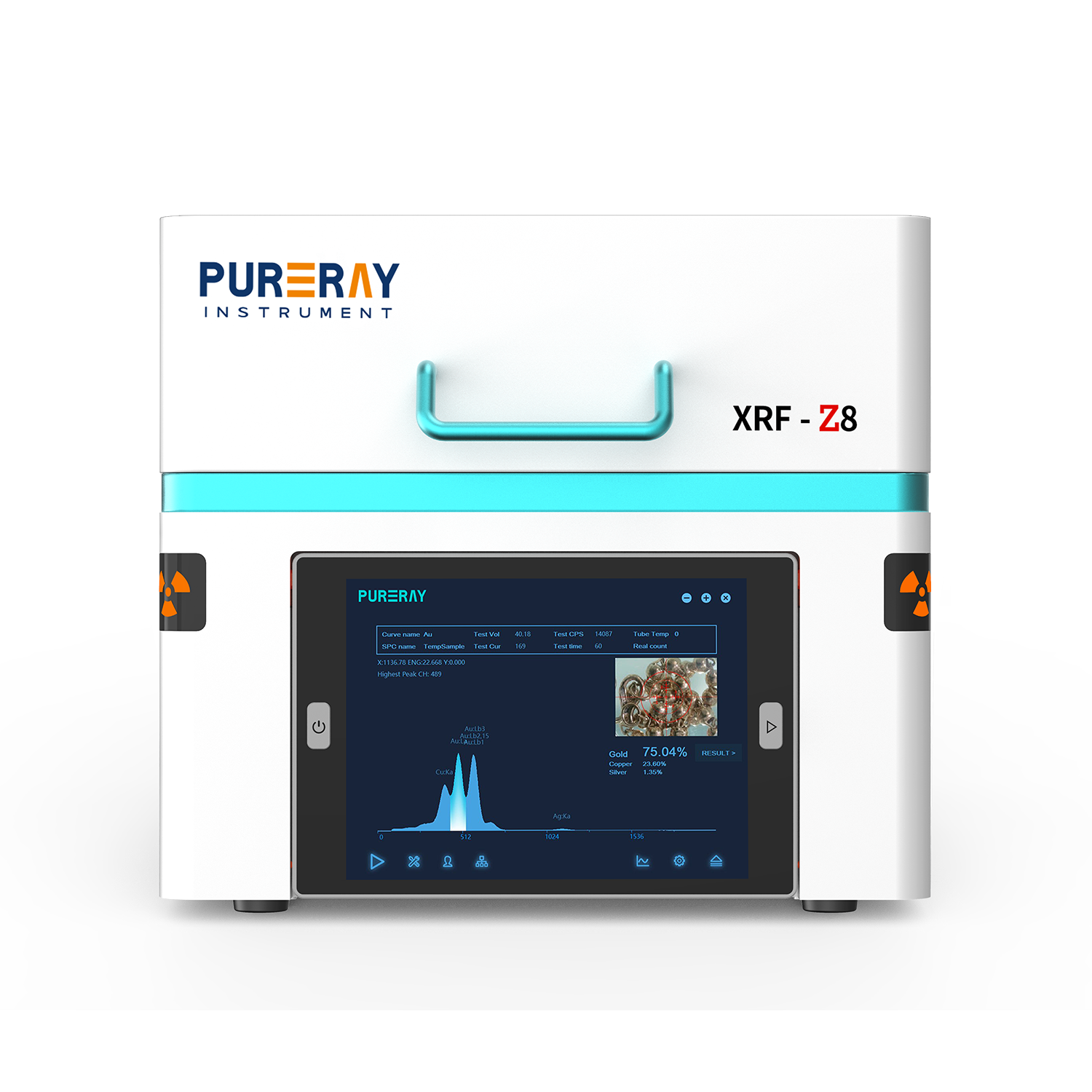

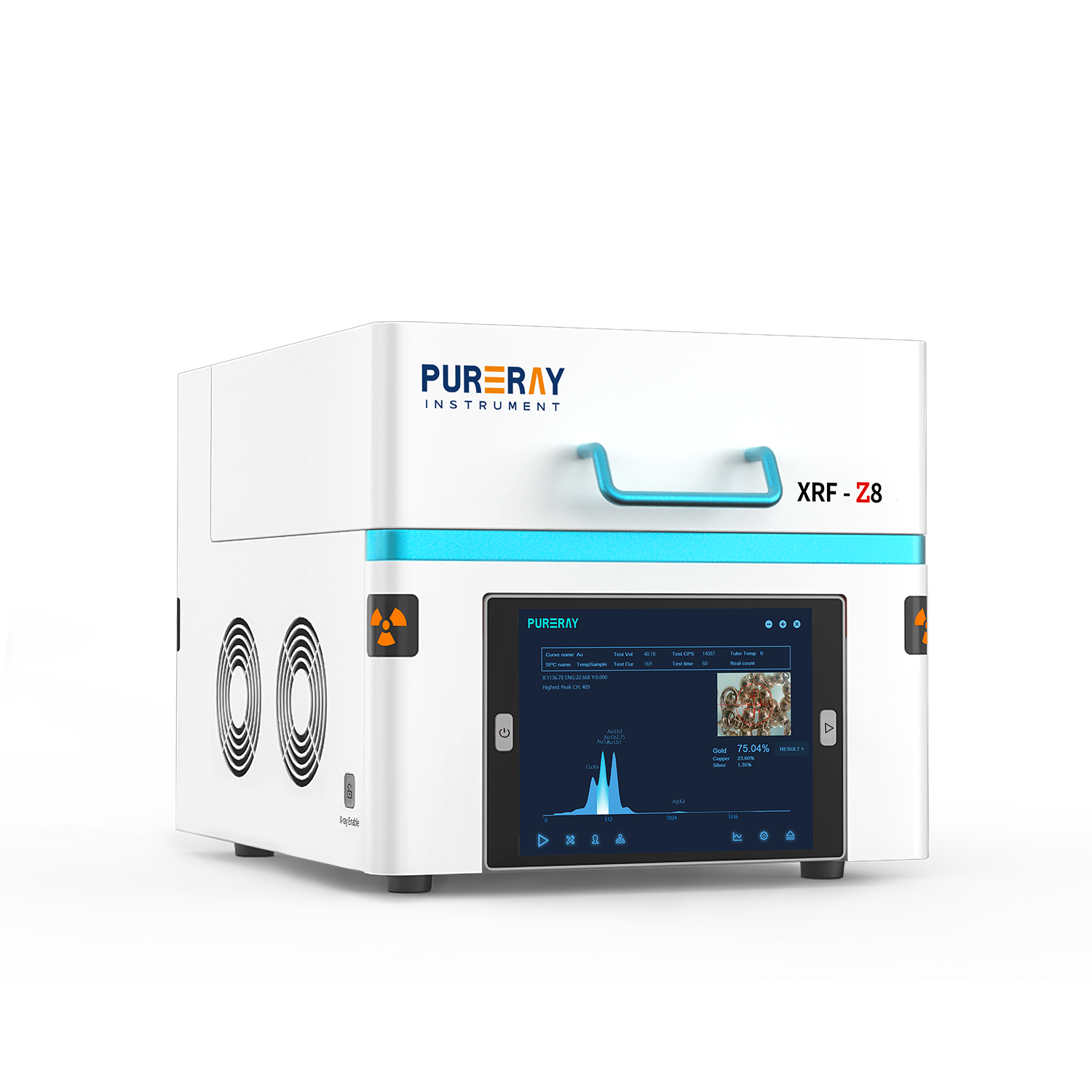

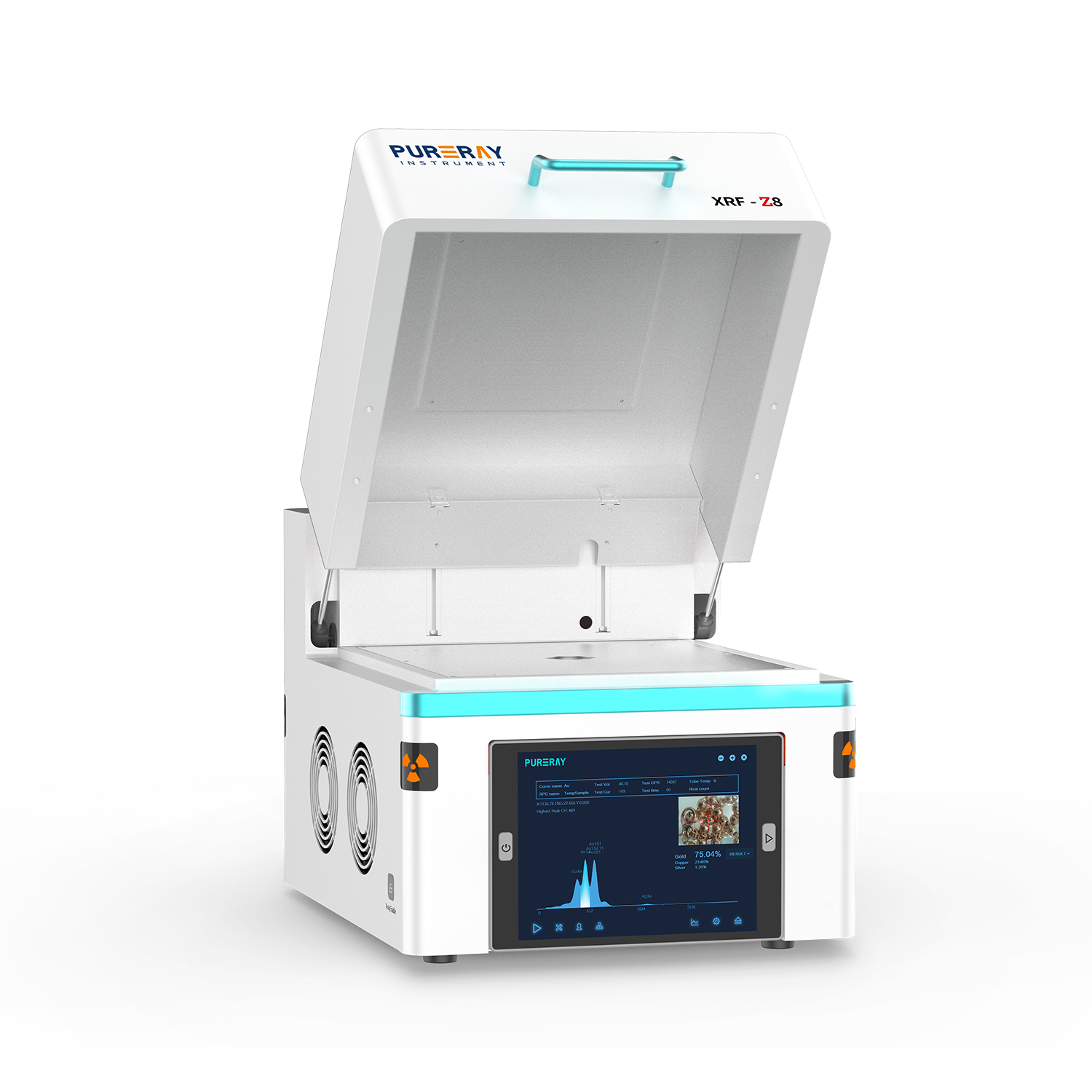

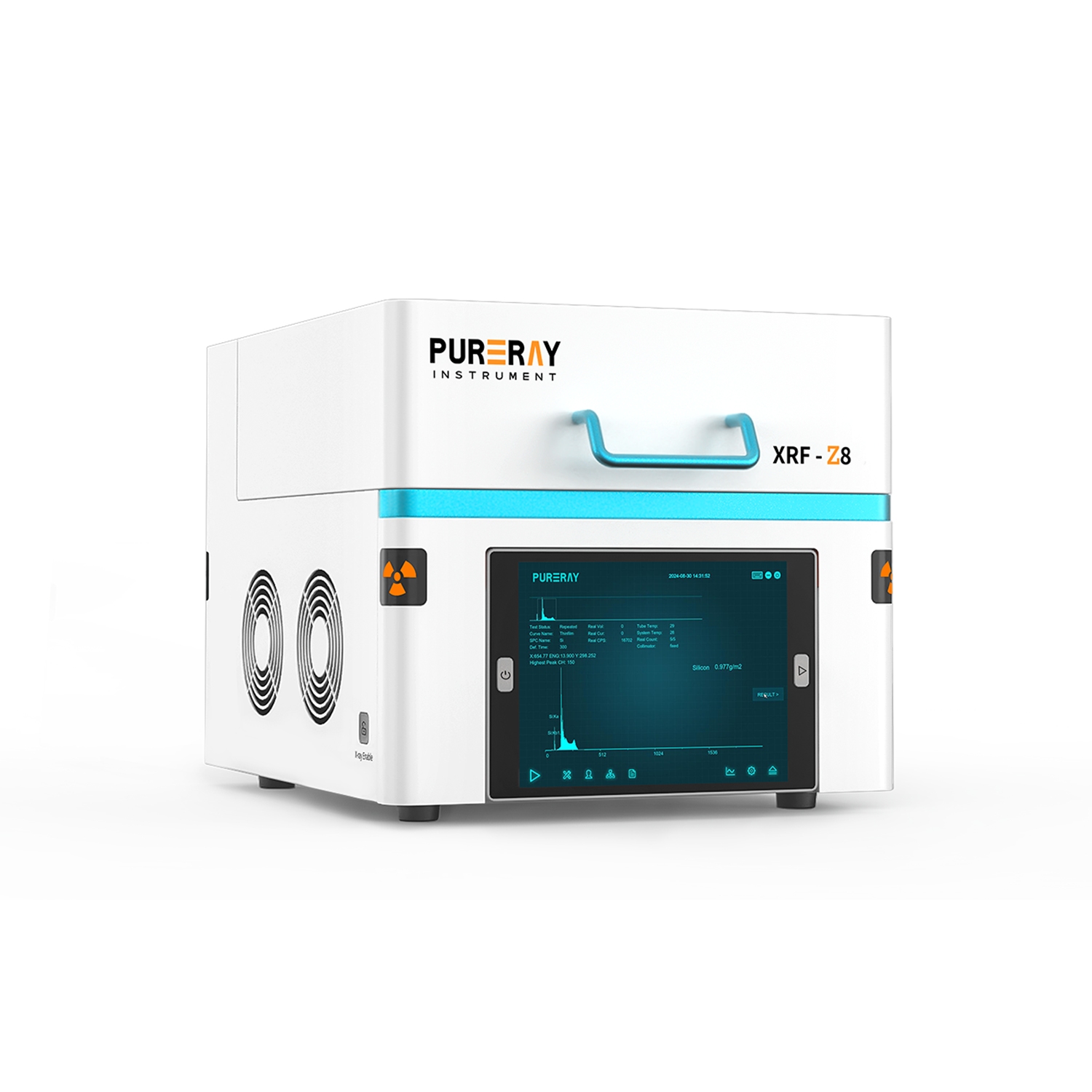

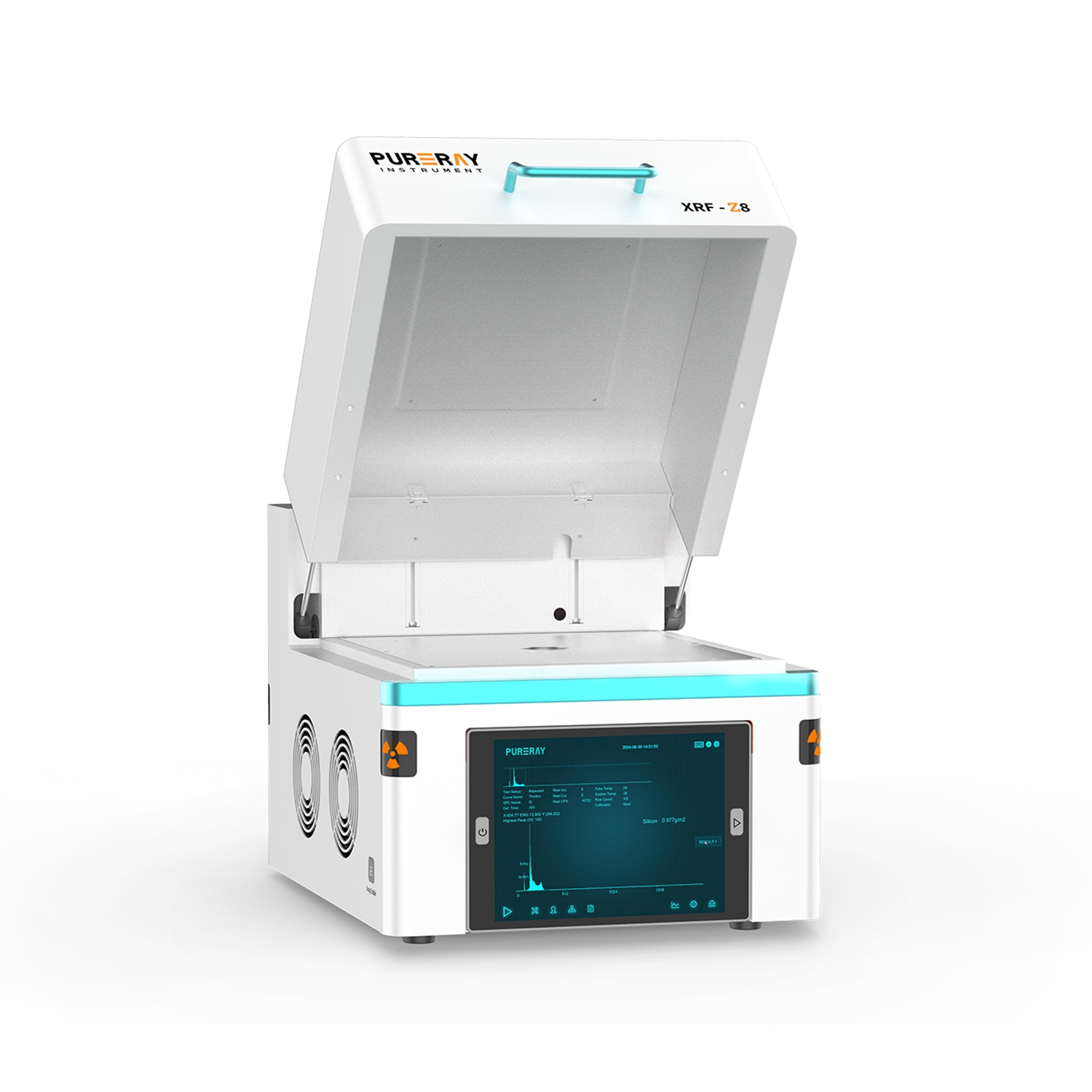

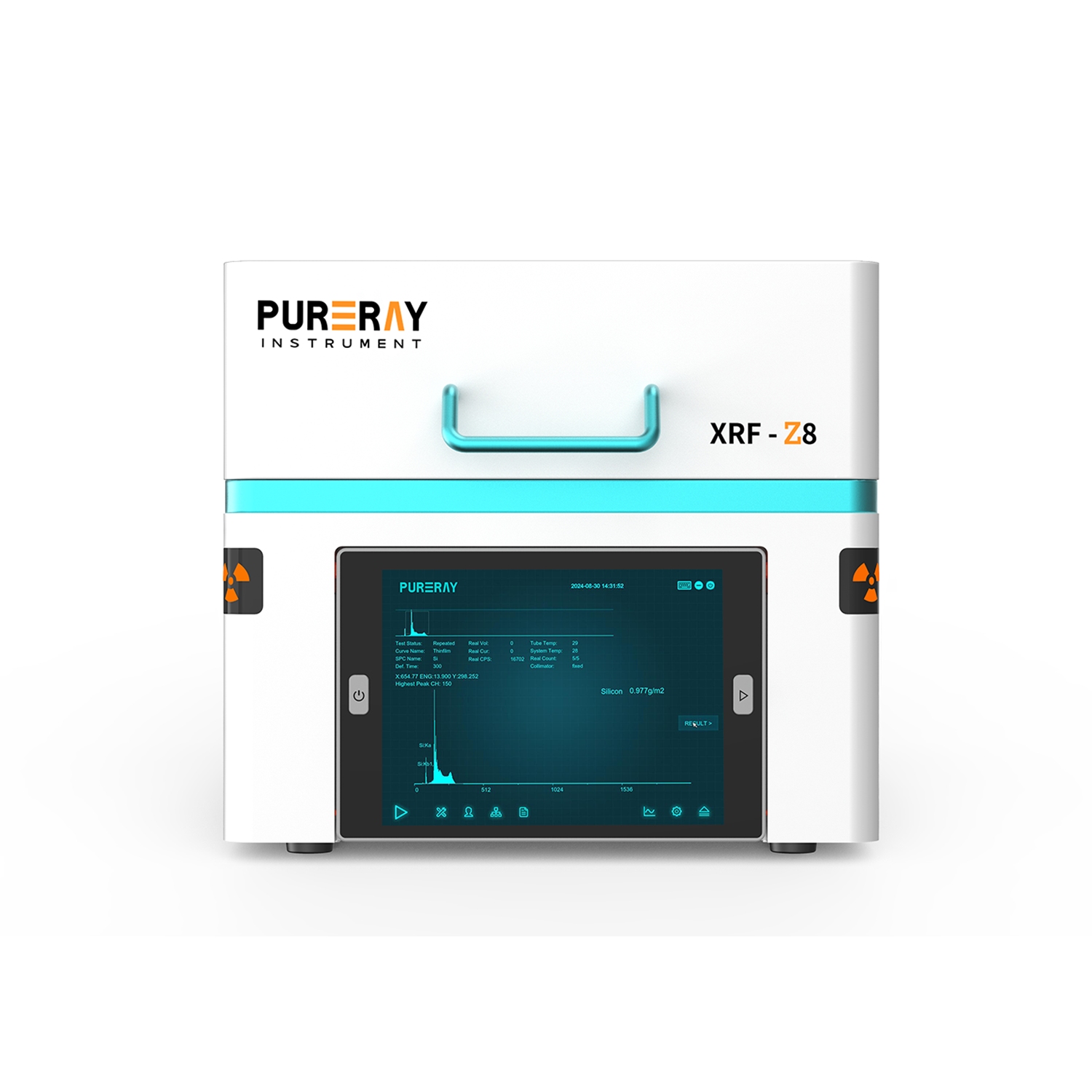

XRF-Z8
XRF-Z8 is an X-ray fluorescence spectrometer specializing in analyzing density of silicone oil coating, important to manage production technology and cost. It is able to detect silicone oil coating of PET release film, glassine, kraft paper, and so on. The instrument offers fast and accurate test as well as an optional automatic sample changer (10 samples).
Features
Test accuracy
±0.01g/m²
Analysis type
PET film /all kinds of release paper
Easy operation
Detection without pretreatment
Multi-sample testing
Autonomous analysis of up to 10 samples
Specifications
| Detector | USA AMPTEK customized Fast-SDD | Collimator | Φ8.0mm |
|---|---|---|---|
| Detector area: 25mm2 | Input Voltage | AC100～240V50Hz | |
| Resolution: 125±5eV | Package size | 615*555*480mm | |
| Embedded computer | Intel NUC i5 12 cores | Machine size | 400*546*368mm |
| HV power supply | 50KV/1mA digital HV | Test chamber size | 373*343*120mm |
| X-ray tube | 50KV/1mA | Rated power | 200W |
| Window material: beryllium | Gross weight | 58KG | |
| Target material: silver | Net weight | 43KG | |
| Focus | Φ1.0mm | Noise | ＜65dB |
