Analysis elements: Al(No.13)~U(No.92)
Analyze 10-layer coatings
Measure the thickness and composition of coatings
Test sample: coating/metal/liquid/RoHS
Precision:
Coating: RSD ≤1.5%
Precious metal: ±0.01% (9999 gold)
Liquid: RSD ≤1.5%
RoHS: 1ppm (ideal situation)
Multiple collimators and filters
Comply with ISO23345, ISO3497 and ASTM-B568.
Visible samples with lead glass
XY micro-motion platform
Stroke: 50mm*50mm

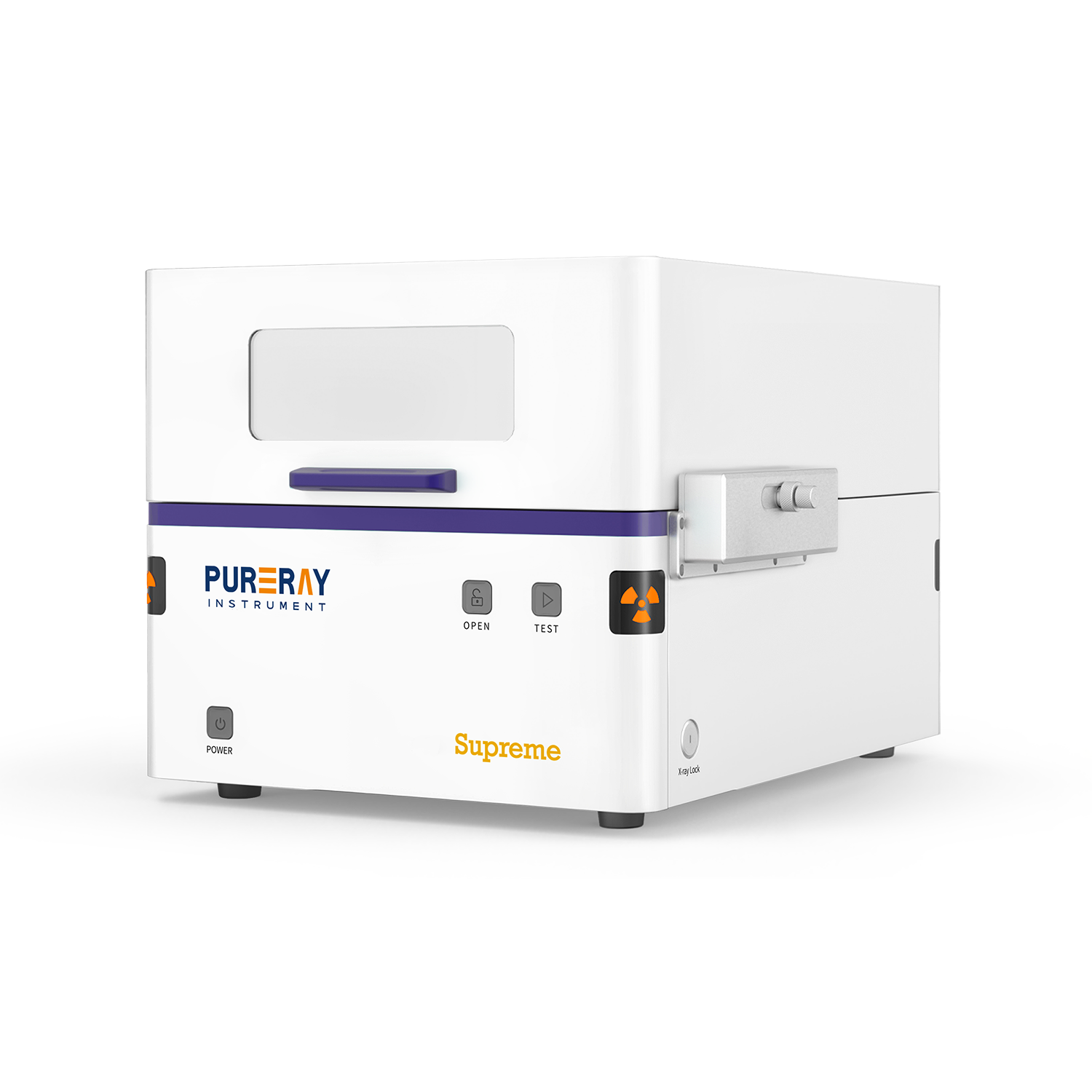

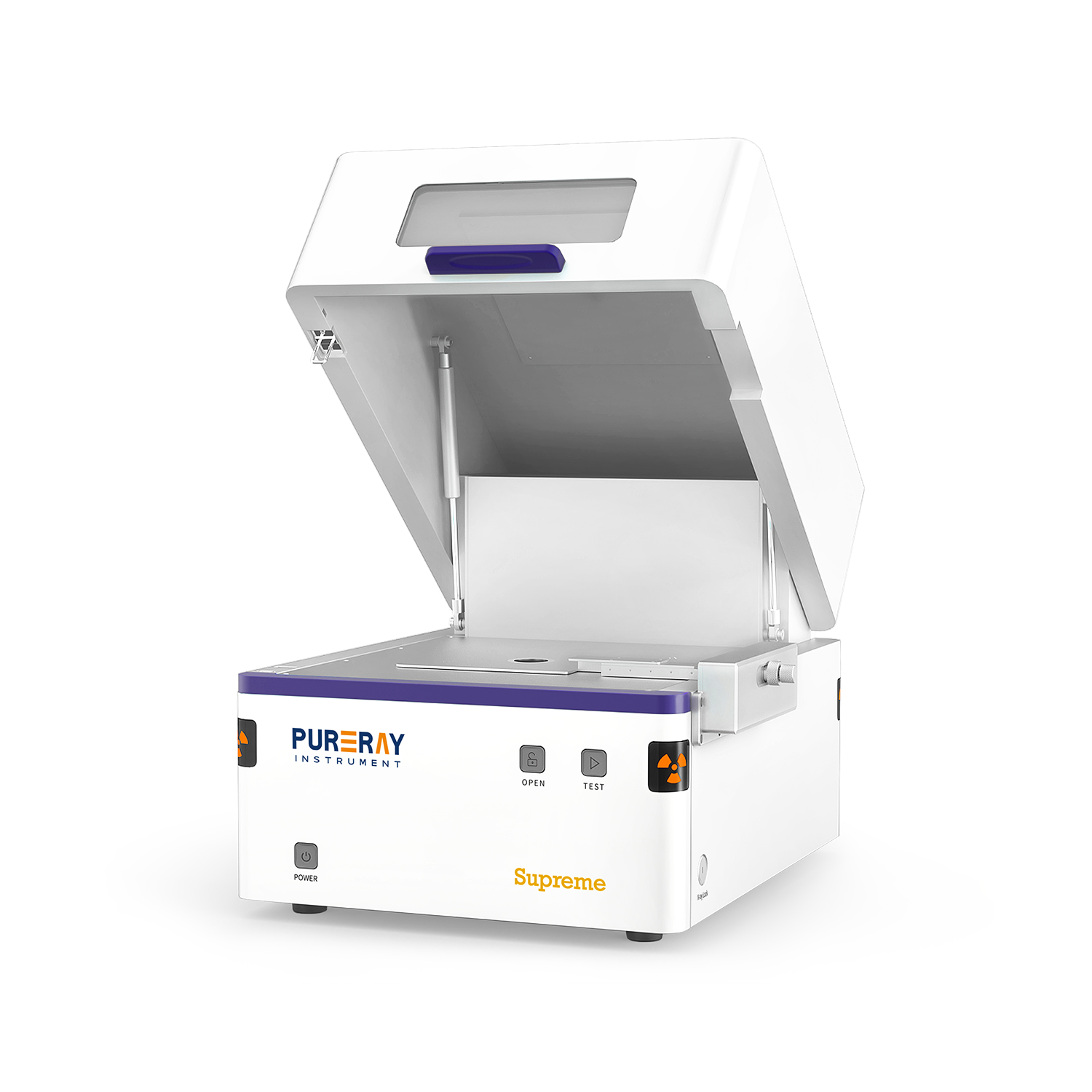

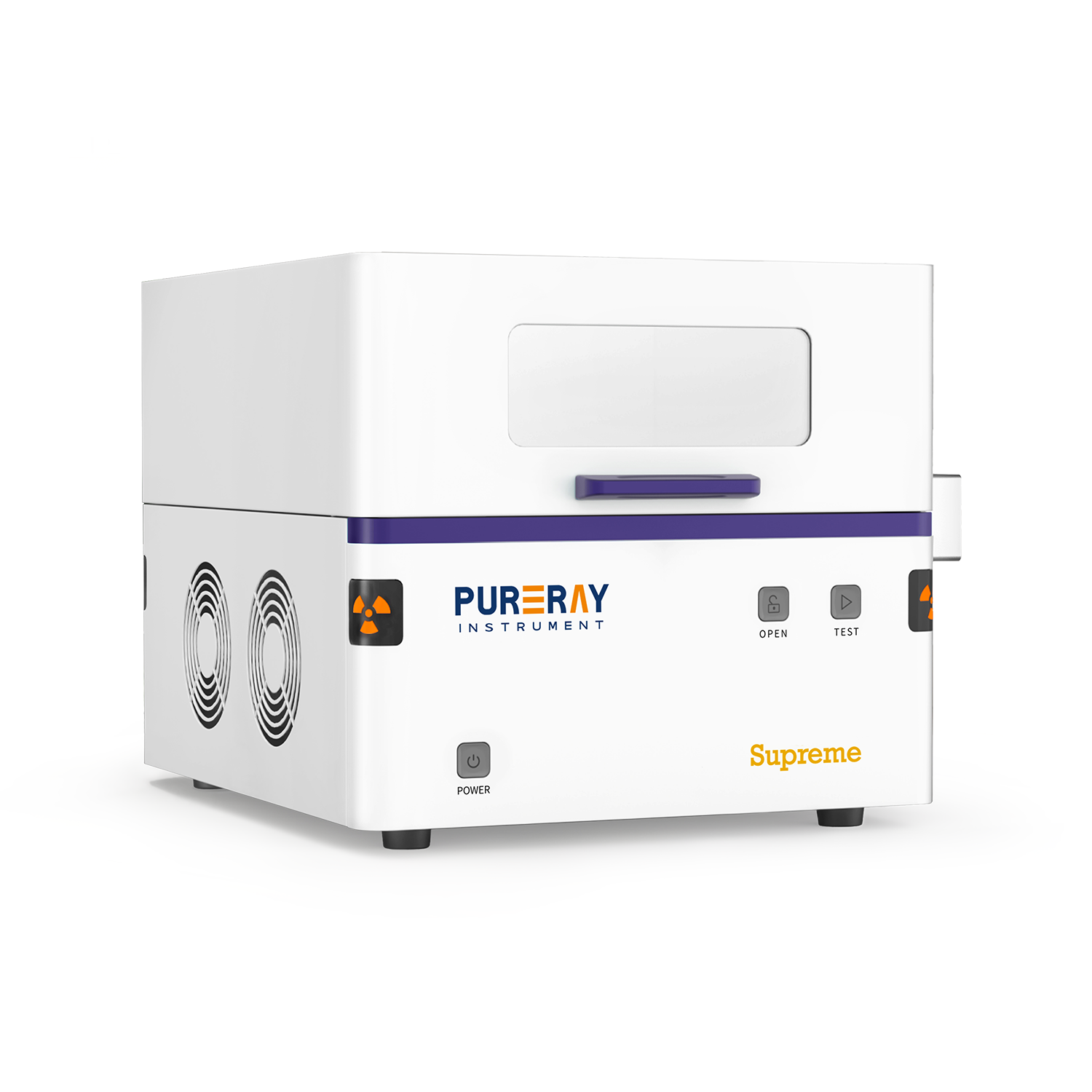

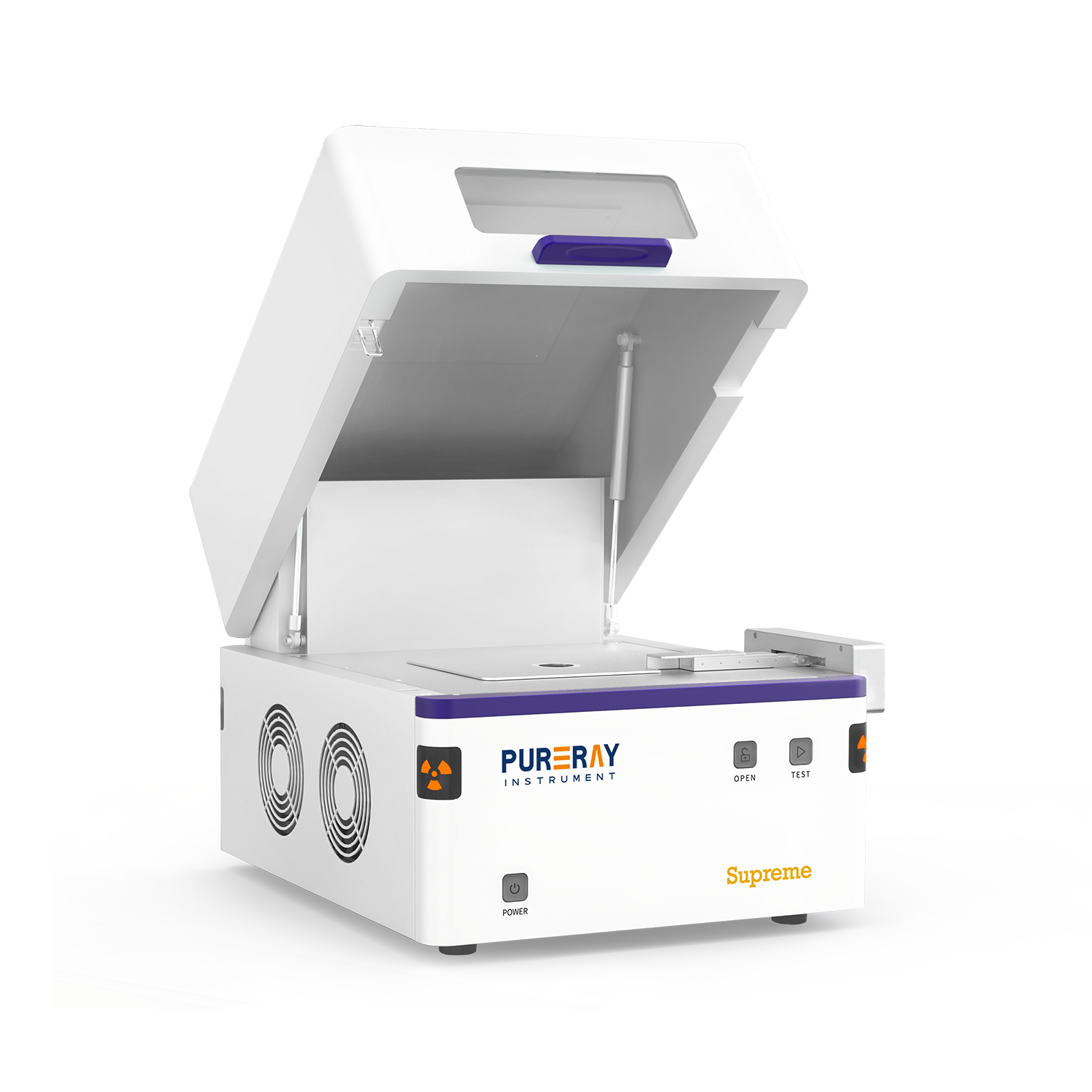

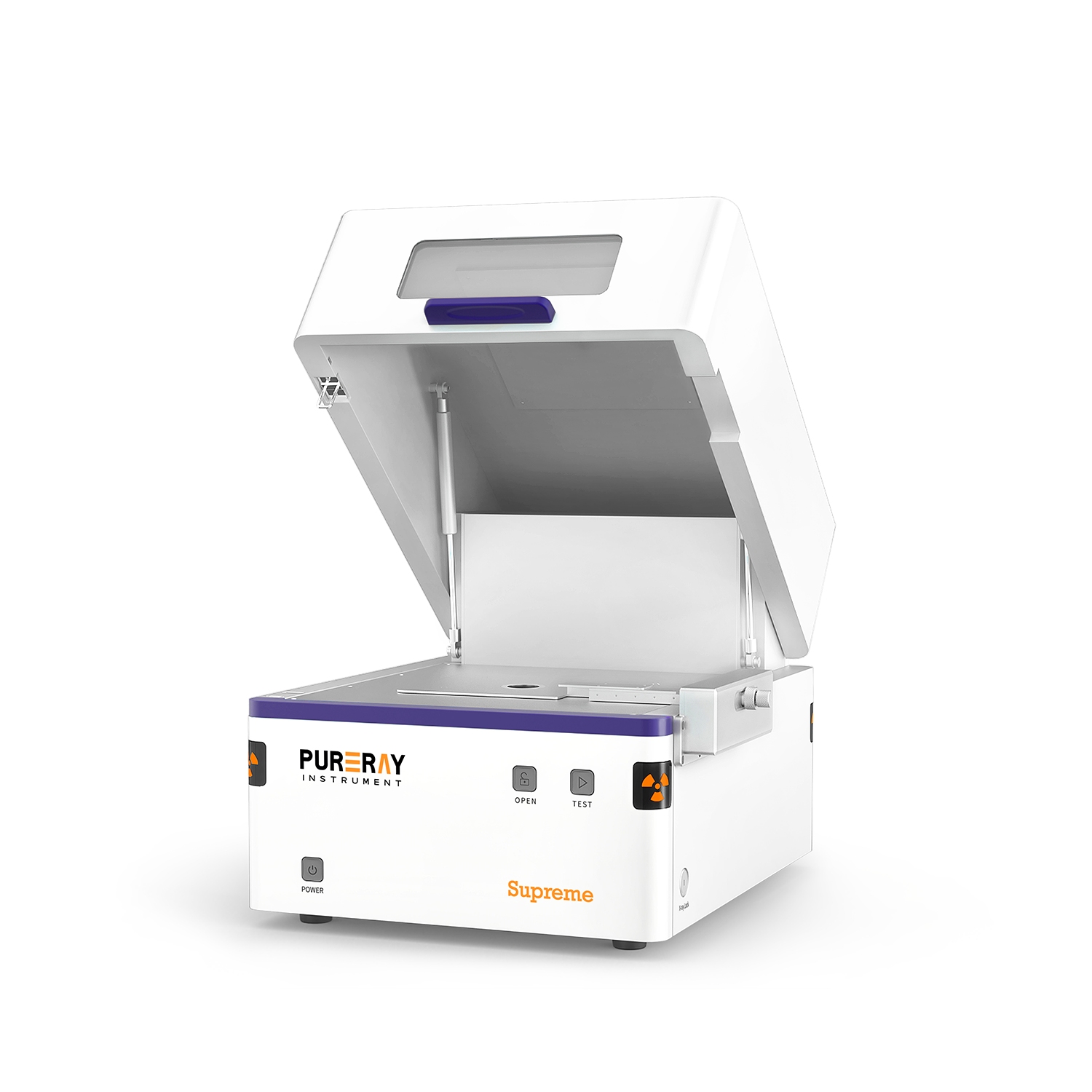

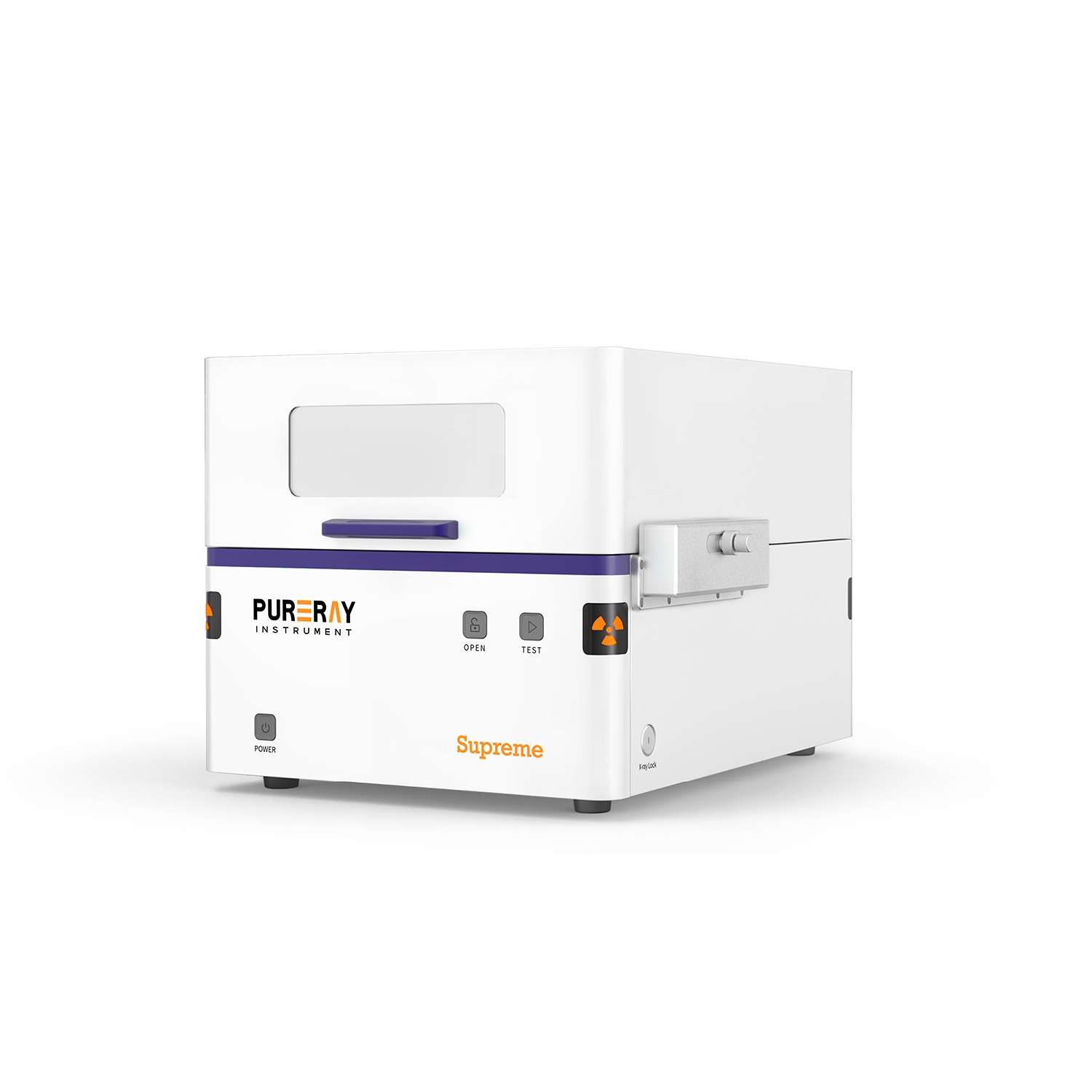

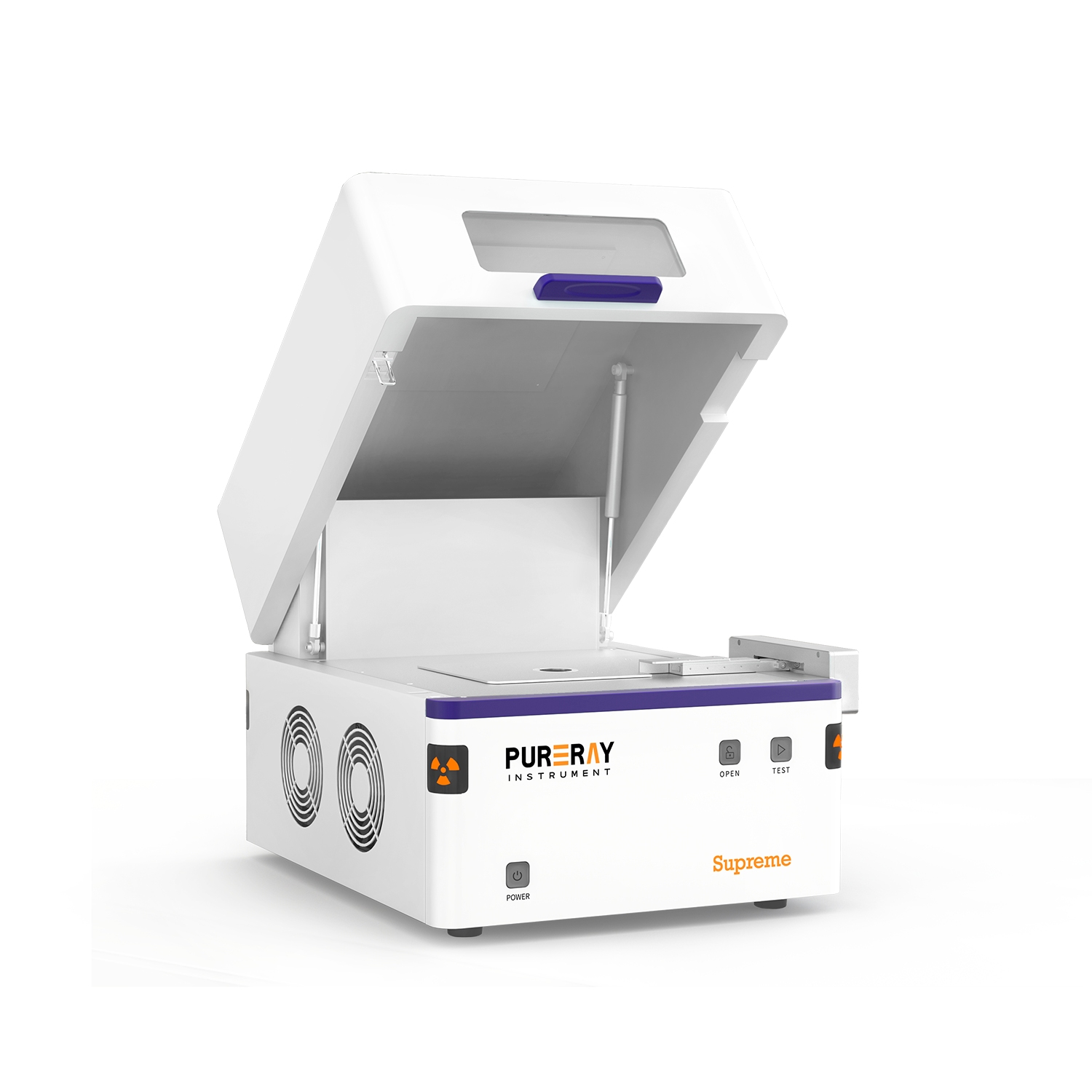

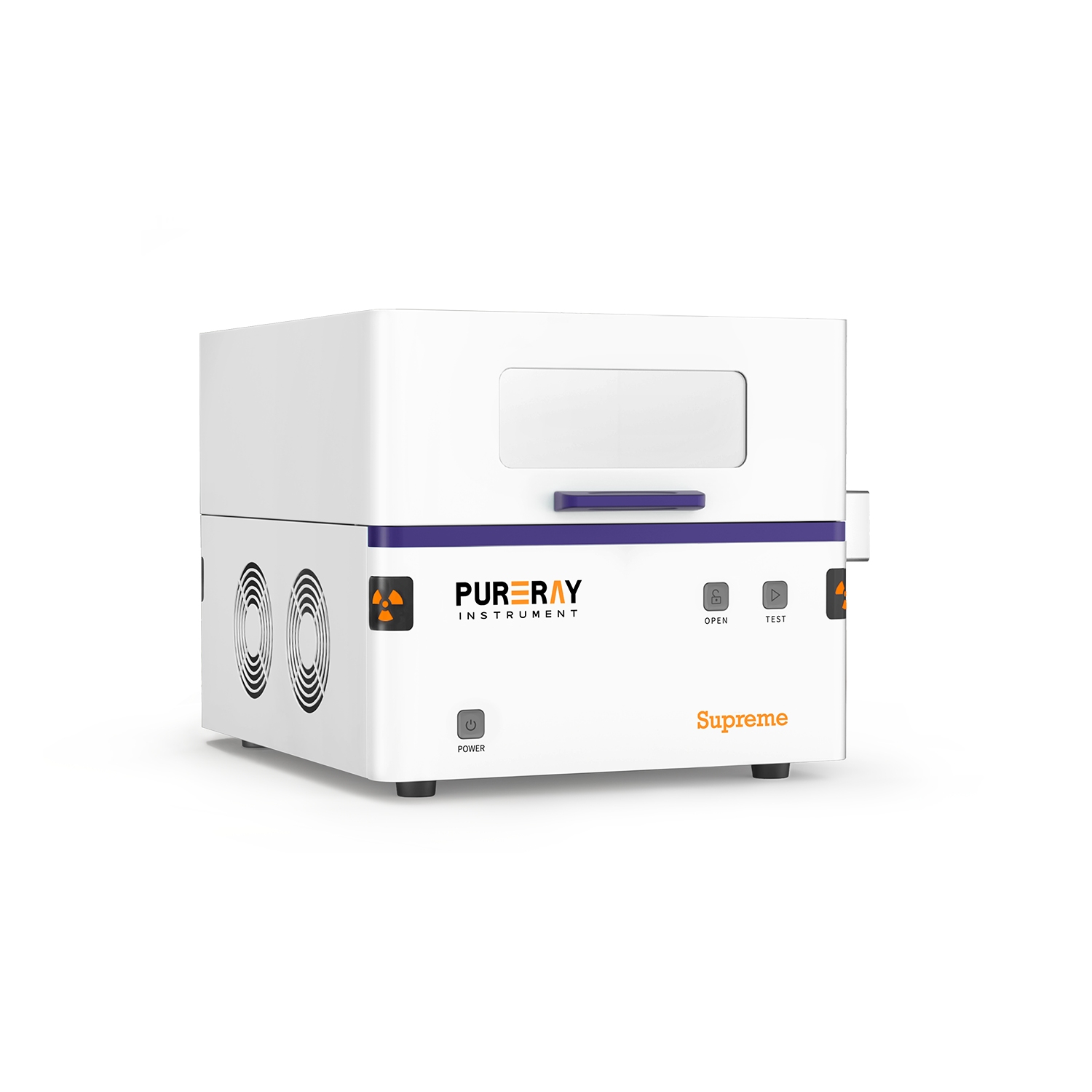

Supreme is an X-ray fluorescence spectrometer developed by PURERAY Instrument for the non-destructive coating analysis. It can be widely used in various industries, such as the electroplating, chemical plating, connector and PCB. The analyzer adopts an USA AMPTEK customized Fast-SDD detector, an embedded computer with a 12-core CPU and the Smart FP algorithm. Without standard samples, the spectrometer can measure the thickness and composition of coatings at the same time. It can fast and accurately analyze 10-layer coatings.
| Detector | USA AMPTEK customized Fast-SDD | Collimator | 0.1*0.2mm/Φ0.35mm/Φ1.5mm |
|---|---|---|---|
| Detector area: 25mm2 | Input Voltage | AC100～240V，50Hz | |
| Resolution: 125±5eV | Package size | 625*560*480mm | |
| Embedded computer | Intel i5 12-core | Machine size | 460*522*368mm |
| HV power supply | 50KV/1mA digital HV | Test chamber size | 374*344*155mm |
| X-ray tube | 50KV/1mA | Rated power | 150W |
| Window material: beryllium | Gross weight | 57KG | |
| Target material: wolfram | Net weight | 42KG | |
| Focus: Φ0.1mm | Noise | ＜65dB |
