Analysis elements: K(No.19)~U(No.92)
Analyzed up to 30 elements at the same time.
Coating warning
Rhenium and tungsten detection warning
Test Sample: precious metal
Precision: ±0.01% (9999 gold)
Support the multi-point continuous test with high efficiency.
Automatically calculate the average value and RSD of multiple results.
Visible samples with lead glass

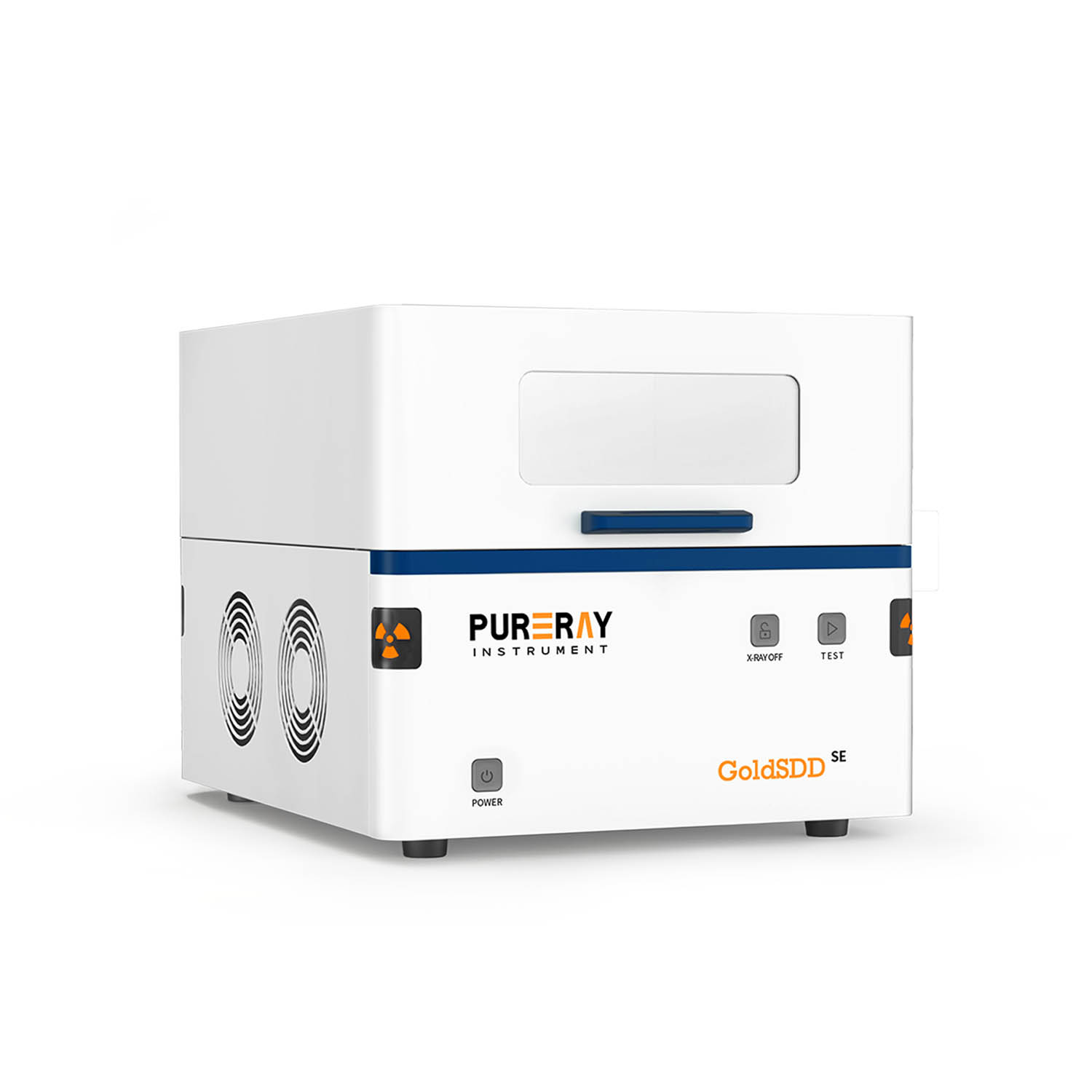

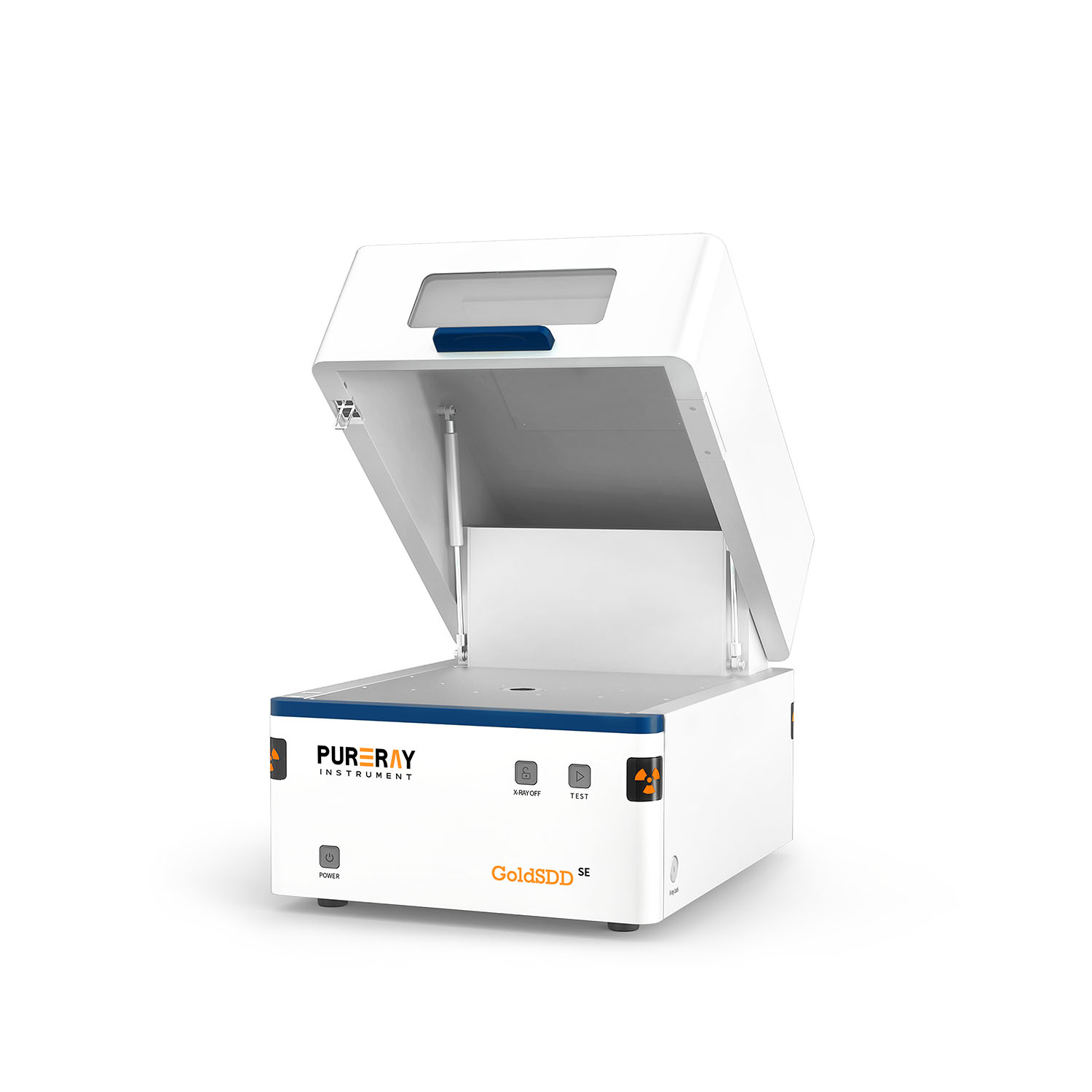

GoldSDDSE is a FSDD-based precious metal analyzer launched by PURERAY Instrument in 2026. It adopts a USA AMPTEK customized Fast-SDD detector and applies the creative vertical optical path to obtain a smaller real focus. With a 10-core CPU computer, the XRF spectrometer is powered by the Smart FP algorithm. It is specifically designed for the jewelry testing and precious metal recycling industries, enabling fast and accurate analysis of gold, platinum, palladium, and other precious metals.
| Detector | USA AMPTEK customized Fast-SDD | Collimator | Φ1.5mm |
|---|---|---|---|
| Detector area: 25mm2 | Input Voltage | AC100～240V，50Hz | |
| Resolution: 125±5eV | Package size | 625*560*480mm | |
| Embedded computer | Intel i3 10-core | Machine size | 460*522*368mm |
| HV power supply | 50KV/1mA digital HV | Test chamber size | 374*344*155mm |
| X-ray tube | 50KV/1mA | Rated power | 150W |
| Window material: alluminium | Gross weight | 57KG | |
| Target material: wolfram | Net weight | 42KG | |
| Focus: Φ0.3mm | Noise | ＜65dB |
