Analysis elements: K(No.19)~U(No.92)
Analyze up to 30 elements at the same time.
Measure the thickness and composition of 4-layer coatings.
Coating warning
Rhenium and tungsten detection warning
Identify artificial and natural gemstones.
Test Sample: metal/liquid/gemstone/coating
Precision:
Precious metals: ±0.03% (9999 gold)
Coating: RSD≤2.5%
Liquid: RSD≤2.5%
Support the multi-point continuous test with high efficiency.
Connect the scale for weight readings and calculate prices.
Automatically calculate the average value and RSD of multiple results.
Comply with ISO23345 and ISO3497.
Visible samples with lead glass
XY micro-motion platform
Stroke: 50mm*50mm

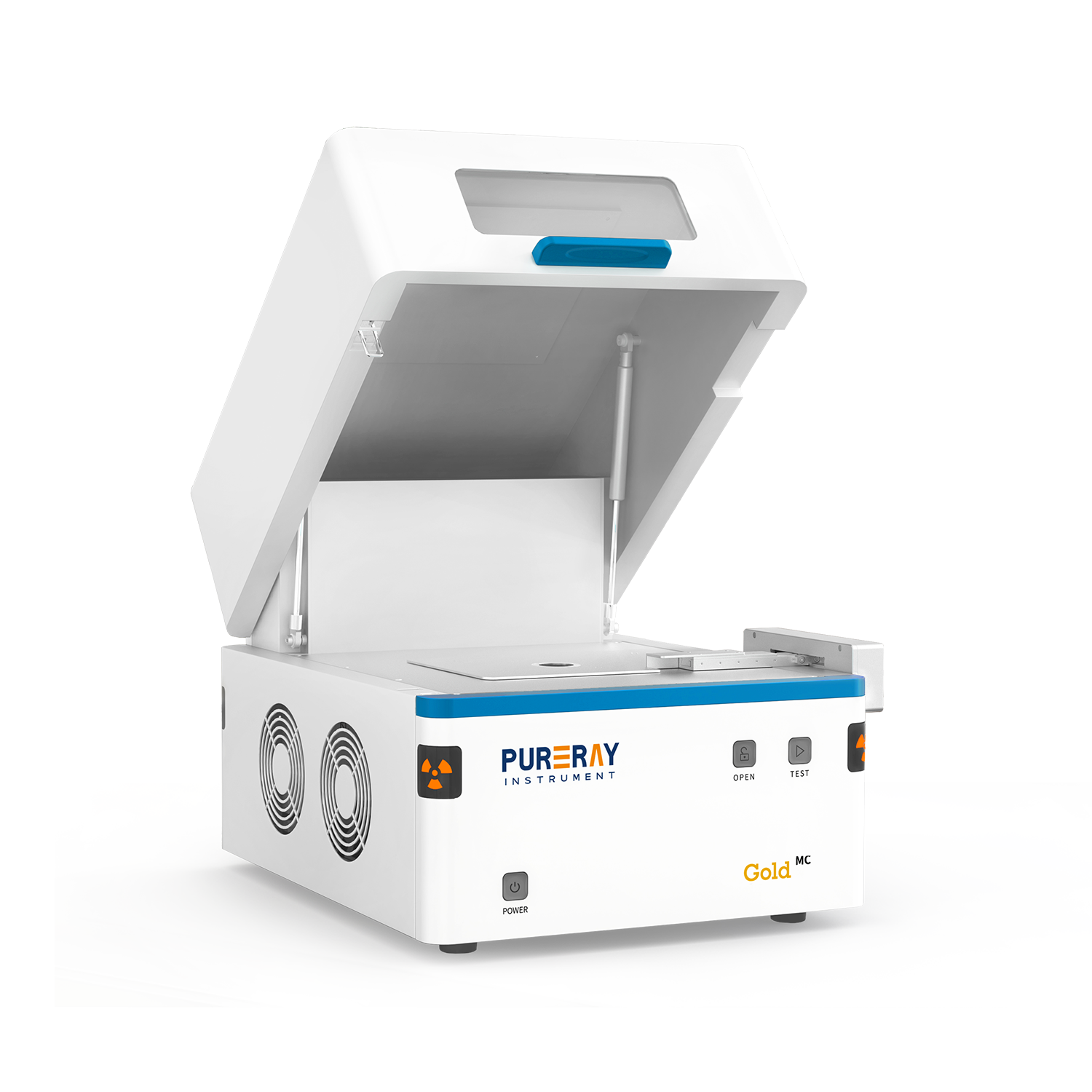

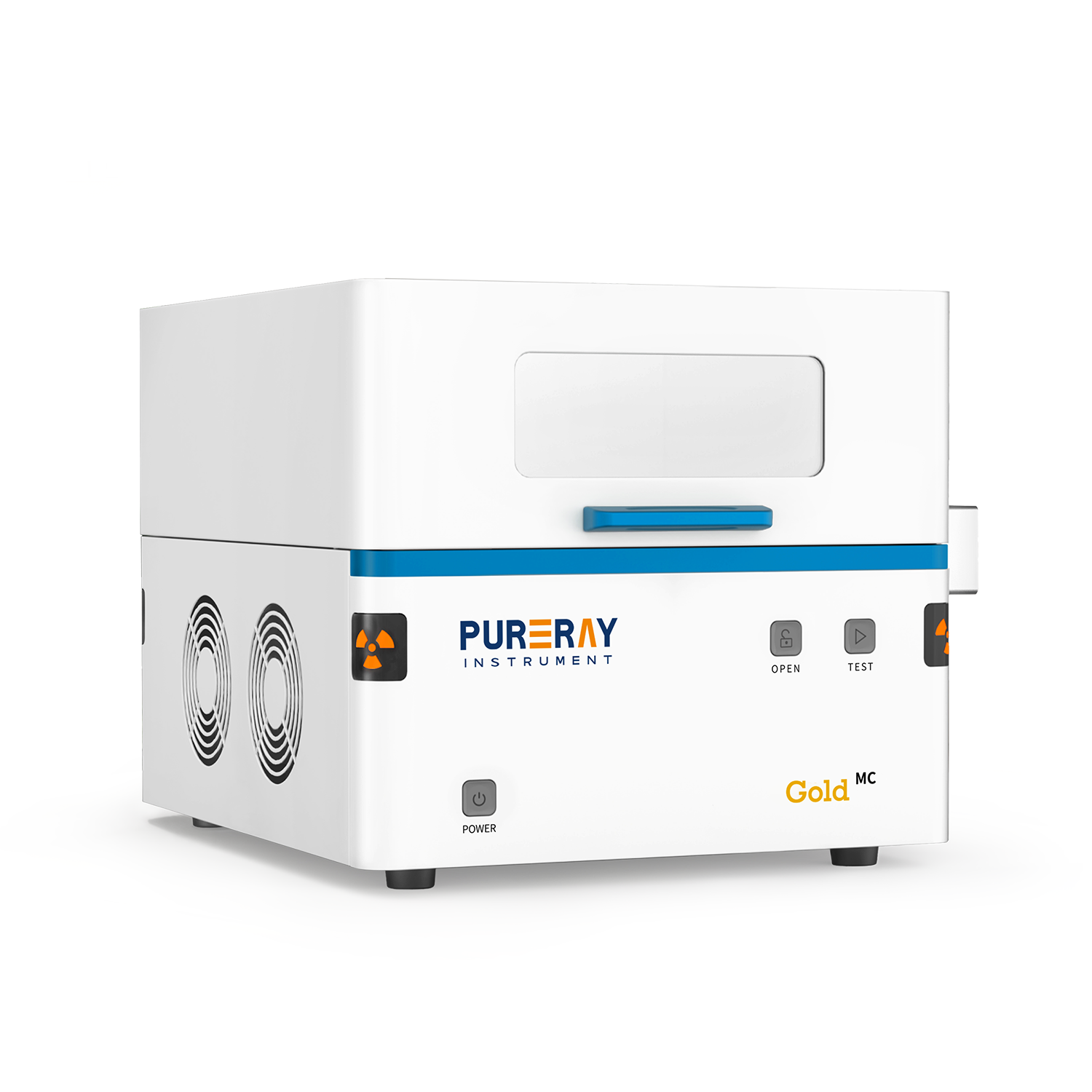

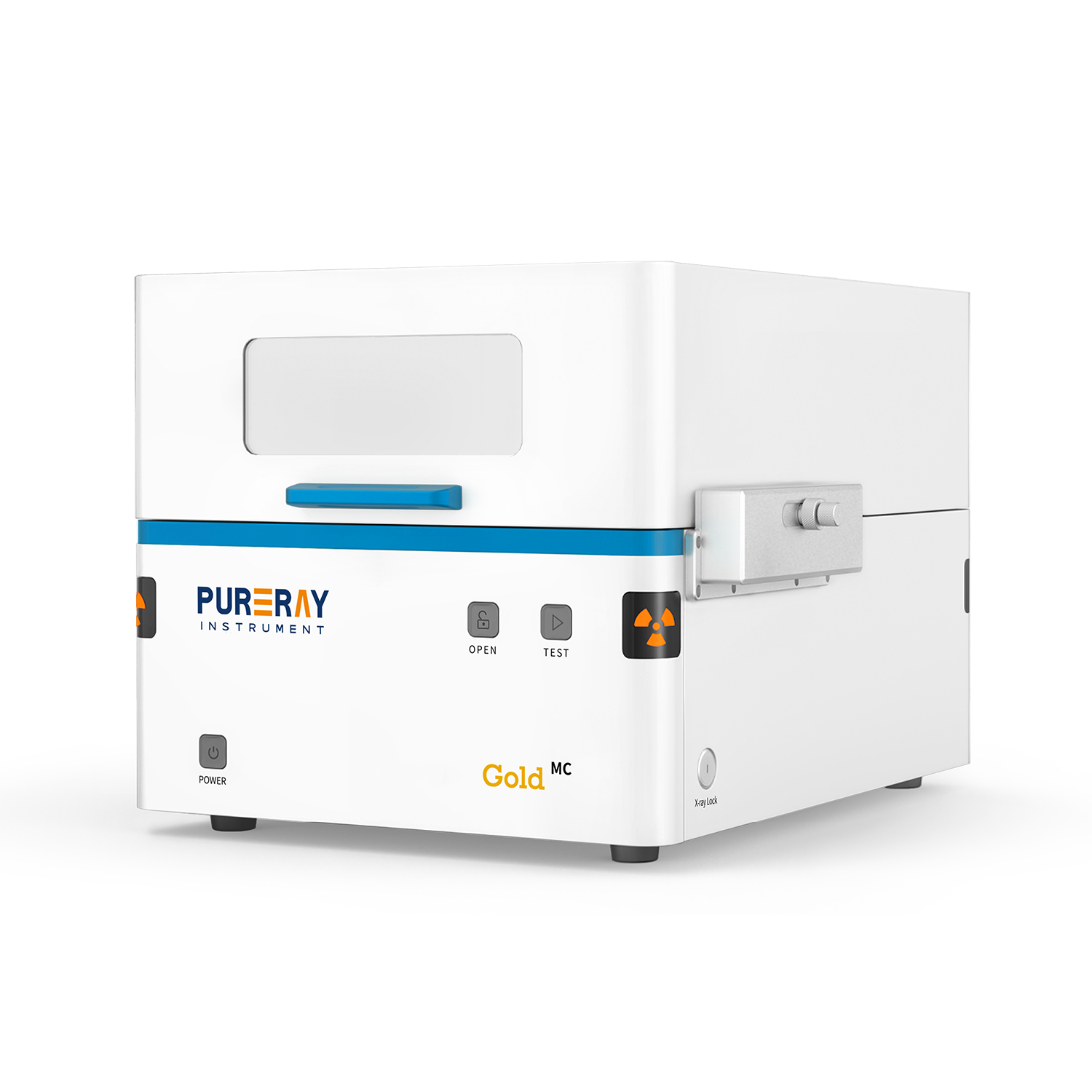

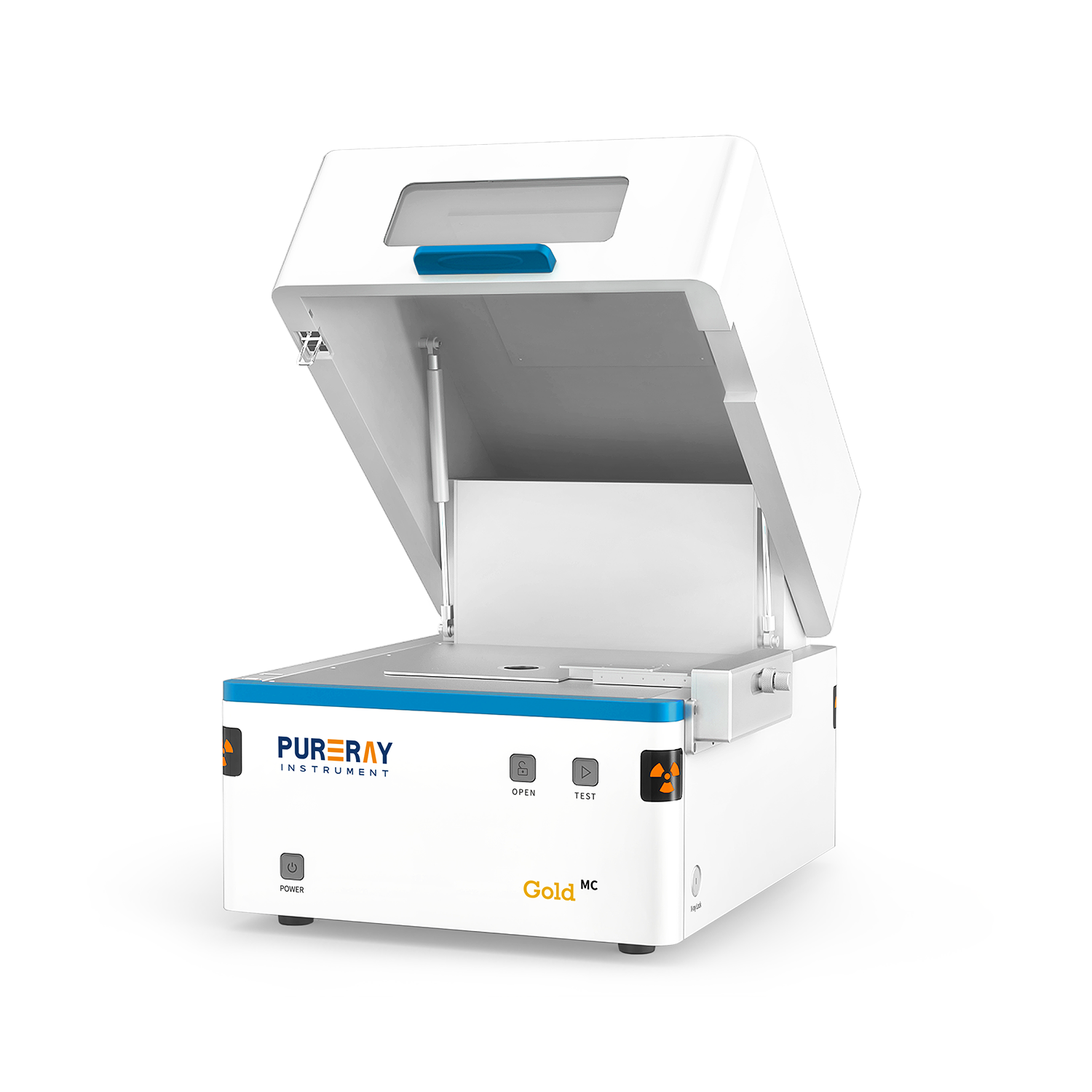

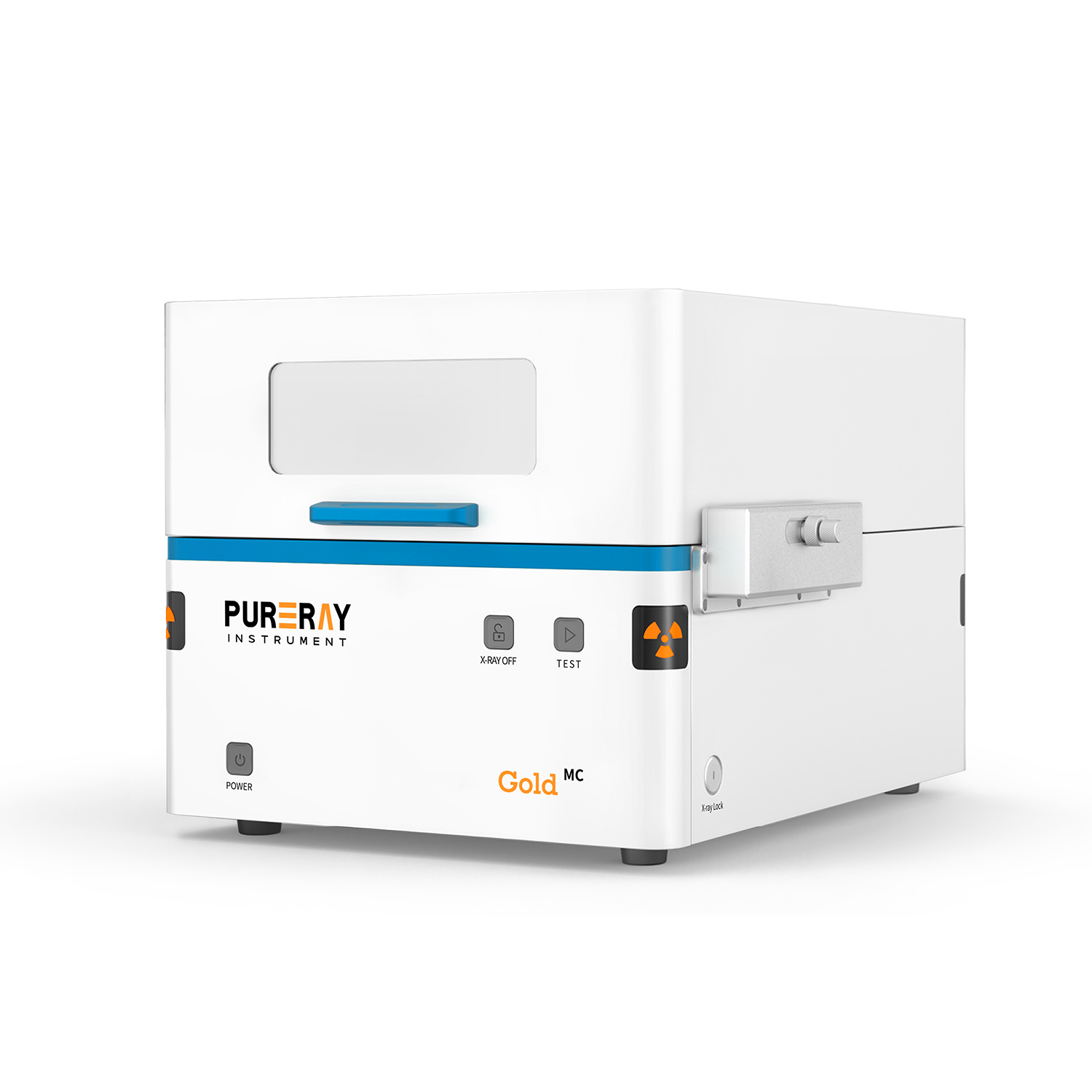

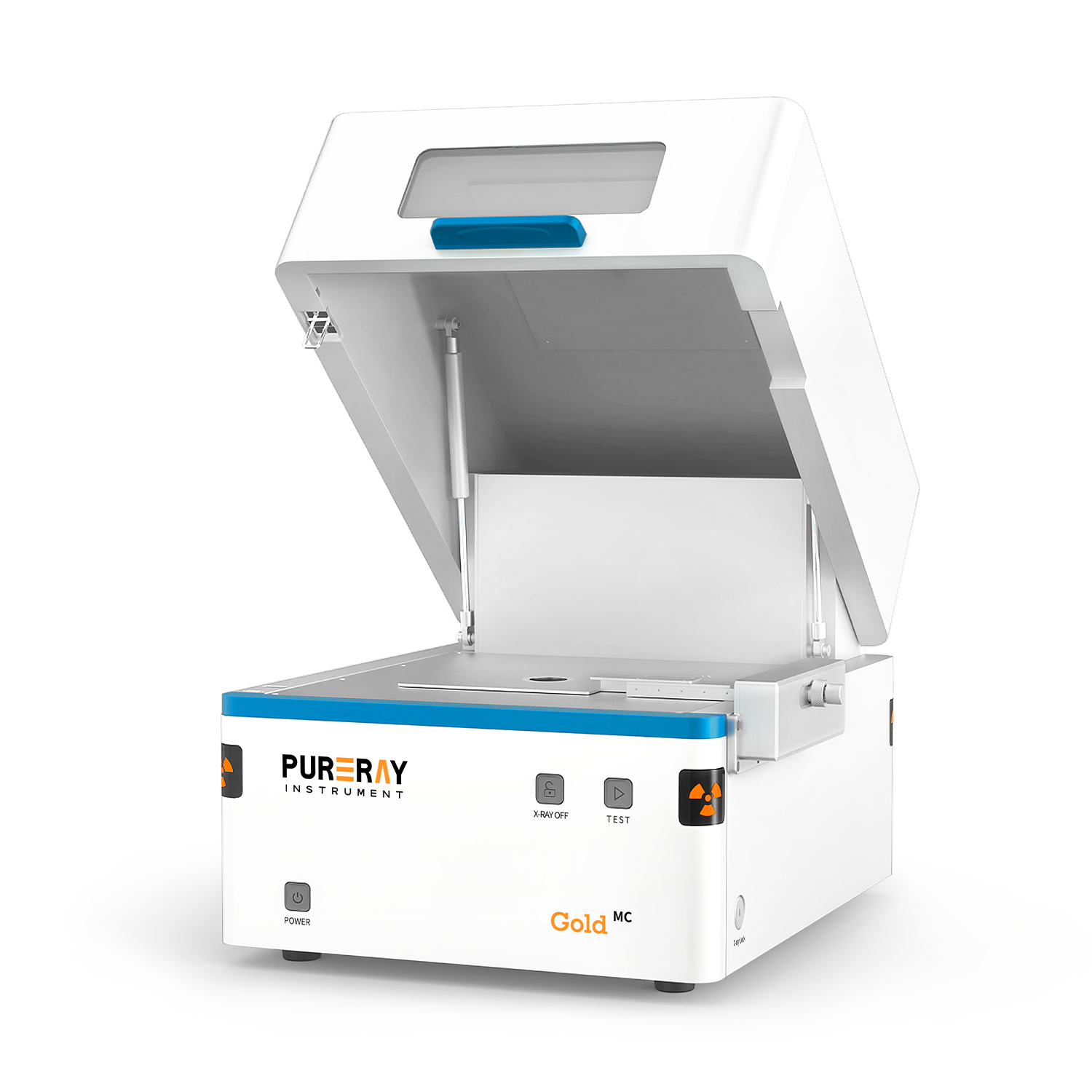

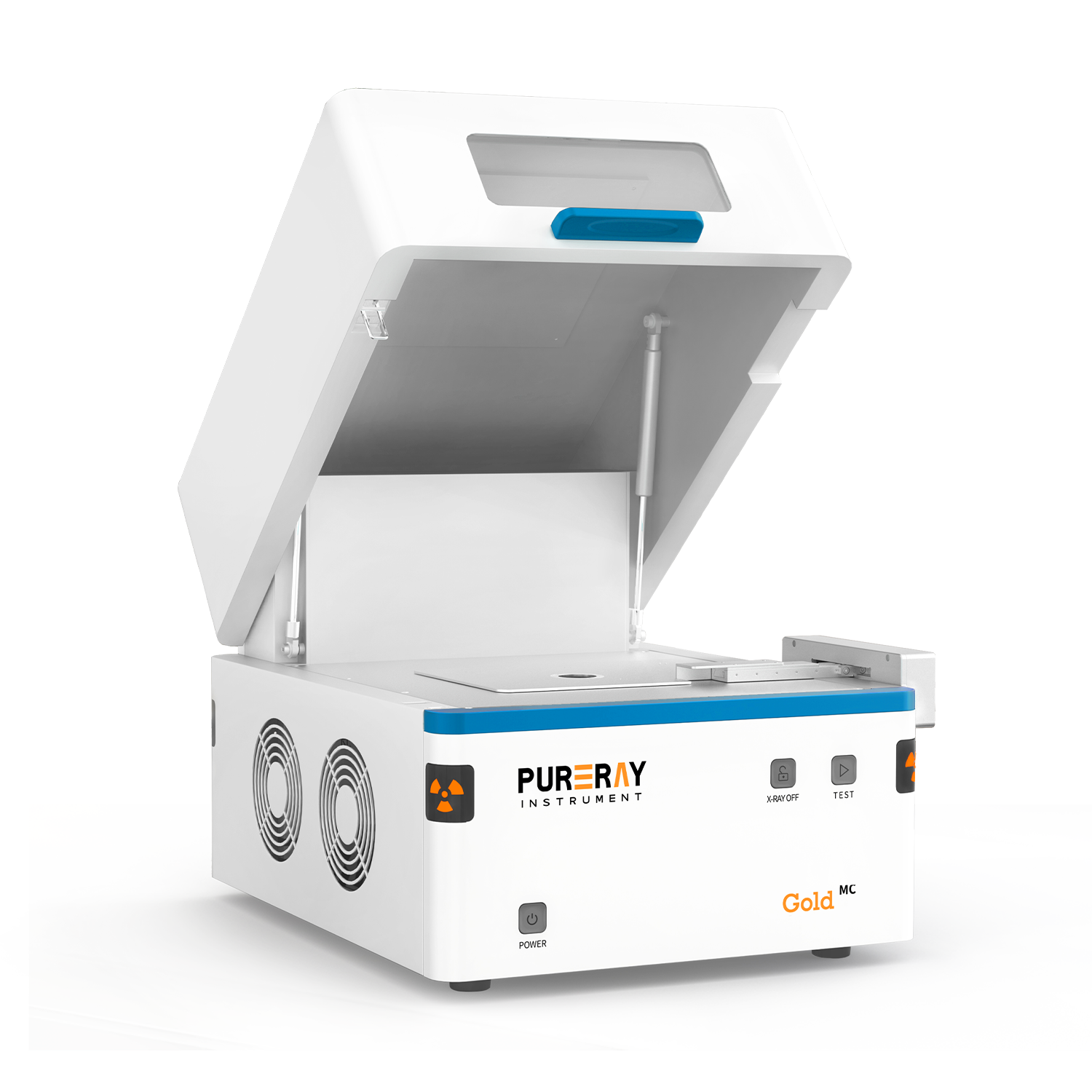

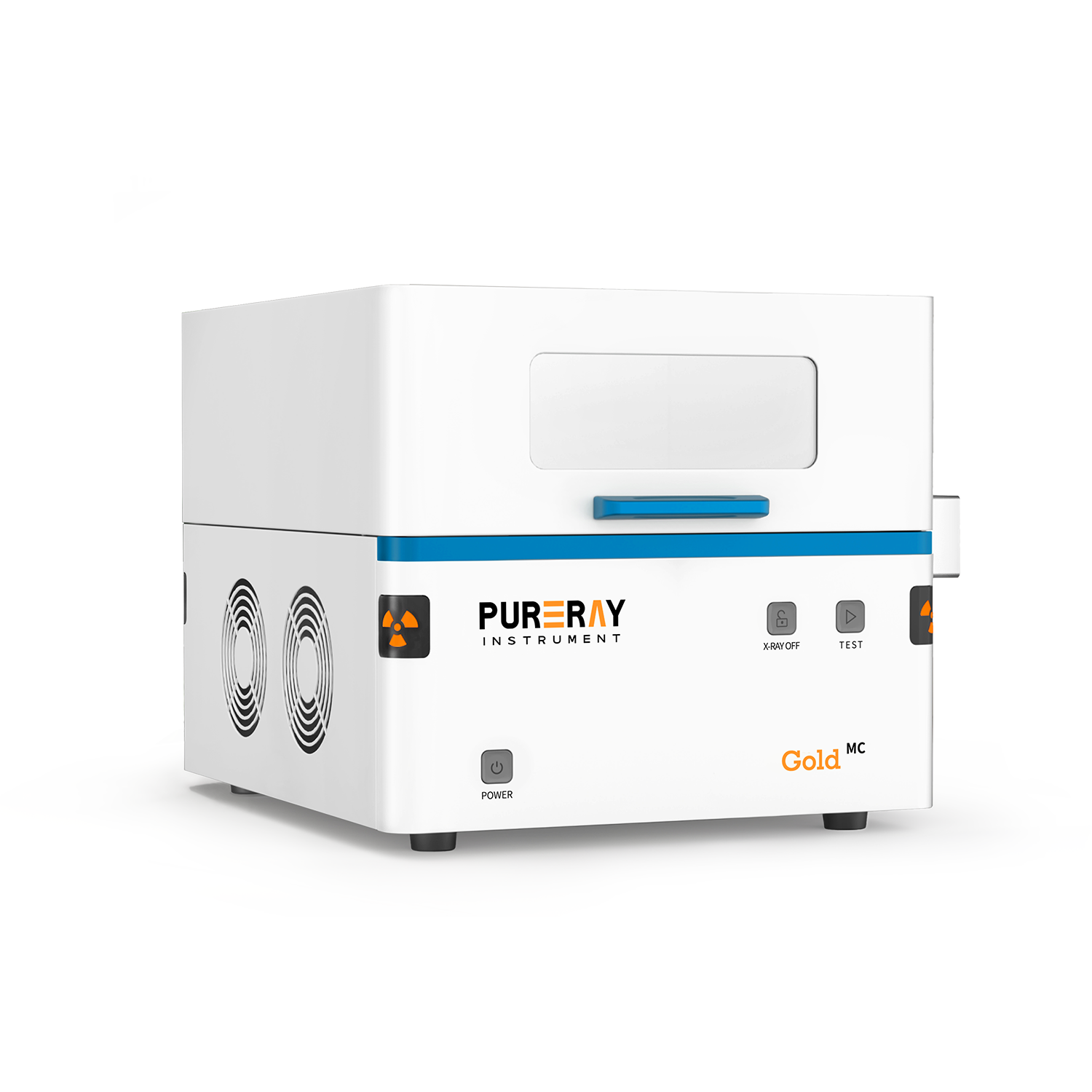

GoldMC is an X-ray fluorescence spectrometer developed by PURERAY Instrument with an upgraded optical path. It can be widely used in precious metal, electroplating, gemstone and other industries. The analyzer features an USA AMPTEK customized Si-PIN detector, an embedded computer with a 10-core CPU and the Smart FP algorithm. Besides, it adopts the creative vertical optical path to obtain a smaller real focus. The cost-effective instrument can fast and accurately analyze precious metals, gemstones, coatings, and ion concentrations. The MC model supports dual collimators for broader applications.
| Detector | USA AMPTEK customized Si-PIN | Collimator | Φ0.8mm/Φ2.0mm |
|---|---|---|---|
| Detector area: 6mm2 | Input Voltage | AC100～240V，50Hz | |
| Resolution: 145±5eV | Package size | 625*560*480mm | |
| Embedded computer | Intel i3 10-core | Machine size | 460*522*368mm |
| HV power supply | 50KV/1mA digital HV | Test chamber size | 374*344*155mm |
| X-ray tube | 50KV/1mA | Rated power | 150W |
| Window material: aluminium | Gross weight | 57KG | |
| Target material: wolfram | Net weight | 42KG | |
| Focus: Φ0.3mm | Noise | ＜65dB |
