High cost-effective | Premium performance
Analysis range: Al (No.13)~U (No.92)
Analyze up to 30 elements at the same time.
RoHS 1.0 substances detection
Halogen detection
EN71 substances detection
Analysis range: 1ppm (ideal situation)
Precision: RSD≤1.5%
Analysis sample: RoHS/Base metal/Liquid/ Mineral
Support the multi-point continuous test with high efficiency.
Optional equipment: an automatic tablet press machine

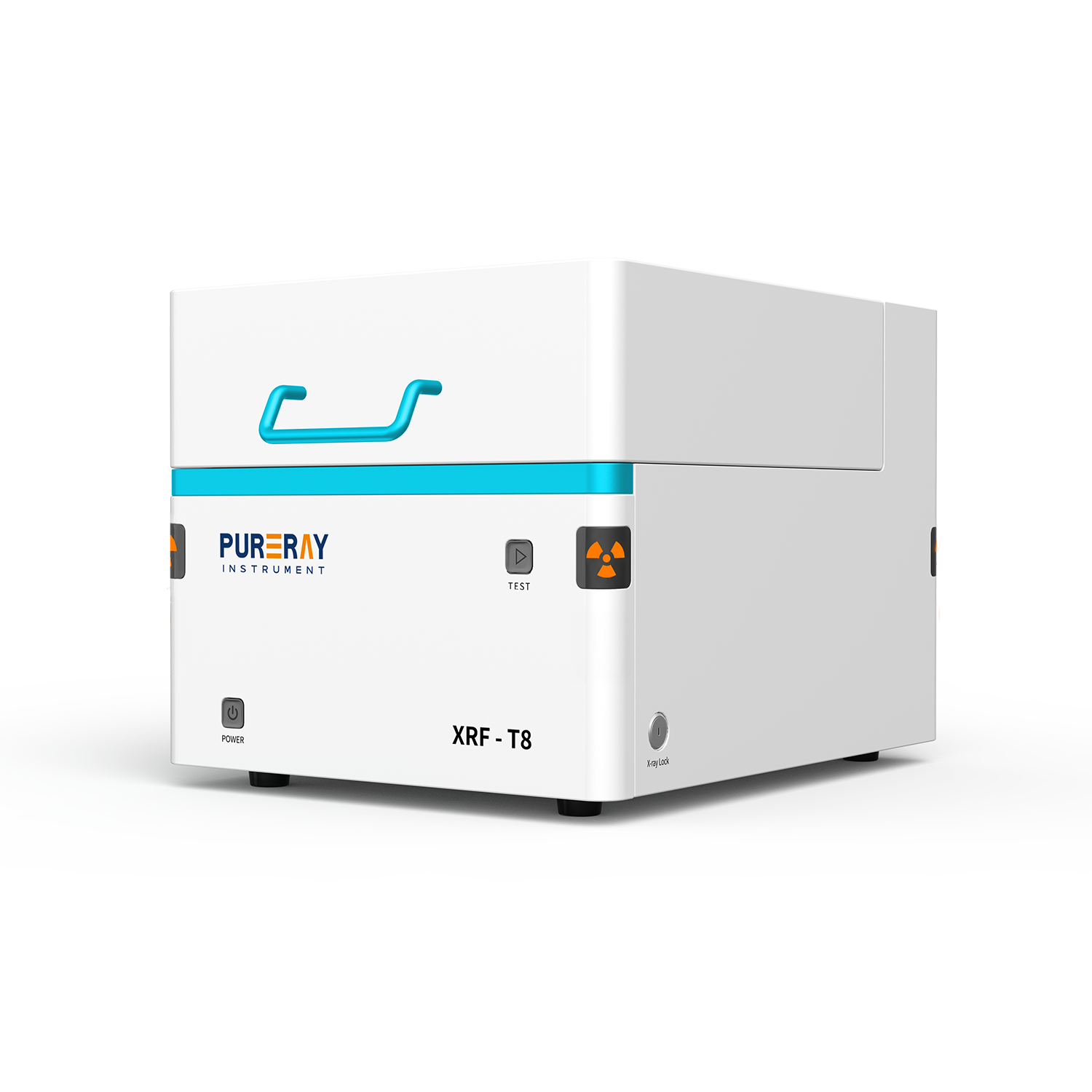

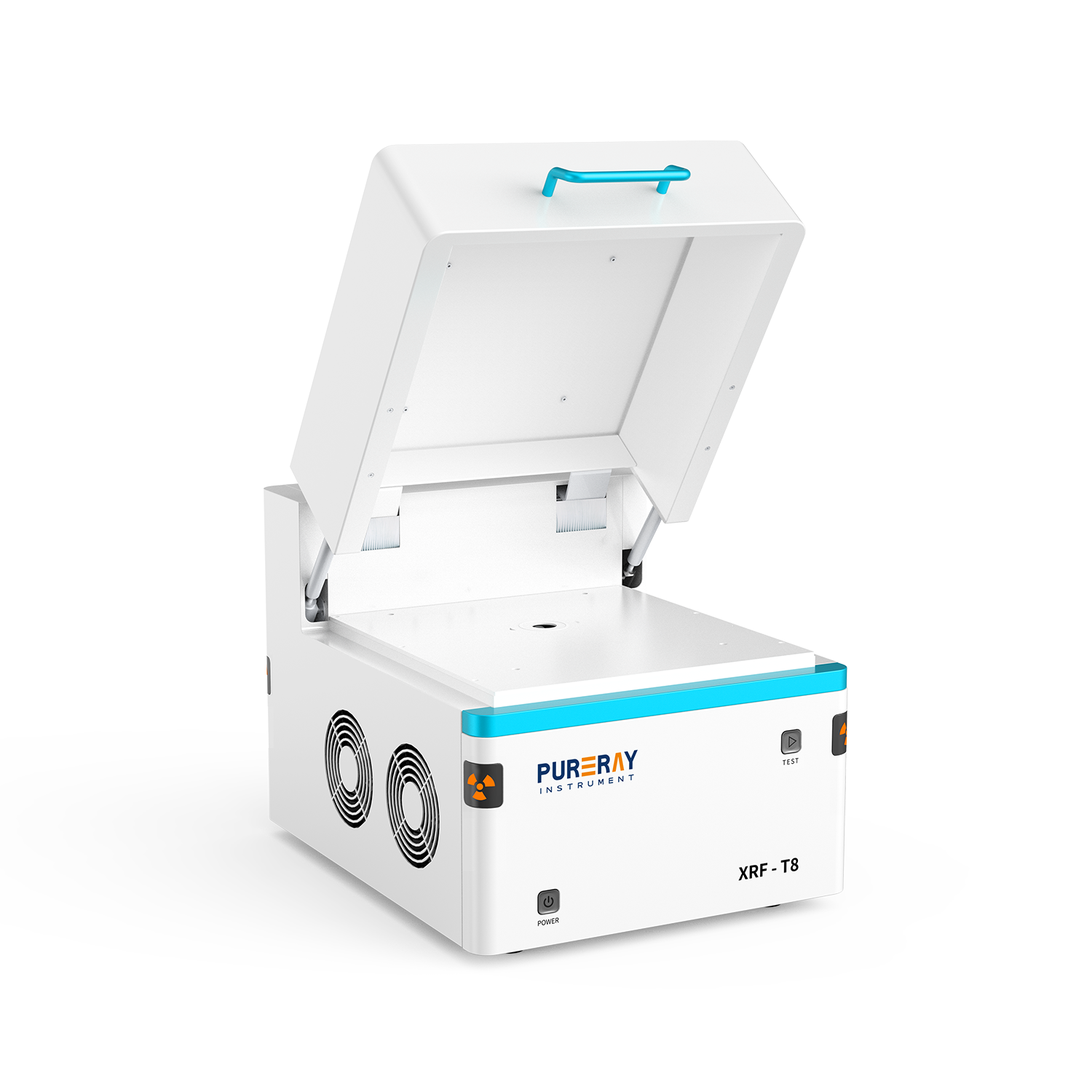

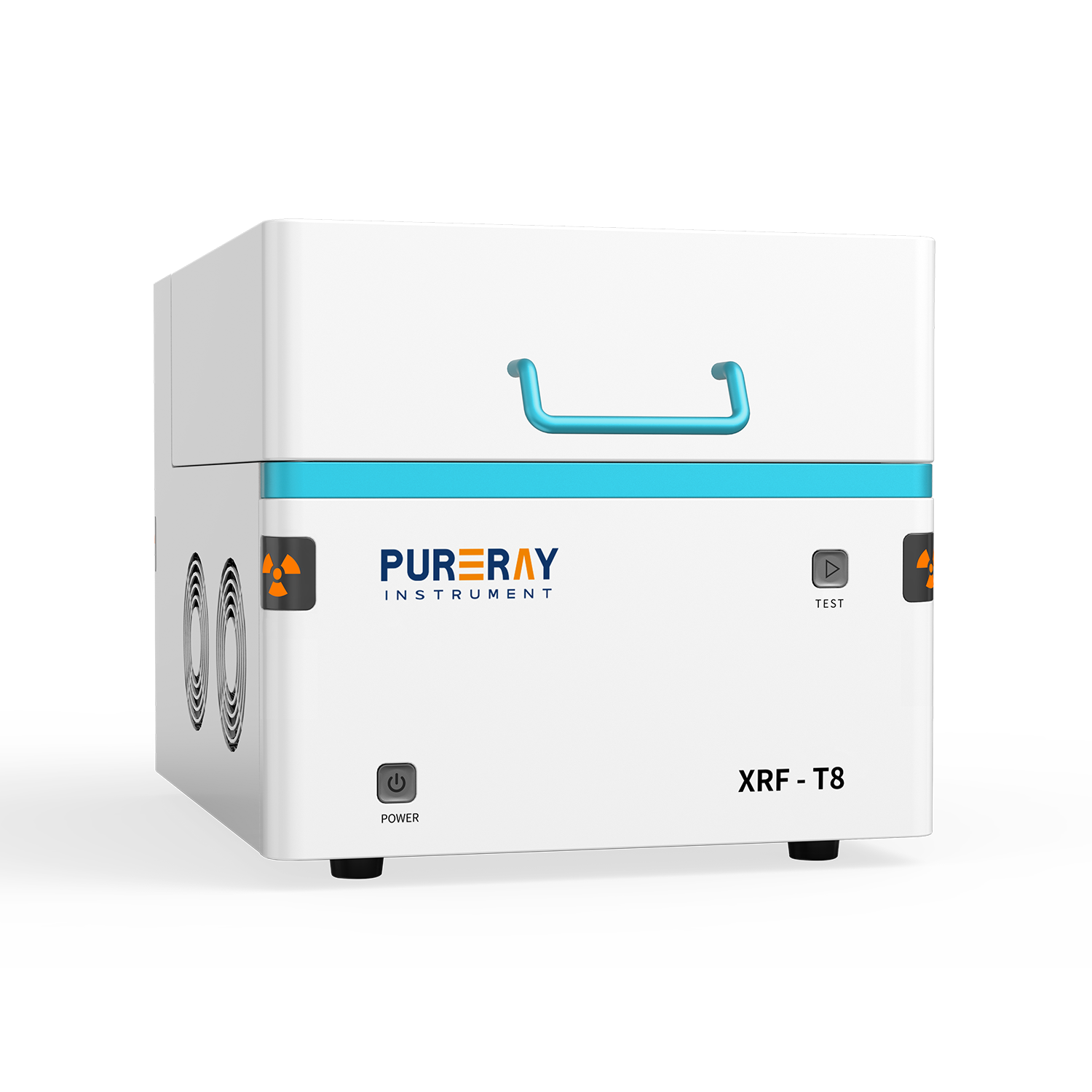

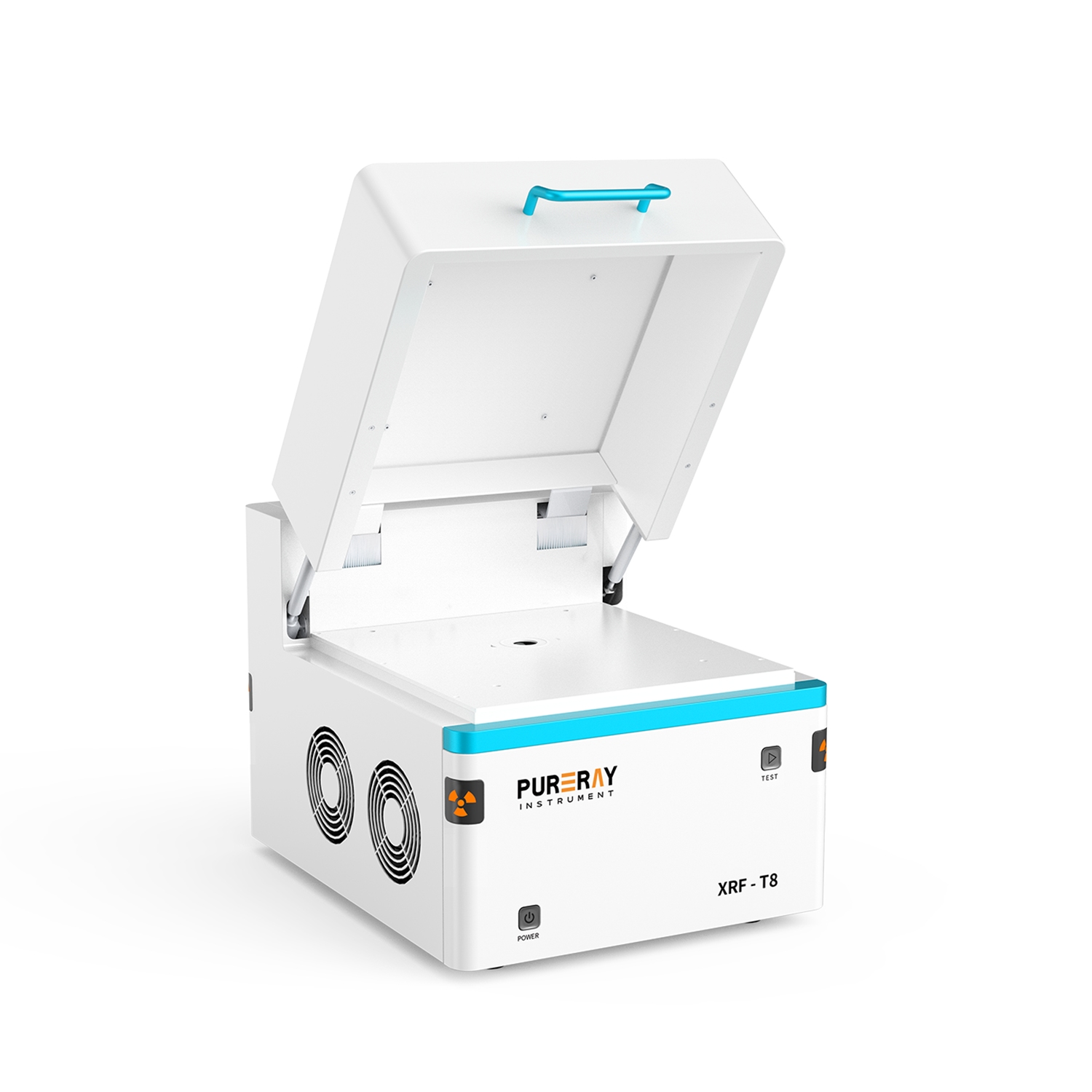

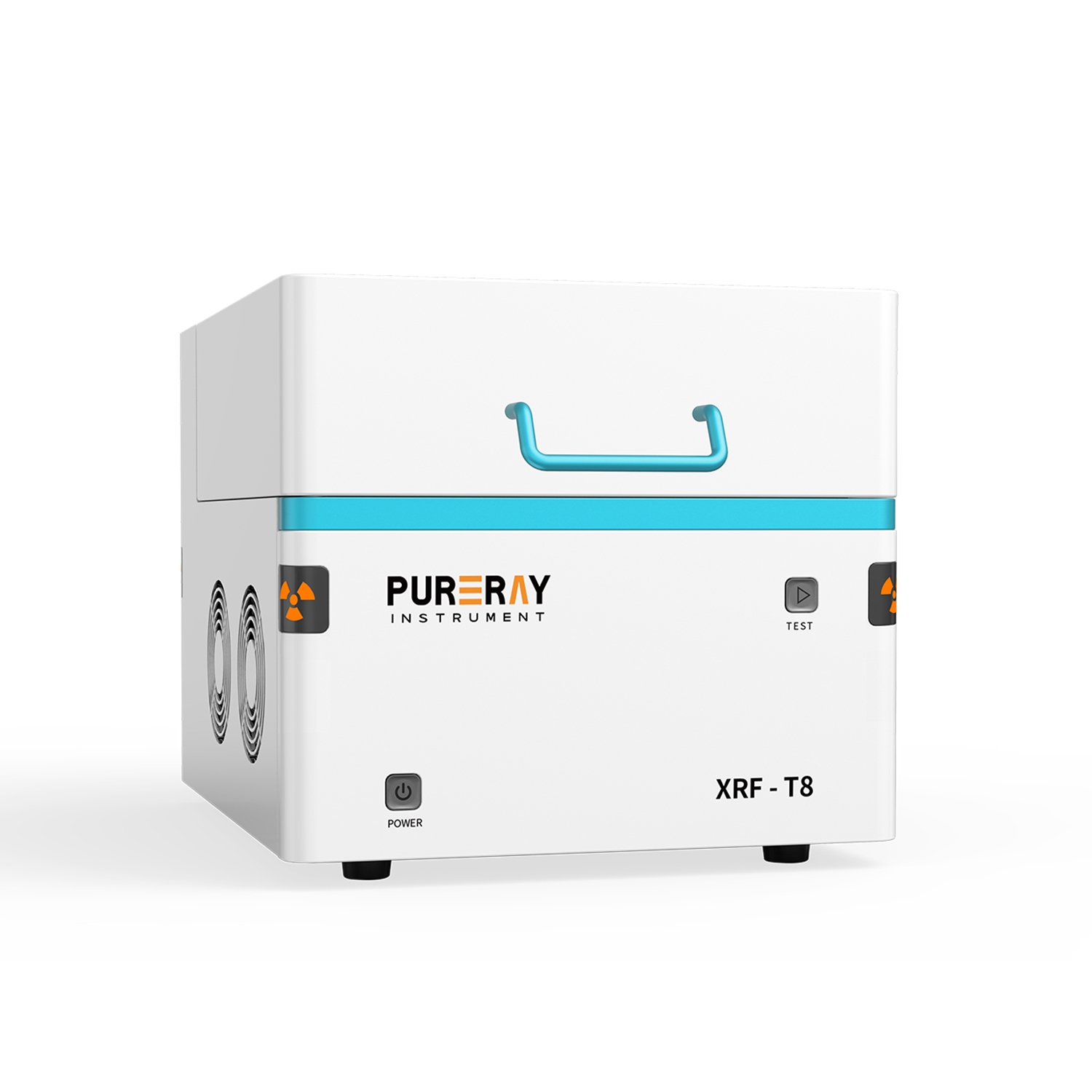

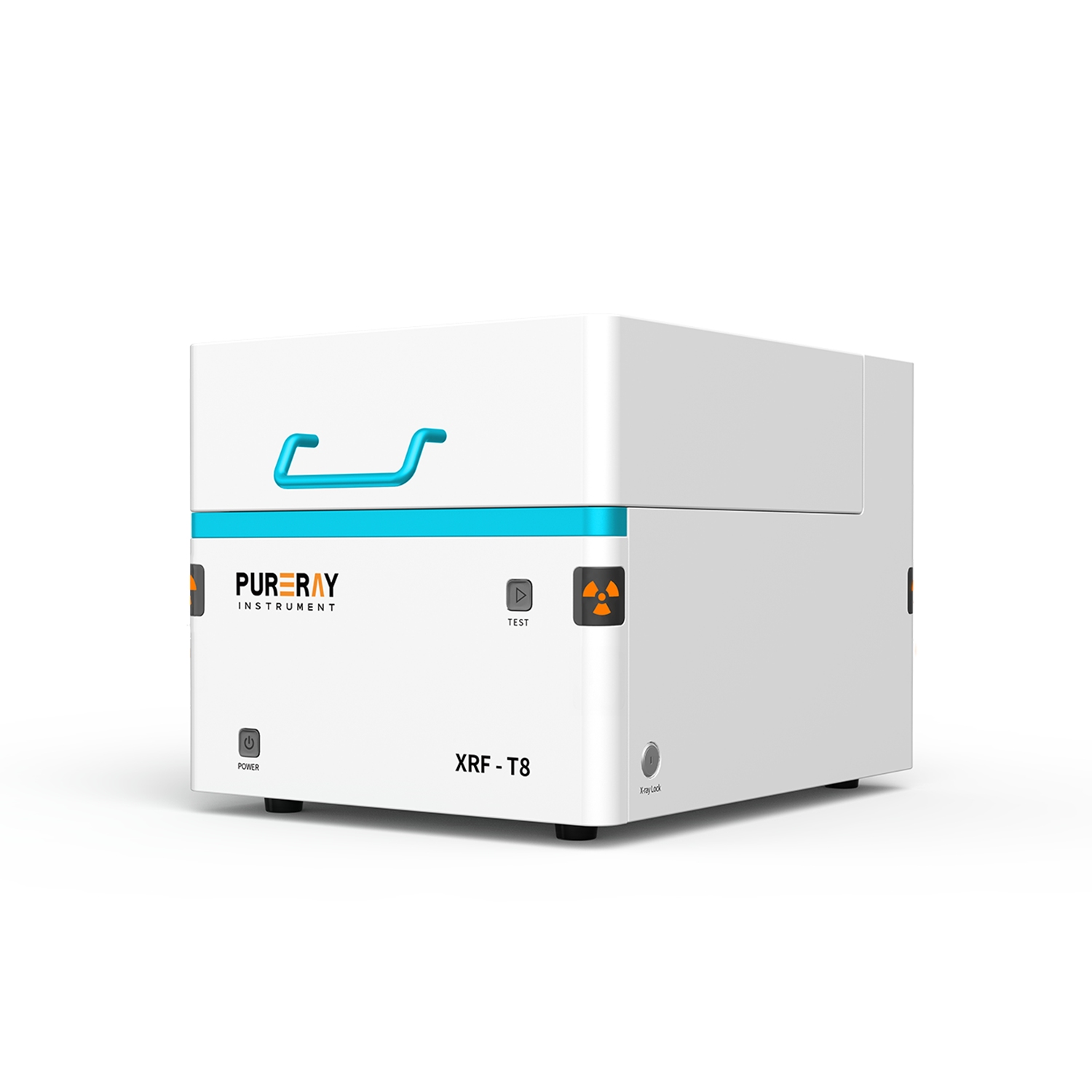

XRF-T8 is a high-end X-ray fluorescence spectrometer specifically designed for environmental directives such as halogen-free, RoHS and EN71. The analyzer haves a wide range of applications and high accuracy since it is equipped with an USA AMPTEK customized Fast-SDD detector and the smart FP algorithm. It can not only analyze alloy grades, liquid, mineral powder and heavy metal in soil, but also detect hazardous substances such as lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBBs) and polybrominated diphenyl ethers (PBDEs). The instrument offers fast, stable and accurate testing.




Detector | USA AMPTEK customized Fast-SDD | Collimator | Φ1.5mm/Φ2.0mm/Φ3.0mm |
---|---|---|---|
Detector area: 25mm2 | Input Voltage | AC100~240V, 50Hz | |
Resolution: 125±5eV | Package size | 615*555*480mm | |
Embedded computer | Intel i5 12-core | Machine size | 400*546*368mm |
HV power supply | 50KV/1mA digital HV | Test chamber size | 373*343*120mm |
X-ray tube | 50KV/1mA | Rated power | 200W |
Window material: beryllium | Gross weight | 58KG | |
Target material: wolfram | Net weight | 43KG | |
Focus: Φ0.5mm | Noise | <65dB |
