Analysis elements: Al(No.13)~U(No.92)
Analyze up to 30 elements at the same time.
Measure the thickness and composition of 4-layer coatings.
Identify artificial and natural gemstones.
Test Sample: metal/coating/gemstone/liquid/ RoHS/mineral
Precision:
Precious metal: ±0.01% (9999 gold)
Coating: RSD ≤1.5%
Liquid: RSD ≤1.5%
RoHS: 1ppm(ideal situation)
Coating warning
Rhenium and tungsten detection warning
Dual collimators and multiple filters
Automatically calculate the average value and RSD of multiple results.
Comply with ISO23345 and ISO3497.

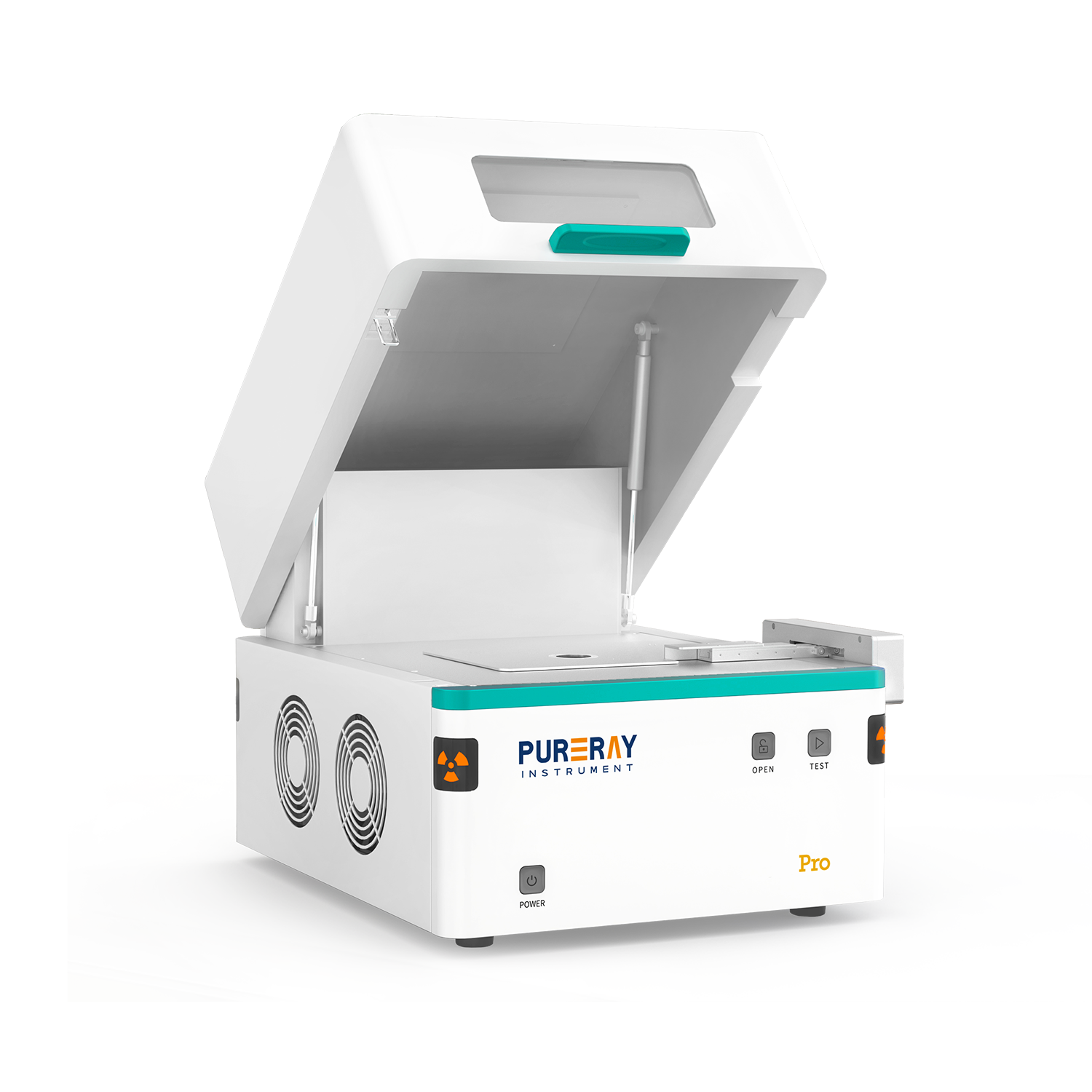

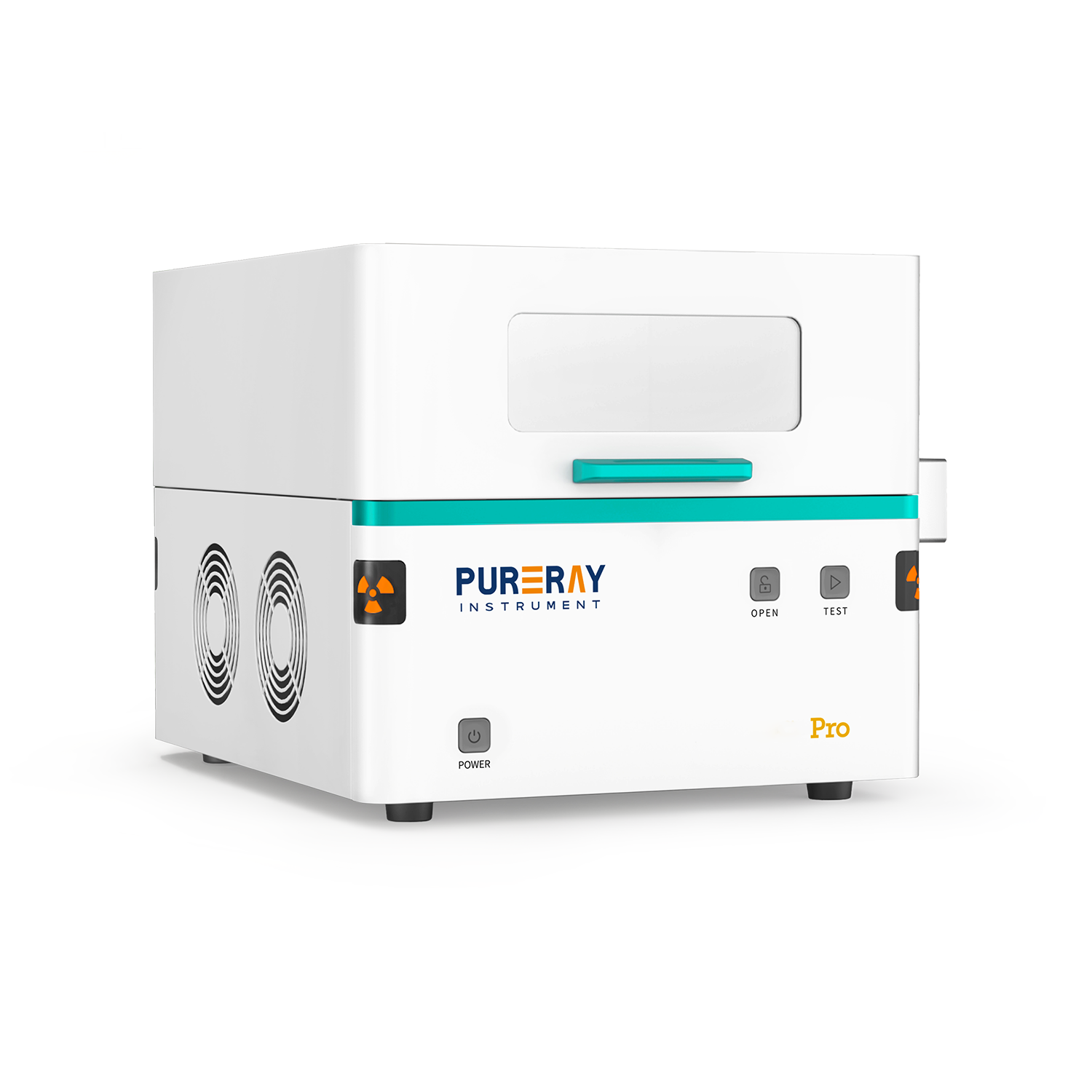

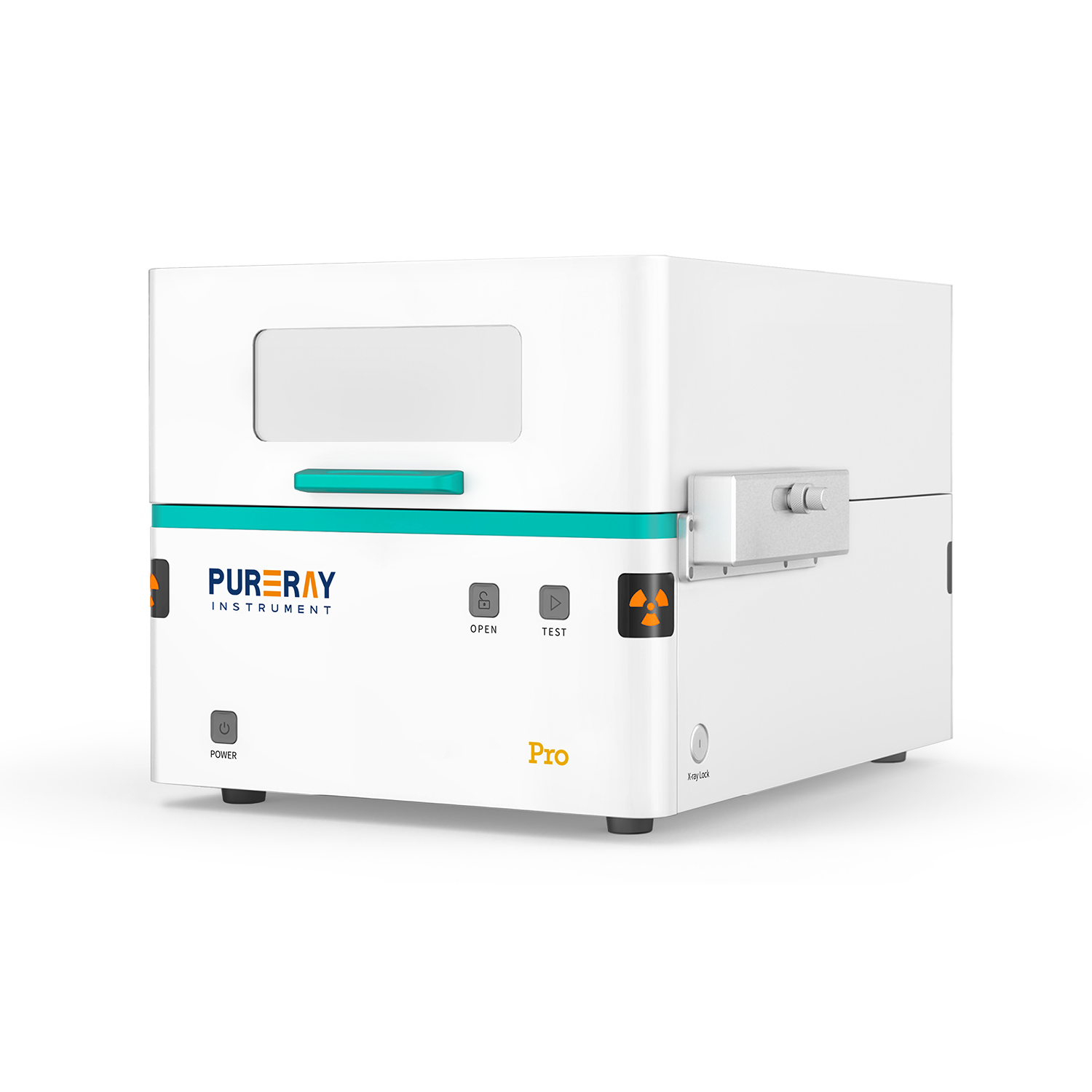

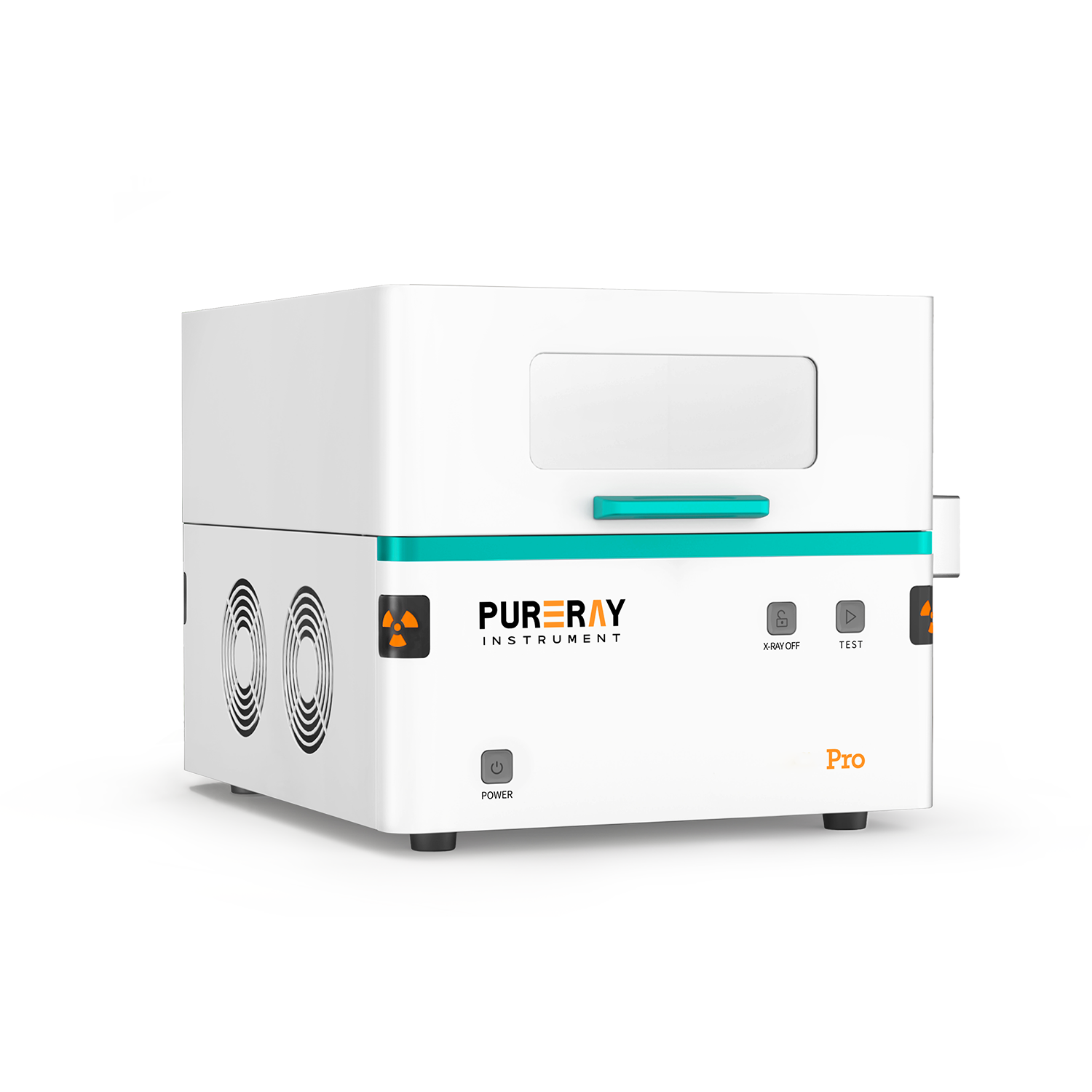

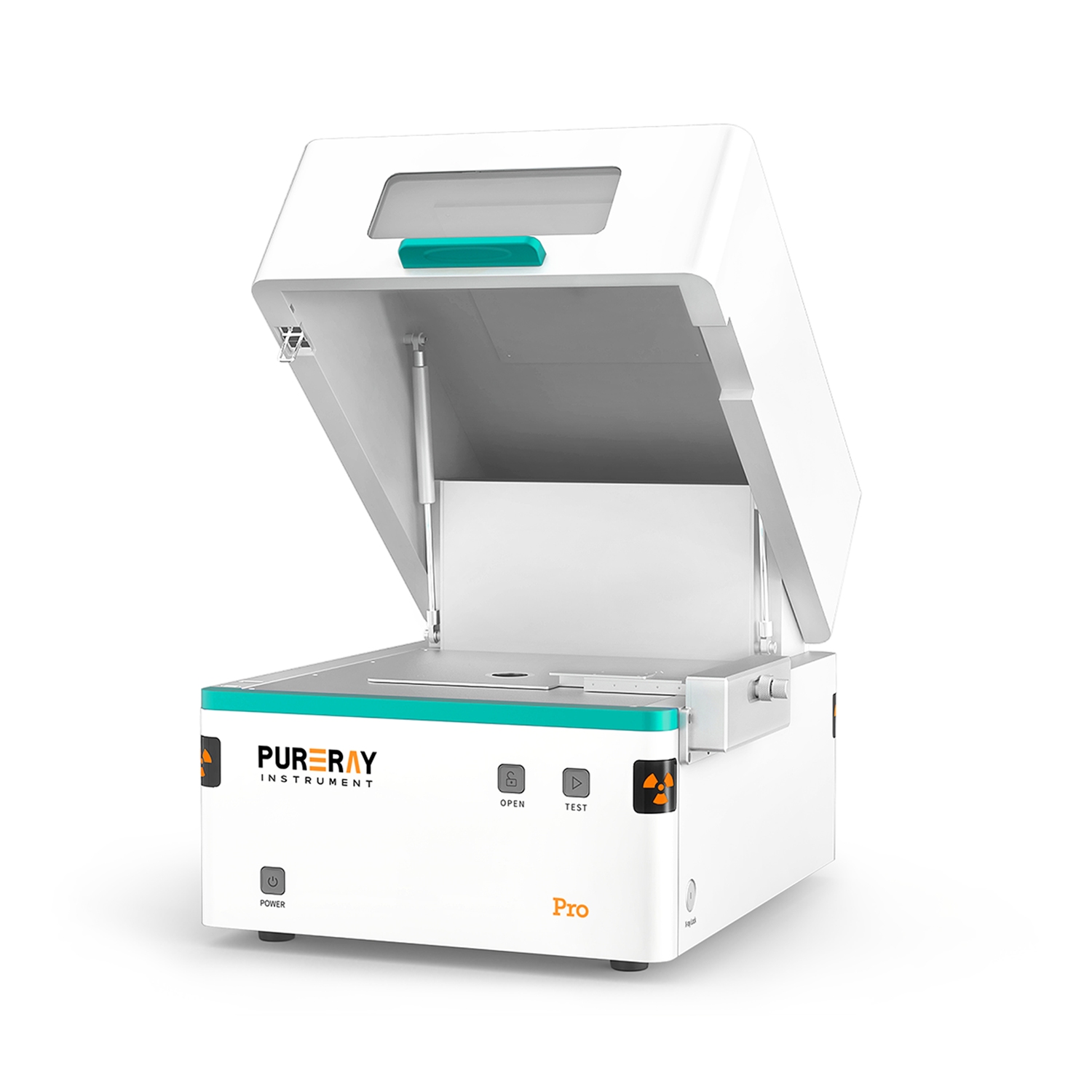

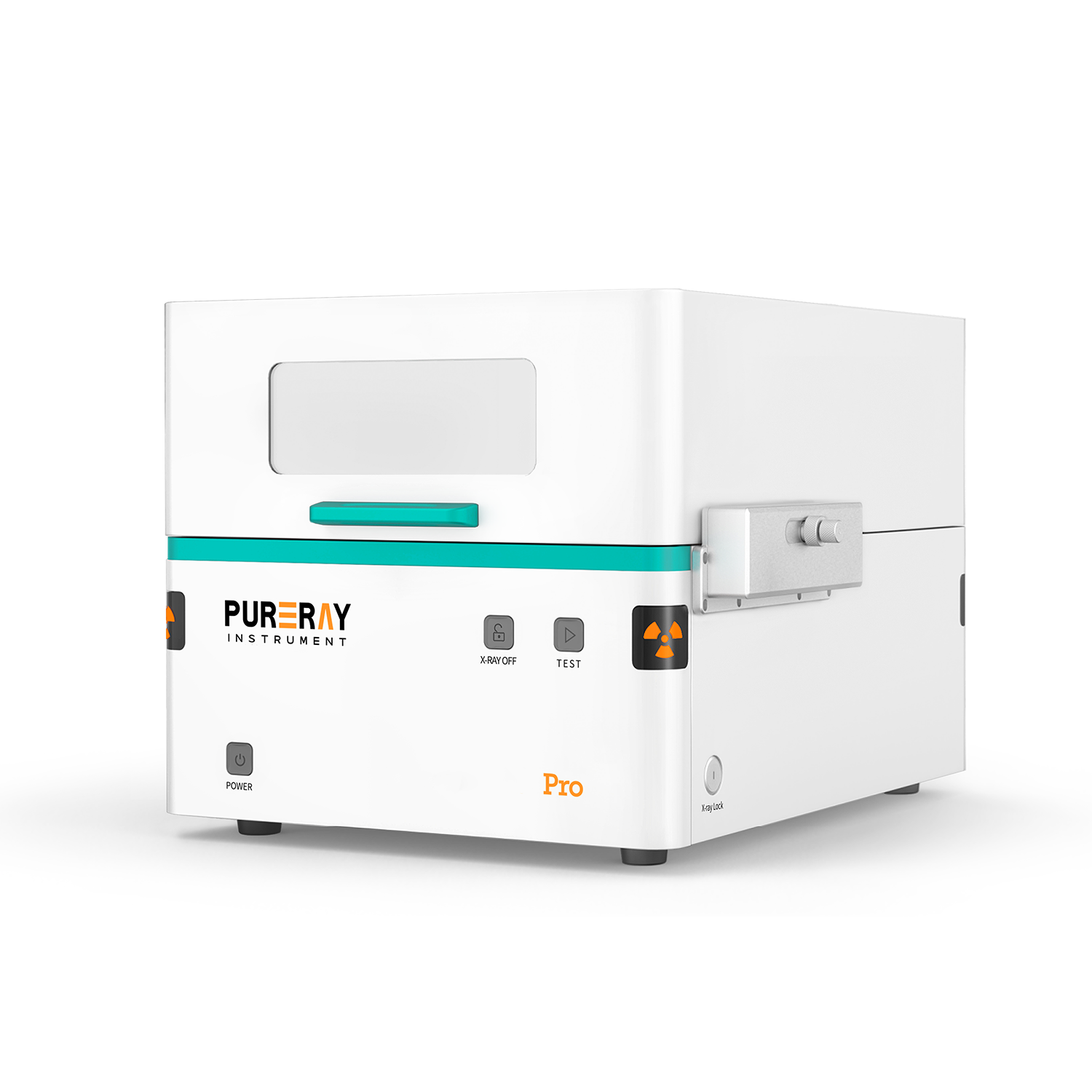

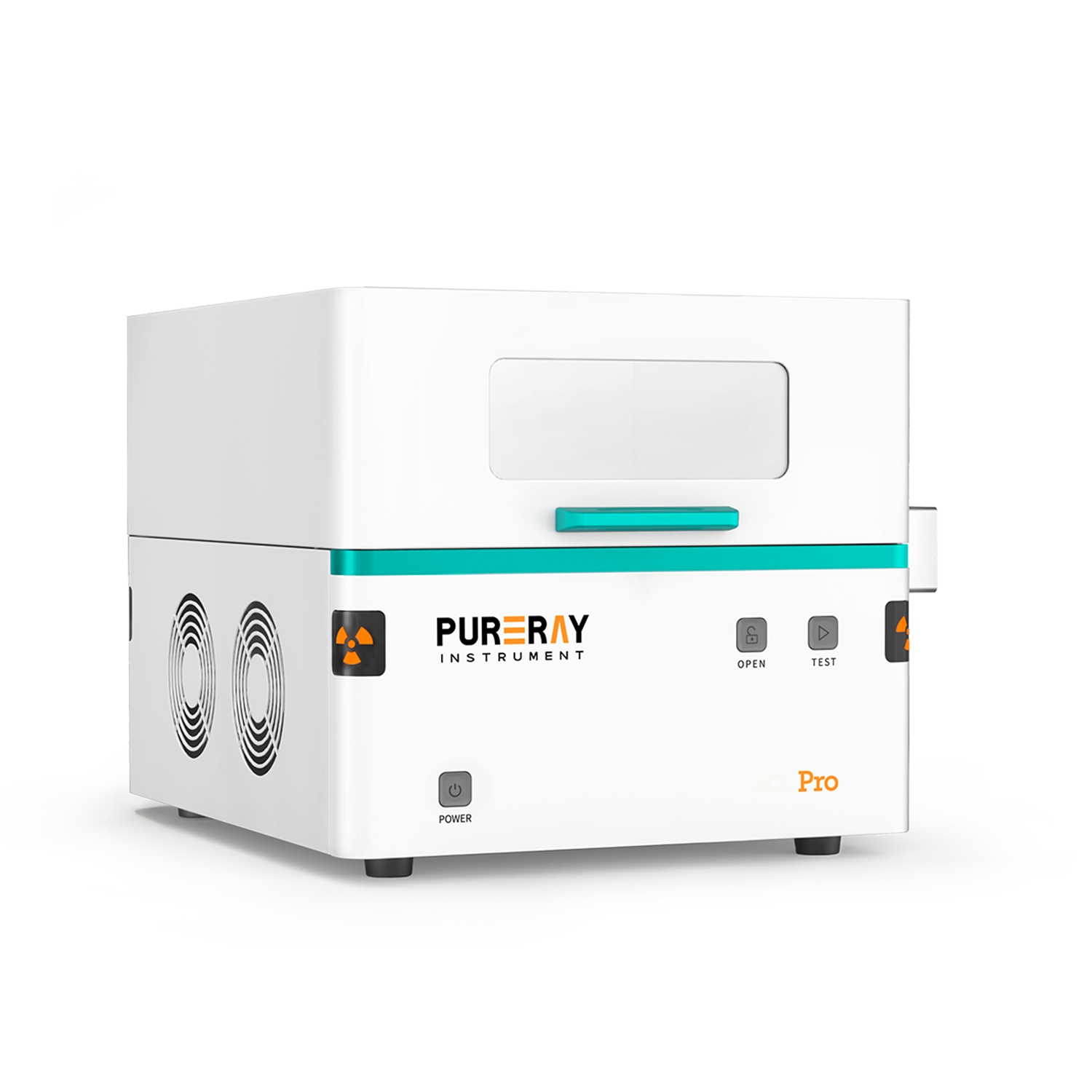

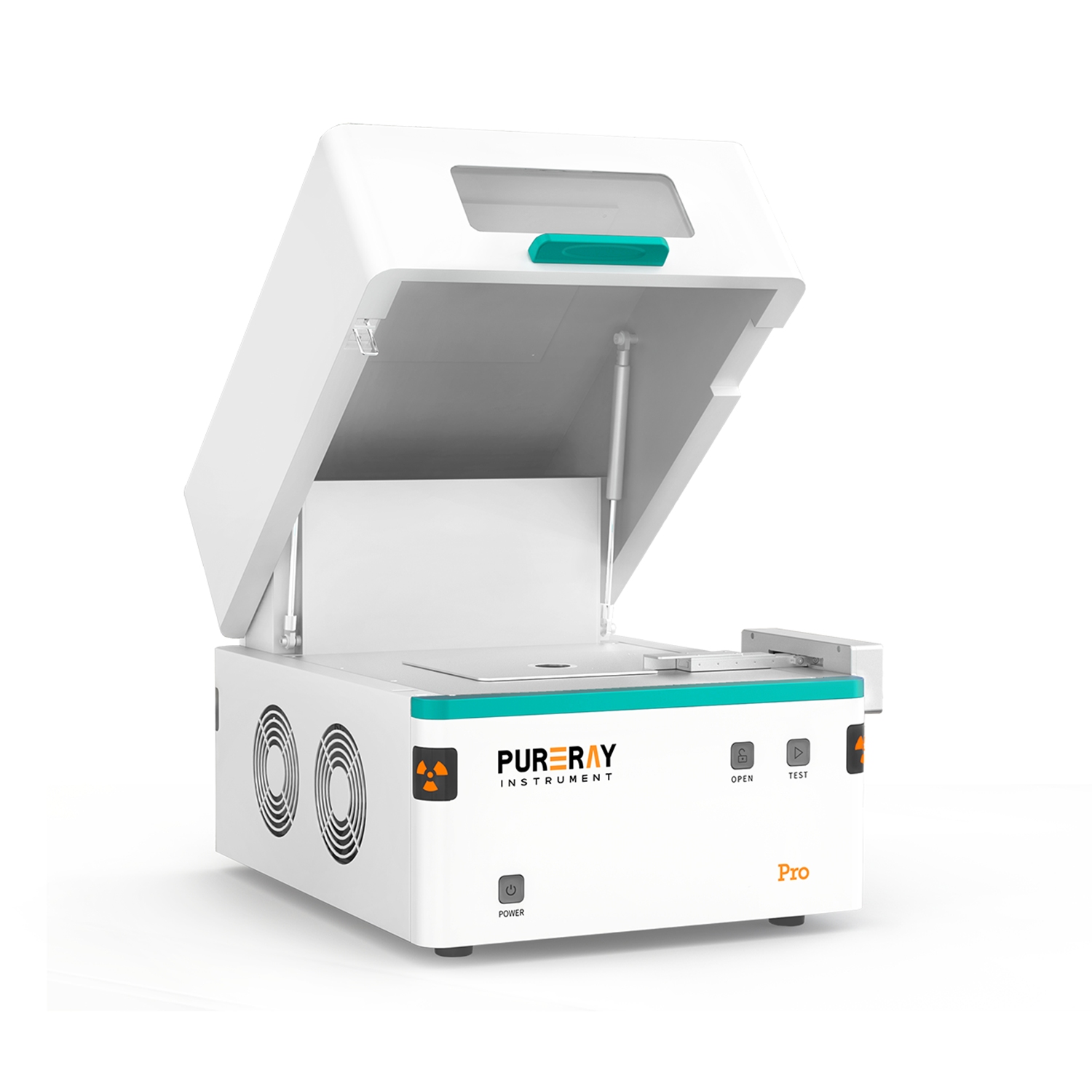

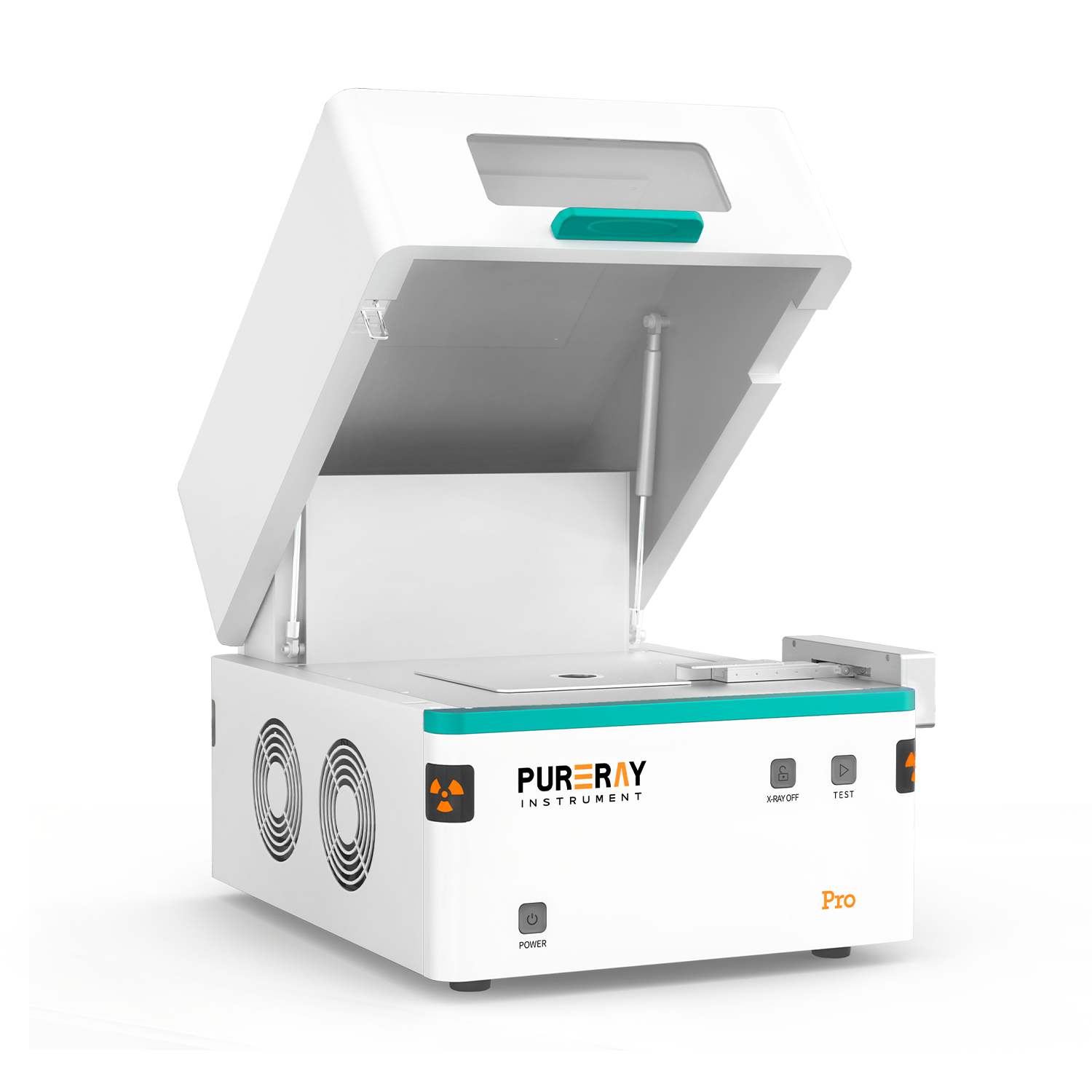

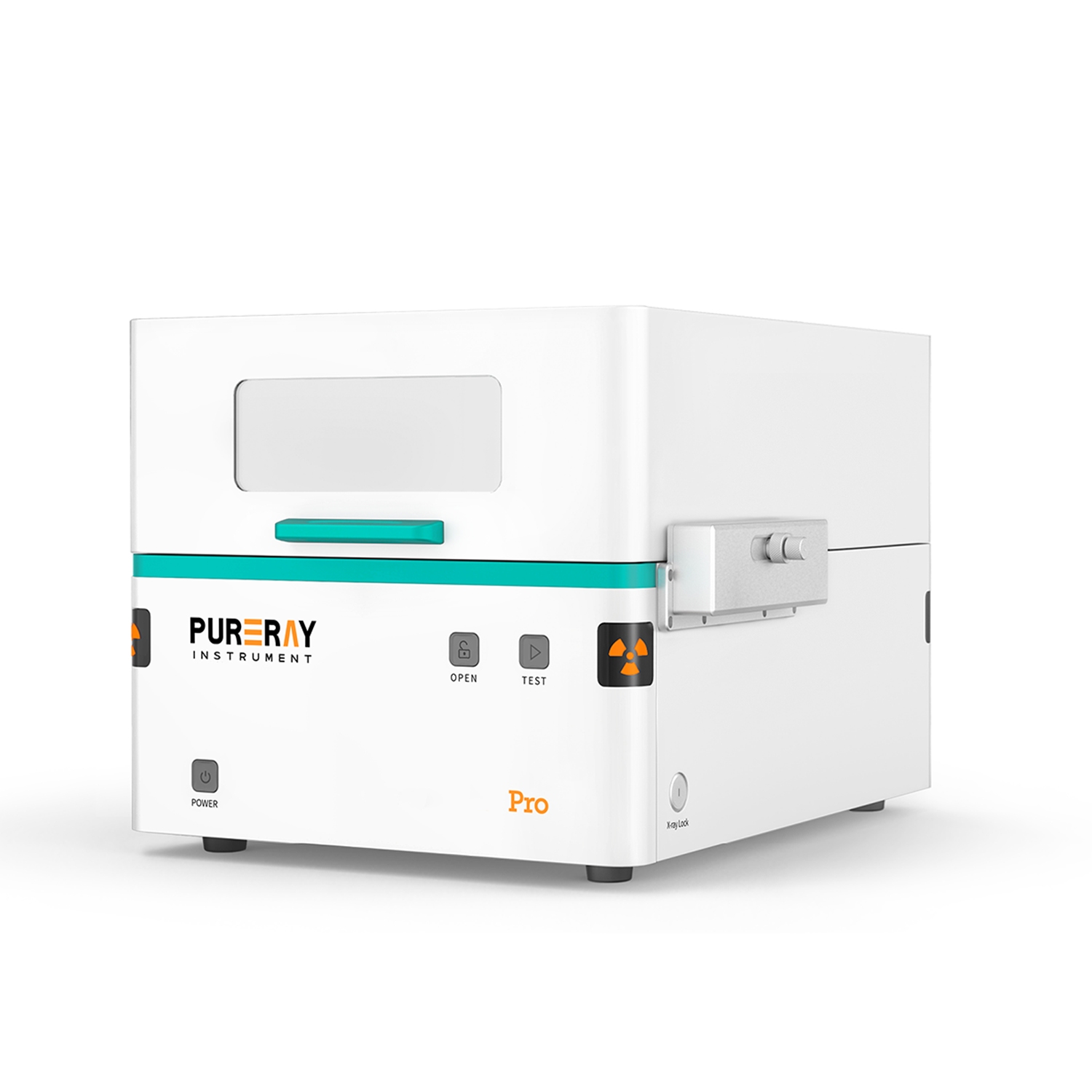

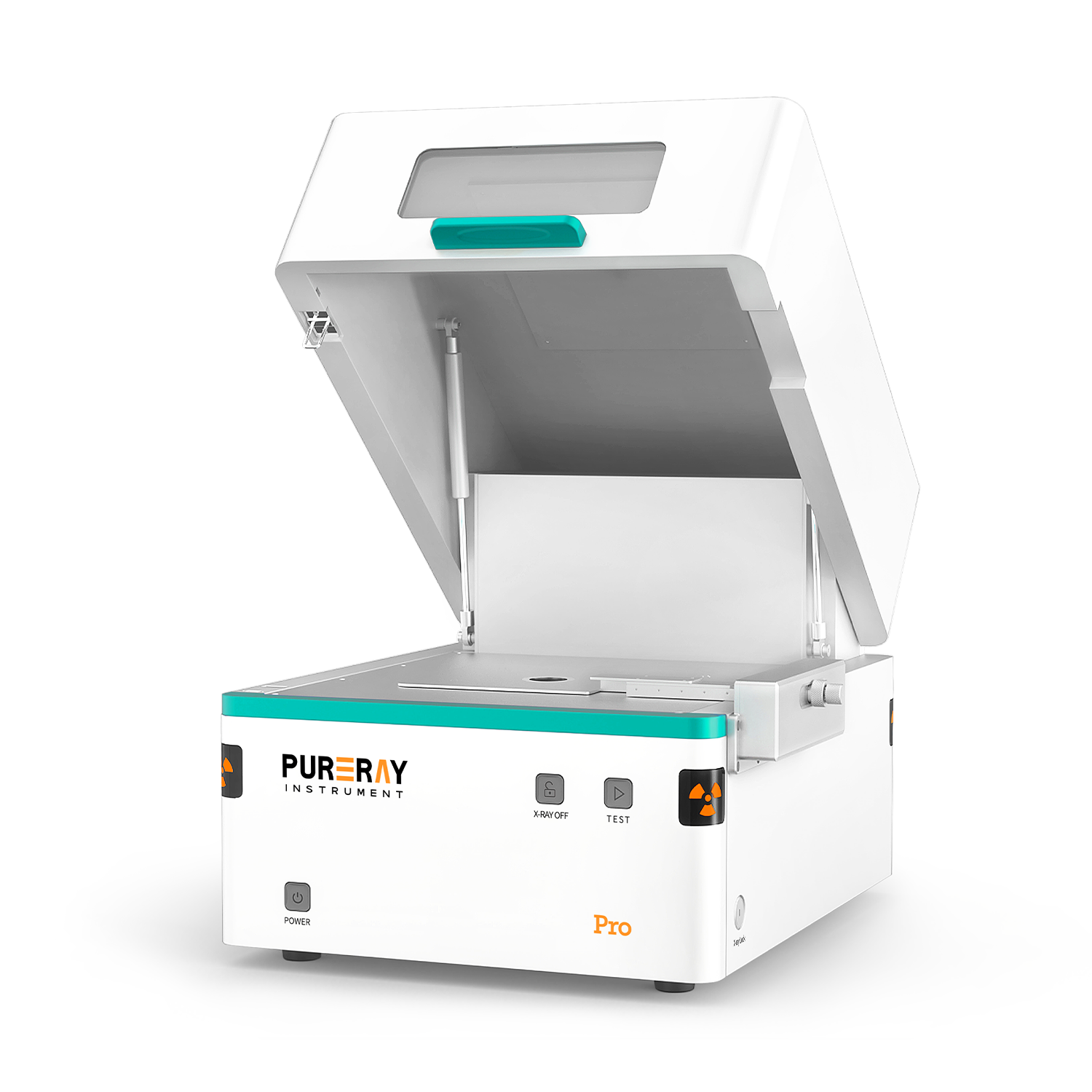

Pro is an upgraded X-ray fluorescence spectrometer developed by PURERAY Instrument. It can be used in precious metal, electroplating, and gemstone and other industries. It features an USA AMPTEK customized Fast-SDD detector, an embedded computer with a 12-core CPU and the Smart FP algorithm. Besides, it applies the creative vertical optical path to obtain a smaller real focus. It can fast and accurately analyze precious metals, gemstones, coatings, ion concentrations, mineral powders and RoHS substances.
| Detector | USA AMPTEK customized Fast-SDD | Collimator | Φ0.5mm/Φ1.5mm |
|---|---|---|---|
| Detector area: 25mm2 | Input Voltage | AC100～240V，50Hz | |
| Resolution: 125±5eV | Package size | 625*560*480mm | |
| Embedded computer | Intel i5 12-core | Machine size | 460*522*368mm |
| HV power supply | 50KV/1mA digital HV | Test chamber size | 374*344*155mm |
| X-ray tube | 50KV/1mA | Rated power | 150W |
| Window material: beryllium | Gross weight | 57KG | |
| Target material: wolfram | Net weight | 42KG | |
| Focus: Φ0.1mm | Noise | ＜65dB |
