Analysis elements: K(No.19) ~U(No.92)
Analyzed up to 30 elements at the same time.
Coating warning
Rhenium and tungsten detection warning
Test Sample: metal/gemstone
Analysis range: 0.010%~99.999%
Precision: ±0.01% (9999 gold)
Support the multi-point continuous test with high efficiency.
Connect the scale for weight readings and calculate prices.
Standard test duration: 15 seconds

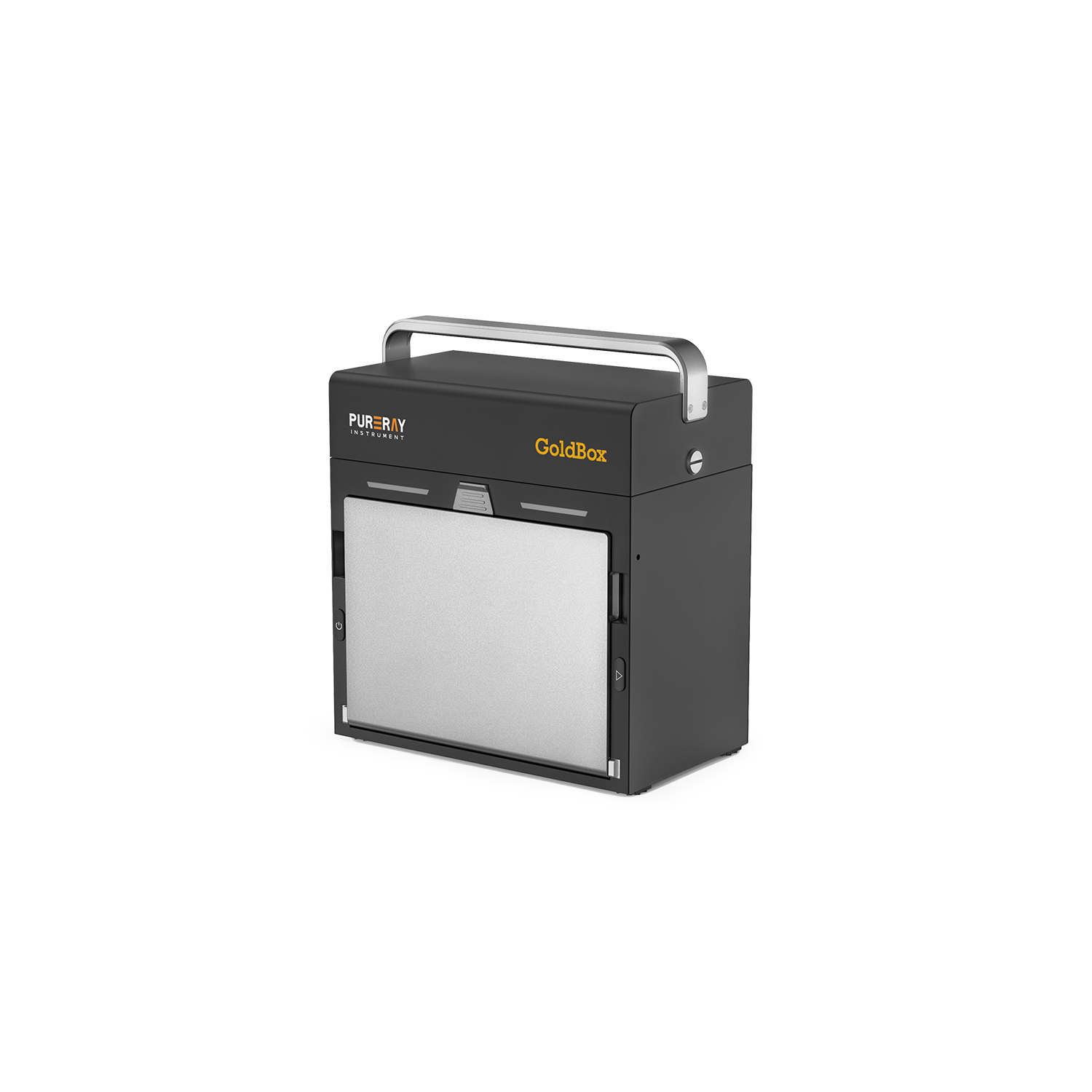

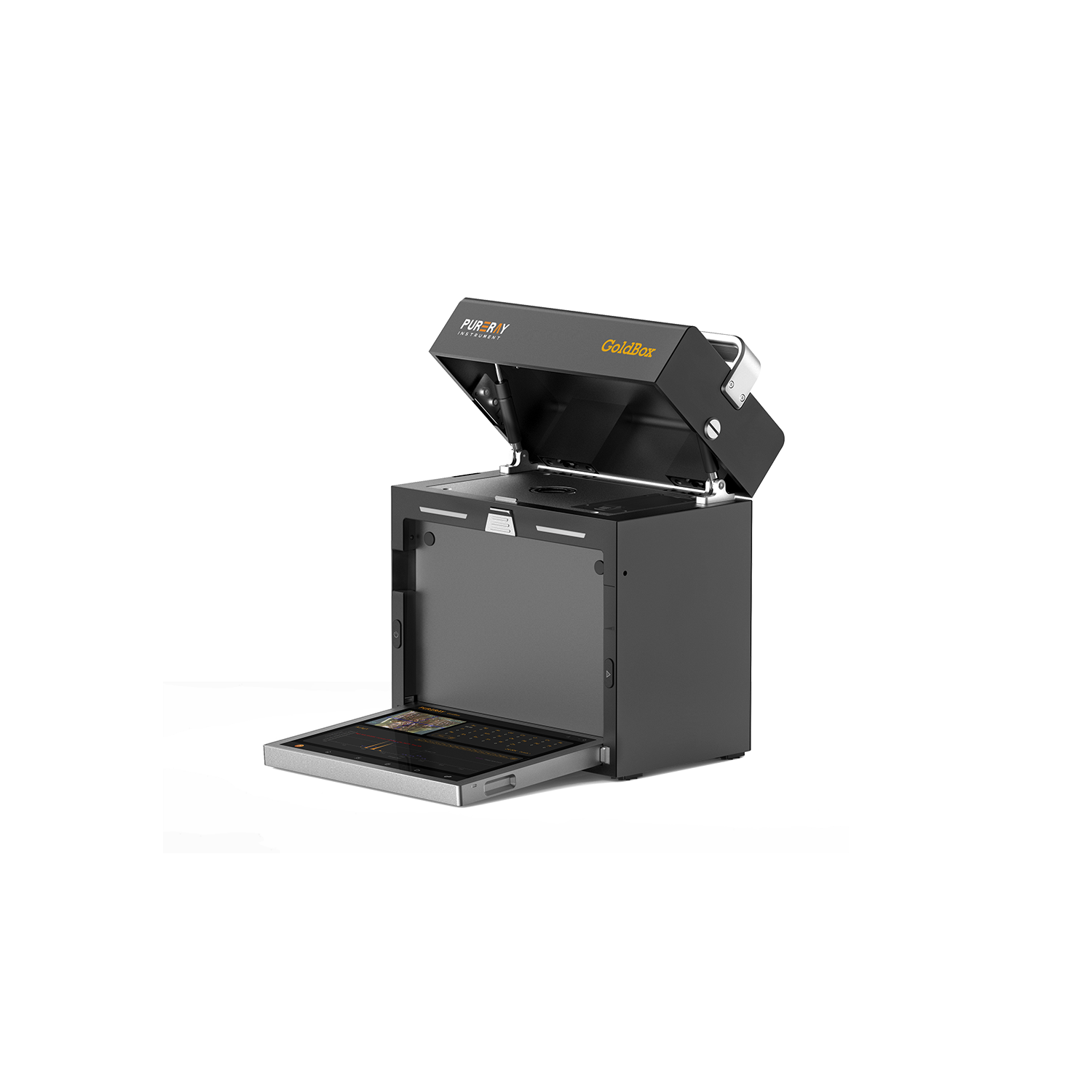

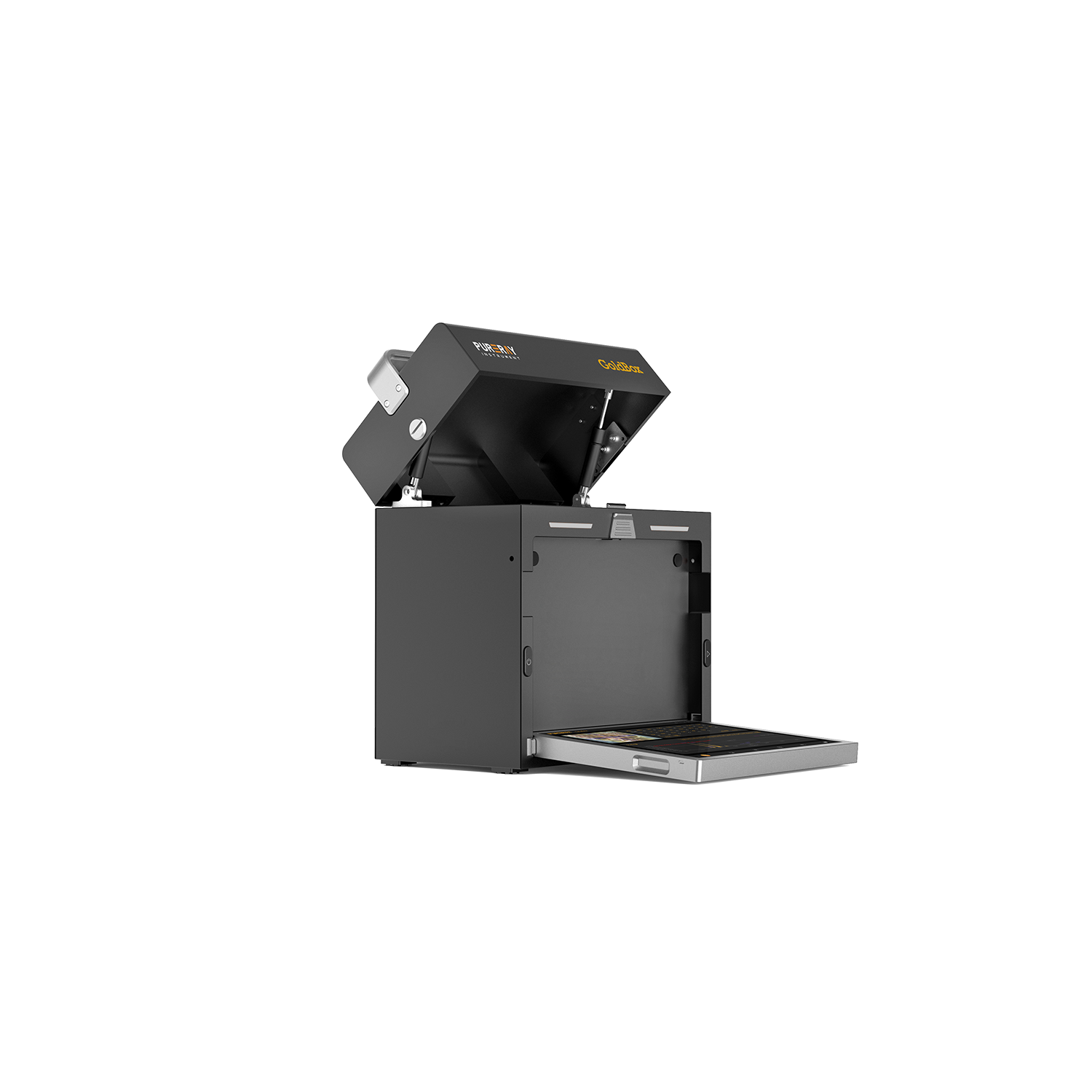

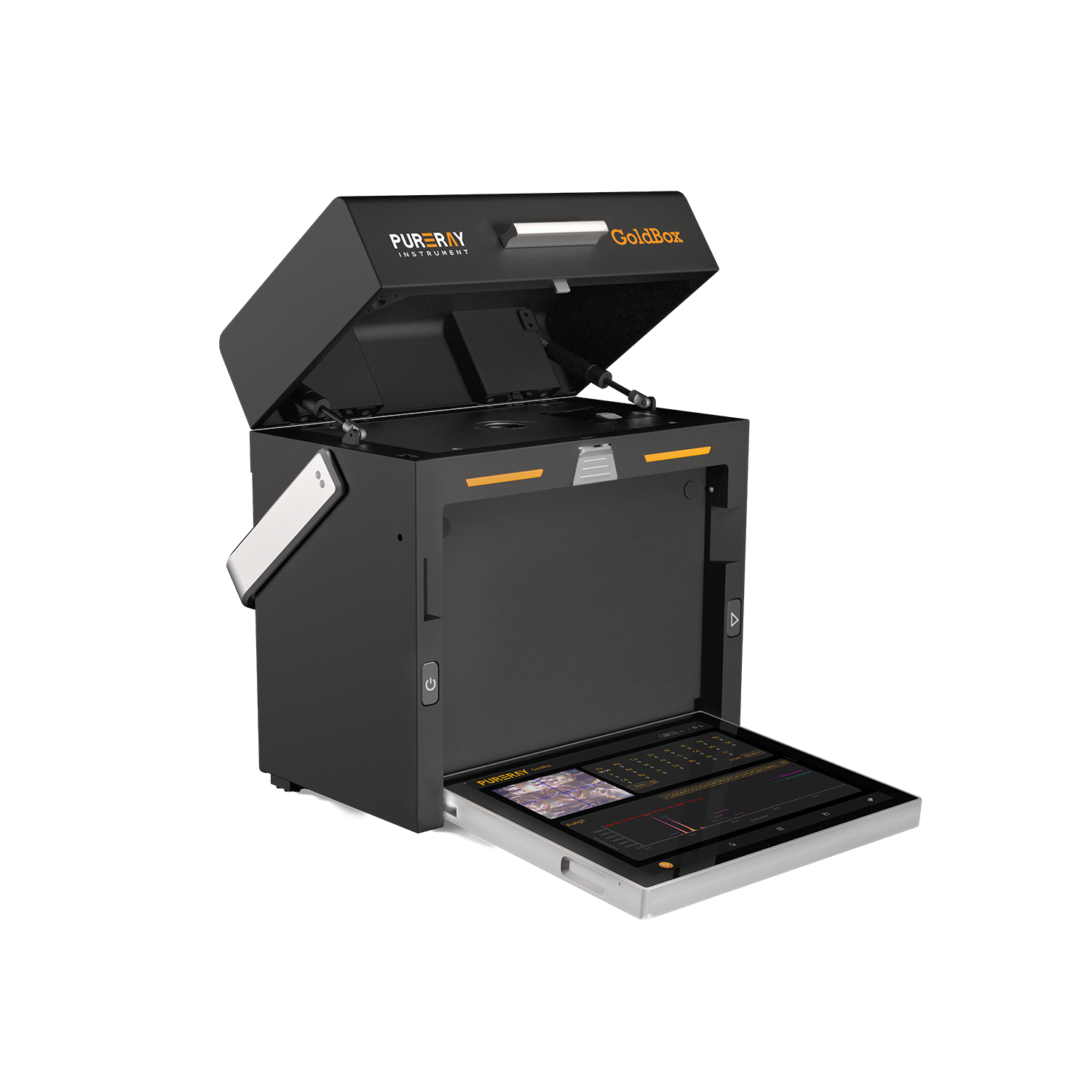

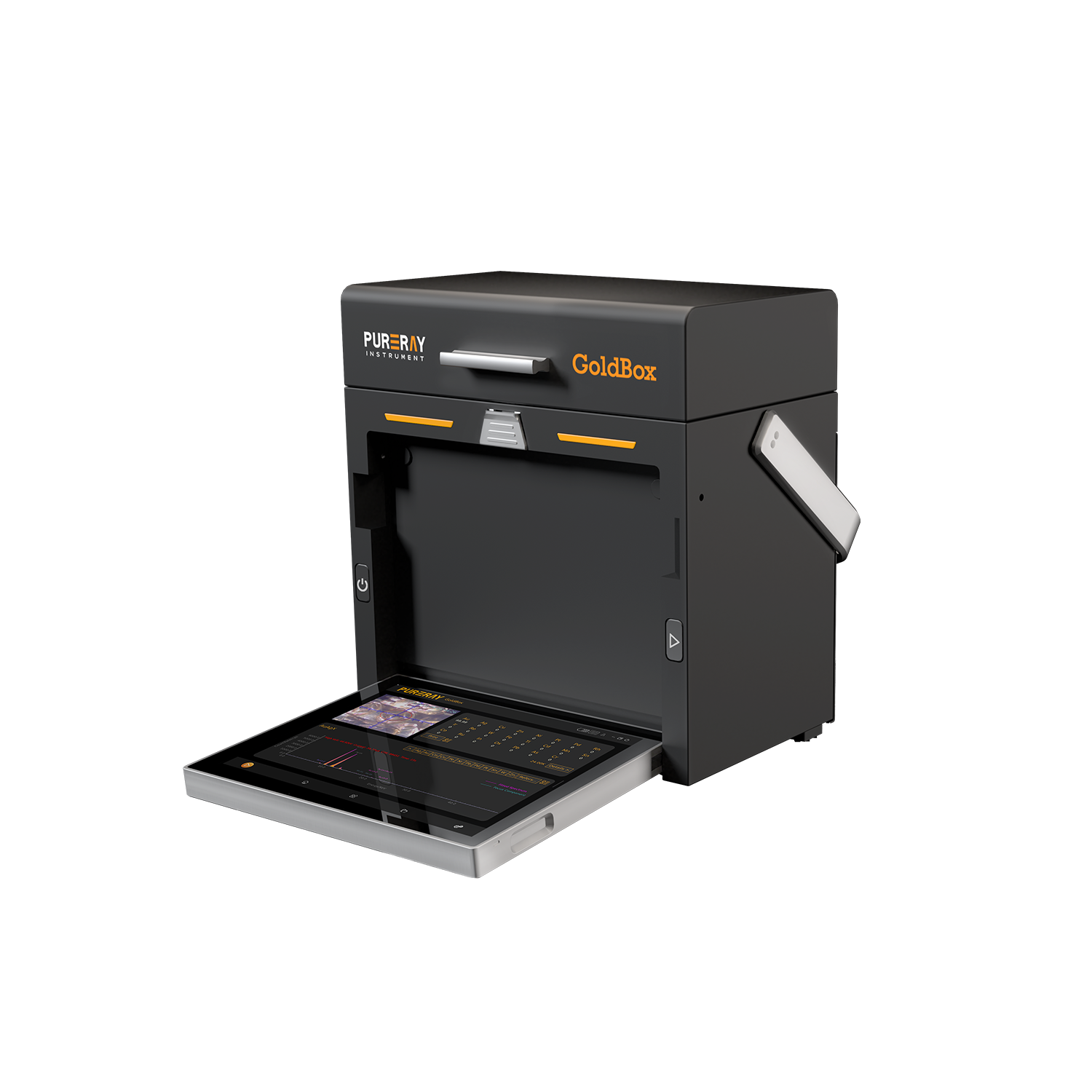

GoldBox is a portable precious metal analyzer launched by PURERAY Instrument in 2025. It meets on-site testing needs in various scenarios because it is easy to carry. The portable analyzer can be widely used in the precious metal industry. It features a USA AMPTEK customized Fast-SDD detector, an embedded computer and a touch display screen. The spectrometer offers fast and non-destructive analysis of metal elements.
| Detector | USA AMPTEK customized Fast-SDD | Collimator | Φ1.5mm |
|---|---|---|---|
| Detector area: 25mm2 | Power supply | Battery-powered, USB Type-C PD charging | |
| Resolution: 125±5eV | Package size | 277*172*337mm | |
| Embedded computer | ARM 4-core A76+ ARM 4-core A55 | Test chamber size | 263*139*58mm |
| HV power supply | 50KV/100uA/5W | Rated power | <30W |
Window material: beryllium | Net weight | 6KG | |
| Target material: wolfram | Noise | 65dB | |
| Focus: Φ1.0mm |
