Lifetime free upgrades | Quick response service
Analysis elements: K(No.19) ~U(No.92)
Analyzed up to 30 elements at the same time.
Coating warning
Rhenium and tungsten detection warning
Test Sample: metal/liquid
Analysis range:
Precious metal: 0.010%~99.999%
Liquid: 10mg/L~200g/L
Precision:
Precious metals: ±0.03% (9999 gold)
Liquid: RSD≤2.5%
Support the multi-point continuous test with high efficiency.
Connect the scale for weight readings and calculate prices.
Automatically calculate the average value and RSD of multi-results.
Visible samples with lead glass

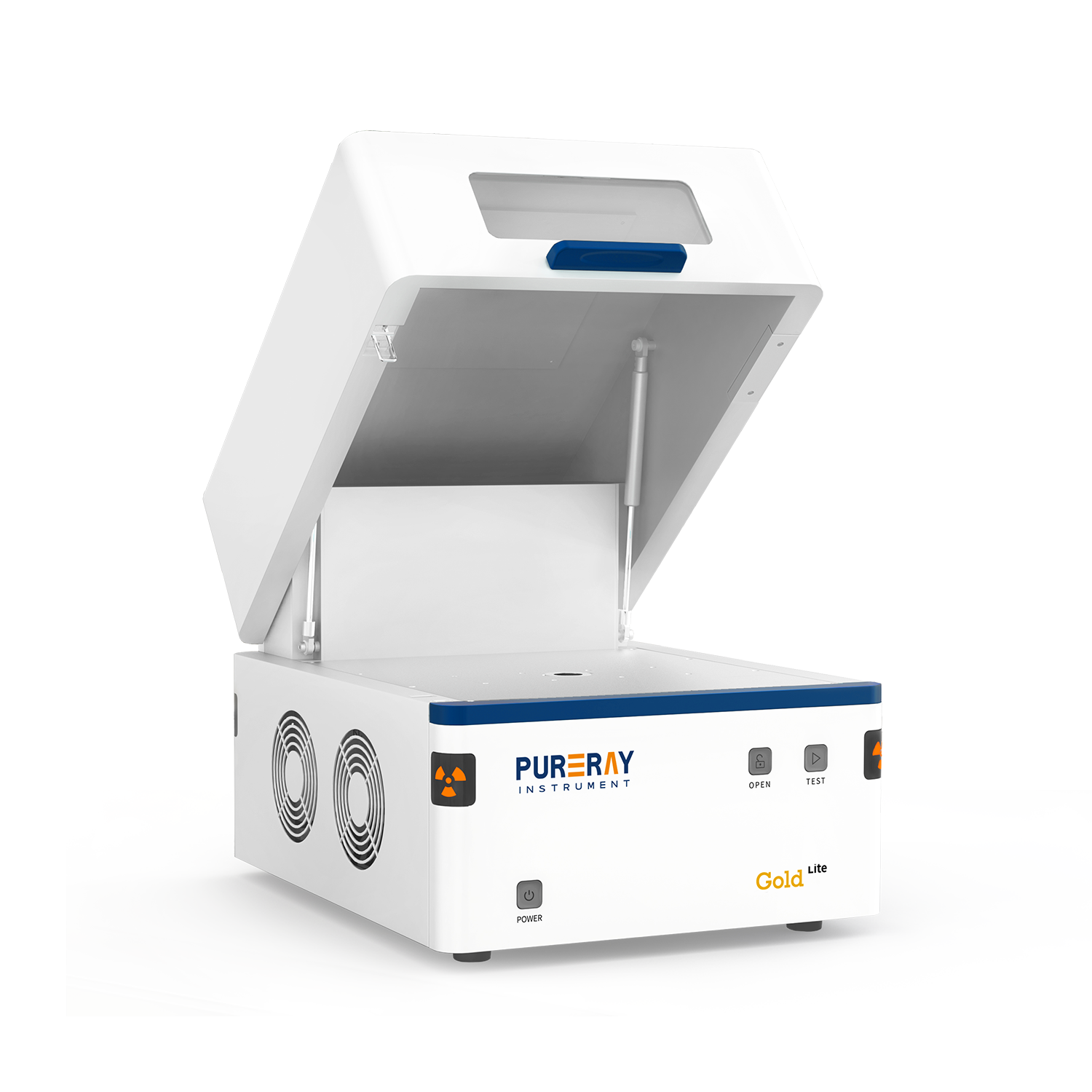

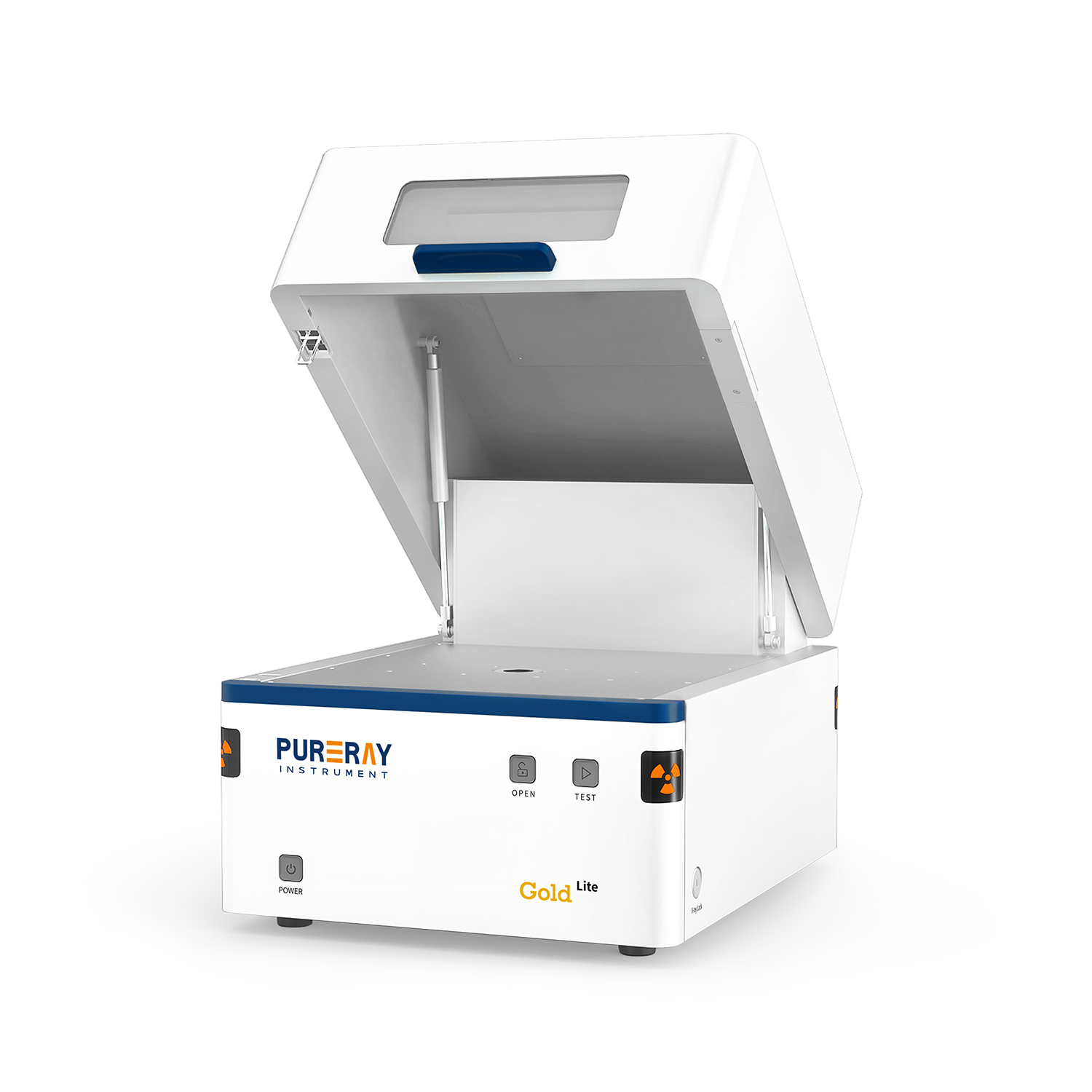

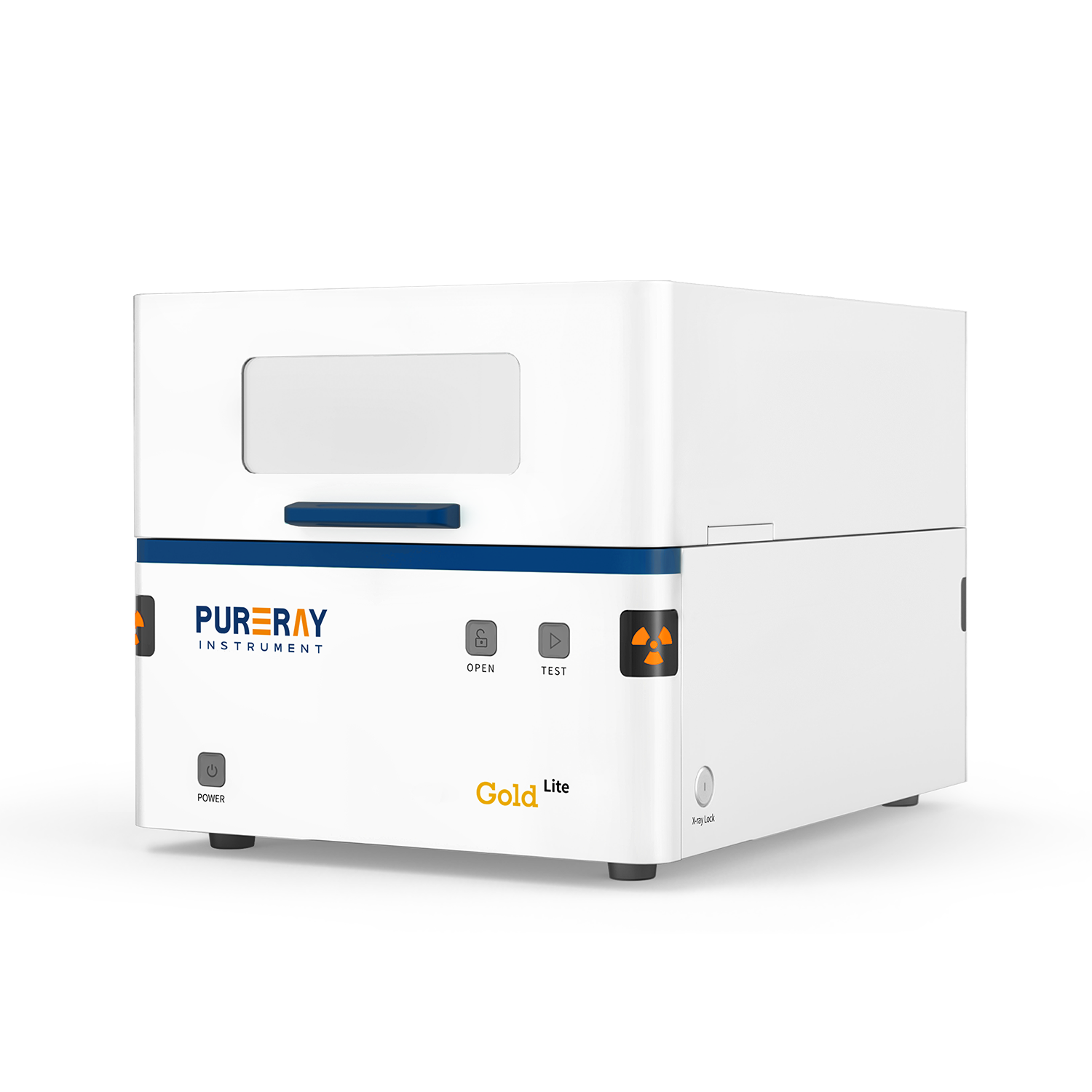

GoldLite is an X-ray fluorescence spectrometer developed by PURERAY Instrument with an upgraded optical path. It can be widely used in the precious metal industry. The analyzer features an USA AMPTEK customized Si-PIN detector, an embedded computer with a 10-core CPU and the Smart FP algorithm. Besides, it adopts the creative vertical optical path to obtain a smaller real focus. The cost-effective instrument can fast and accurately analyze precious metals and ion concentrations.
| Detector | USA AMPTEK customized Si-PIN | Collimator | Φ2.0mm |
|---|---|---|---|
| Detector area: 6mm2 | Input Voltage | AC100～240V，50Hz | |
| Resolution: 145±5eV | Package size | 625*560*480mm | |
| Embedded computer | Intel i3 10-core | Machine size | 460*522*368mm |
| HV power supply | 50KV/1mA digital HV | Test chamber size | 374*344*155mm |
| X-ray tube | 50KV/1mA | Rated power | 150W |
| Window material: aluminium | Gross weight | 57KG | |
| Target material: wolfram | Net weight | 42KG | |
| Focus: Φ0.3mm | Noise | ＜65dB |
